TEIN MONO RACING Coilovers 1989-1994 NISSAN 240SX S13 2400 FR

MONO RACING is developed to satisfy the drivers who frequently take their cars for a spin at the race tracks. Based on the settings of the high-end model SUPER RACING and on a wealth of data gained through participation in various motorsports, spring rates and damping force for MONO RACING are determined to be most suitable for sports driving.

Setting Capabilities Dedicated for Sports Use
Camber / Caster Adjustable Pillow Ball Upper Mounts
Camber Adjustable Lower Bracket
Selectable Spring Rate
Damping Force Customize System
Mono-Tube
Full-length Adjustable
ADVANCE M.S.V.
Damping Force Adjustable
EDFC Compatible
Durable & Reliable

ADDITIONAL INFORMATION

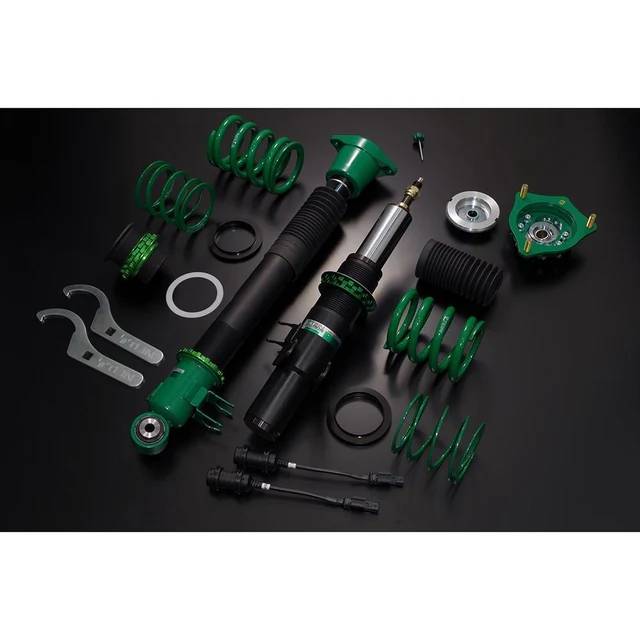

Image is only a representation of coilovers. TEIN doesn't have vehicle specific images. Your coilovers will be specific to your vehicle.

PRODUCT: MONO RACING
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT: Y
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
FRONT UPPER MOUNT: CAMBER CASTER ADJ
FRONT RECOMMENDED RIDE HEIGHT (mm): -55
FRONT RECOMMENDED RIDE HEIGHT (inch): -2.2
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -93
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3.7
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -23
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -0.9
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -65
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2.6
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -45
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.8
FRONT SPRING RATE (kgf/mm): 12
FRONT SPRING RATE (lbs/in): 672
FRONT SPRING SP PART#: RS120-E1150
FRONT SPRING FREE LENGTH (mm): 150
FRONT SPRING I.D. (mm): ID65
REAR DAMPING FORCE ADJUSTMENT: Y
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
REAR UPPER MOUNT: R/U
REAR RECOMMENDED RIDE HEIGHT (mm): -50
REAR RECOMMENDED RIDE HEIGHT (inch): -2
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -97
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3.8
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -4
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -0.2
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -60
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2.4
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -40
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.6
REAR SPRING RATE (kgf/mm): 10
REAR SPRING RATE (lbs/in): 560
REAR SPRING SP PART#: RS100-E1175
REAR SPRING FREE LENGTH (mm): 175
REAR SPRING I.D. (mm): ID65
EDFC COMPATIBILITY: COMPATIBLE
EDFC FITTING DETAIL: FT: BONNET/HOOD INSULATOR NEEDS TO BE CUT OR REMOVED. RR: BODY PANEL MIGHT NEED TO BE MODIFIED (BENT), IF CLEARANCE BETWEEN MOTOR AND BODY PANEL IS INSUFFICIENT. INTERIOR NEEDS TO BE CUT OR REMOVED.
EDFC MOTOR KIT 1: EDK05-12140
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT: EDK06-K4474
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: CAMBER ADJUSTMENT WASHERS WITH DIFFERENT OFFSETS ARE AVAILABLE (SOLD SEPARATELY). FROM THE POSITIVE ANGLE SET WITH THE INCLUDED WASHERS, REPLACE THE WASHERS WITH OPTIONAL WASHERS SPS12-R16110-25 TO SET THE ANGLE FURTHER POSITIVE, AND WITH SPS12-R16110-05 TO SET TO NEGATIVE DIRECTION (BOTH SOLD SEPARATELY). FROM THE NEGATIVE ANGLE SET WITH THE INCLUDED WASHERS, REPLACE THE WASHERS WITH OPTIONAL WASHERS SPS12-R16110-05 TO SET THE ANGLE FURTHER NEGATIVE, AND WITH SPS12-R16110-25 TO SET TO POSITIVE DIRECTION (BOTH SOLD SEPARATELY).

FITMENT NOTES

MAKE: NISSAN
MODEL: 240SX
YEAR: 1989-1994
CHASSIS: S13
TRIM:
MOTOR SIZE: 2400
DRIVETRAIN: FR
