TEIN MONO SPORT Coilovers 2015-2021 SUBARU WRX STI VAF STI 2500 4WD

The main concept of MONO SPORT is to provide driving pleasures to all drivers. All the different needs and demands are carefully analyzed to come up with the most suitable settings for each and every vehicle models.

Full-Length Ride Height Adjustment Feature
Mono-Tube Structure
Damping Force Adjustment System
Complete Kit with Upper Mount
1-Full-Car-Kit
Ride Height Adjustment with Little or No Change in Ride Quality
Mono-Tube System to Robustly Convey the Information from Road Surface
16-level Linear Damping Force Adjustment System
Exclusively Designed Upper Mounts are Included (Except Some Models)
Complete Suspension Kit of 4 Shock Absorbers & 4 Springs

ADDITIONAL INFORMATION

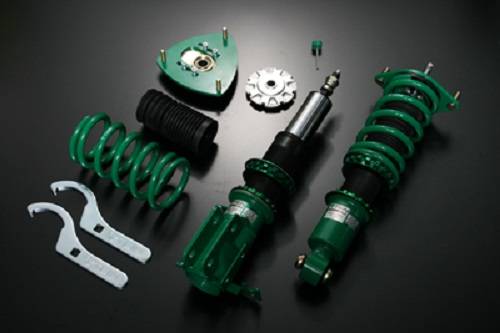

Image is only a representation of coilovers. TEIN doesn't have vehicle specific images. Your coilovers will be specific to your vehicle.

PRODUCT: MONO SPORT
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT: Y
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
FRONT UPPER MOUNT: CAMBER ADJ
FRONT RECOMMENDED RIDE HEIGHT (mm): -30
FRONT RECOMMENDED RIDE HEIGHT (inch): -1.2
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -77
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 3
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0.1
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -40
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -1.6
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -20
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -0.8
FRONT SPRING RATE (kgf/mm): 10
FRONT SPRING RATE (lbs/in): 560
FRONT SPRING SP PART#: SQ100-01175
FRONT SPRING FREE LENGTH (mm): 175
FRONT SPRING I.D. (mm): ID65
REAR DAMPING FORCE ADJUSTMENT: Y
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
REAR UPPER MOUNT: P/U
REAR RECOMMENDED RIDE HEIGHT (mm): -25
REAR RECOMMENDED RIDE HEIGHT (inch): -1
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -90
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3.5
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 14
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0.6
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -35
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -1.4
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -15
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -0.6
REAR SPRING RATE (kgf/mm): 10
REAR SPRING RATE (lbs/in): 560
REAR SPRING SP PART#: SQ100-01175
REAR SPRING FREE LENGTH (mm): 175
REAR SPRING I.D. (mm): ID65
EDFC COMPATIBILITY: COMPATIBLE
EDFC FITTING DETAIL:
EDFC MOTOR KIT 1: EDK05-12140
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT: EDK06-K4474
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: RR: INTERIOR NEEDS TO BE CUT OR REMOVED, TO AVOID INTERFERENCE.

FITMENT NOTES

MAKE: SUBARU
MODEL: WRX STI
YEAR: 2015-2021
CHASSIS: VAF
TRIM: STI
MOTOR SIZE: 2500
DRIVETRAIN: 4WD
