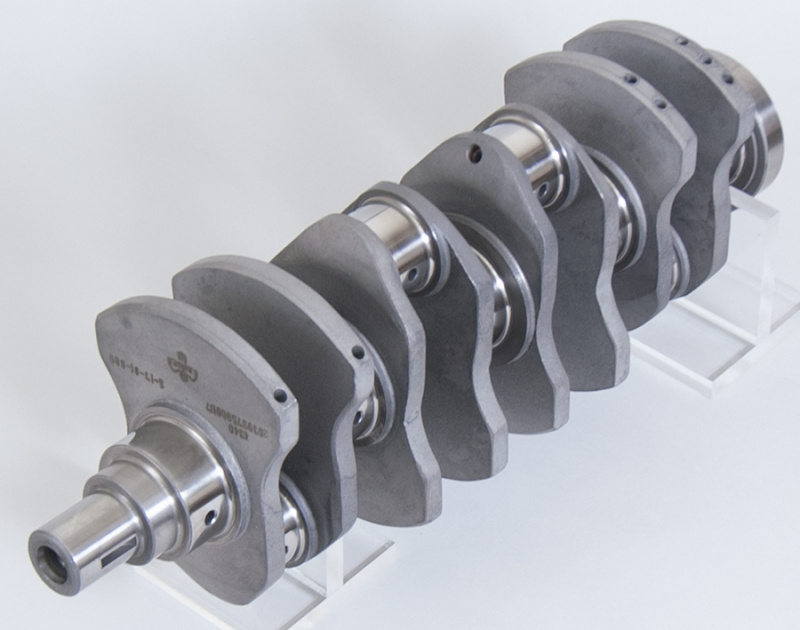

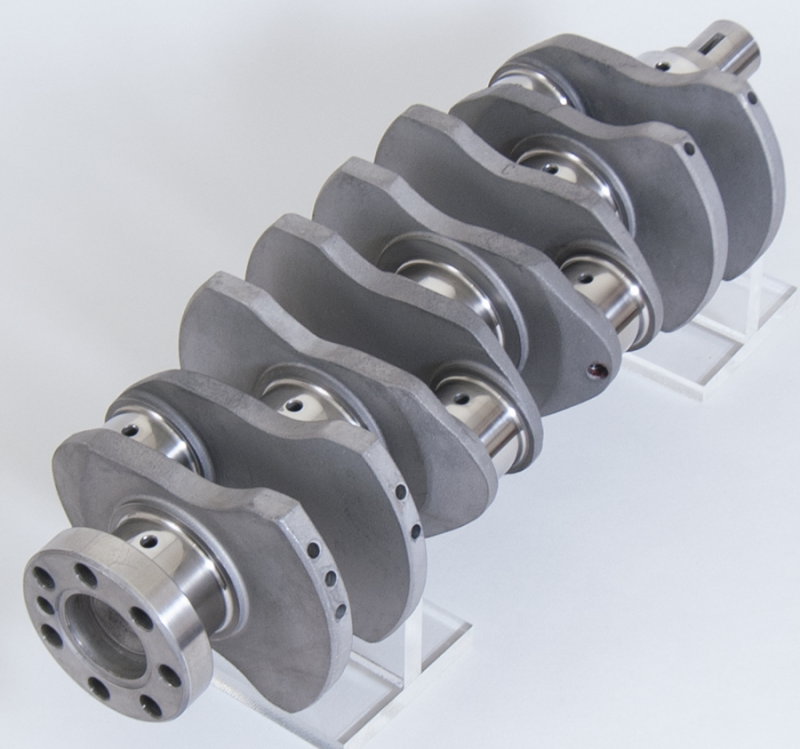

Eagle 4G63 Stroker 100mm Crankshaft For 7-Bolt (Evo)

Forged 4340 Steel Crank - MITSUBISHI 4G63, 3.937" Stroke, 7 BOLT REAR FLANGE.

Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.

Service: Eagle connecting rods and cranks are designed and manufactured to our specifications. Some simply purchase generic products and package in their boxes without having any control or input in production. Eagle uses only certified steel in production of their steel cranks and rods. No shortcuts are taken that might compromise the quality of the finished piece. We use multi-stage heat treating, sonic testing, magna-fluxing, and x-ray to ensure a reliable product. While Eagle may not be the least expensive
.125" fillet radiuses for improved strength and rigidity. Chamfered or narrowed bearings must be used!

ADDITIONAL INFORMATION

Eagle 4G63 Stroker 100mm Crankshaft For 7-Bolt (Evo)

Balance Type: Internal
Crankshaft Stroke: 3.937 in
Engine Stroke: 3.937 IN
Flywheel Bolt Count: 7
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.244 in
Material: Forged 4340 Steel
Minimum Rod Length: 5.900 in
Pilot Bore Diameter: call
Prop 65 (C, R or CR): C
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 Long: This product contains nickel, which is known to the State of California to cause cancer.
Prop 65 Yes/No: Yes
Rear Seal Diameter: call
Rod Journal: 1.771 in
Rod Journal Width: 1.05 in
Snout Diameter: 1.26 in
Title: ESP 4340 CRANK MITSUBISHI 100MM
Associated Comments: 7 bolt flange.; Crankshaft must be balanced to match your specific Rods and pistons.

FITMENT NOTES

None
