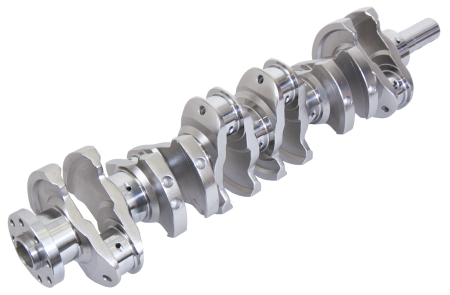

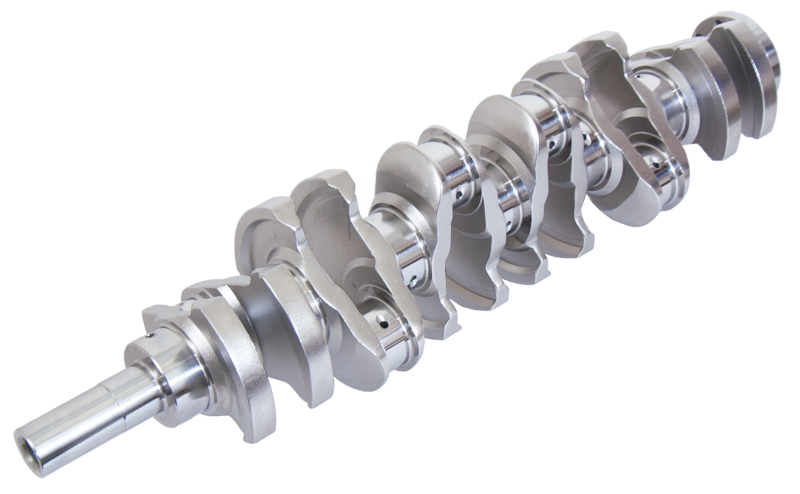

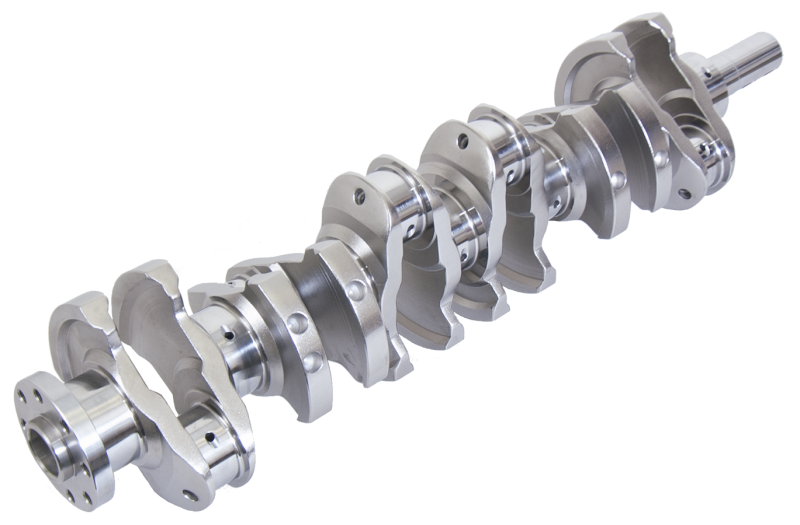

Eagle Toyota 2JZ 4340 Billet Crankshaft

Billet 4340 Steel Crank - TOYOTA 2JZ, 3.701" Stroke.

Eagle Billet 4340 steel crankshafts feature .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished.

Service: Eagle connecting rods and cranks are designed and manufactured to our specifications. Some simply purchase generic products and package in their boxes without having any control or input in production. Eagle uses only certified steel in production of their steel cranks and rods. No shortcuts are taken that might compromise the quality of the finished piece. We use multi-stage heat treating, sonic testing, magna-fluxing, and x-ray to ensure a reliable product. While Eagle may not be the least expensive
.125" fillet radiuses for improved strength and rigidity. Chamfered or narrowed bearings must be used!

ADDITIONAL INFORMATION

Eagle Toyota 2JZ 4340 Billet Crankshaft

Balance Type: Internal
Crankshaft Stroke: 3.700 in
Engine Stroke: 3.7 IN
Flywheel Bolt Count: 8
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.441 in
Material: Billet 4340 Steel
Minimum Rod Length: 5.590 in
Pilot Bore Diameter: call
Prop 65 (C, R or CR): C
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 Long: This product contains nickel, which is known to the State of California to cause cancer.
Prop 65 Yes/No: Yes
Rear Seal Diameter: call
Rod Journal: 2.047 in
Rod Journal Width: 1.035 in
Snout Diameter: call
Title: ESP BILLET 4340 STEEL Toyota 2JZ 94MM STROKE
Associated Comments: Use with 5.590" rods and pistons with 1.181" pin height.; Use with 1.181" pin height pistons.; Crankshaft must be balanced to match your specific Rods and pistons.

FITMENT NOTES

None
