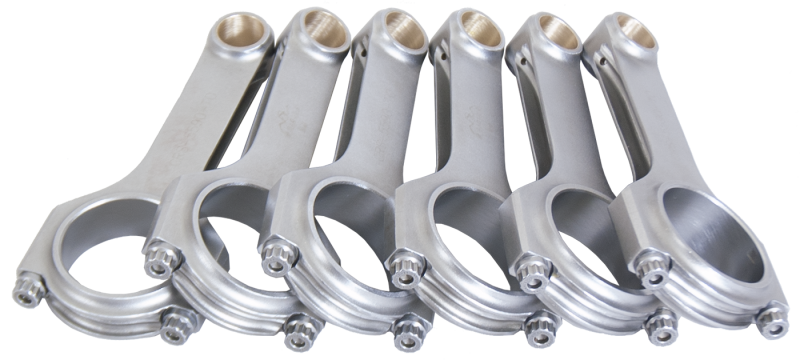

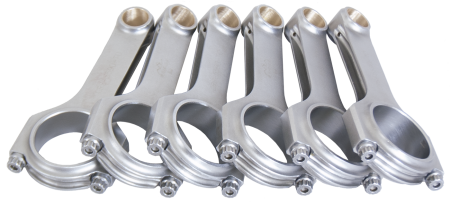

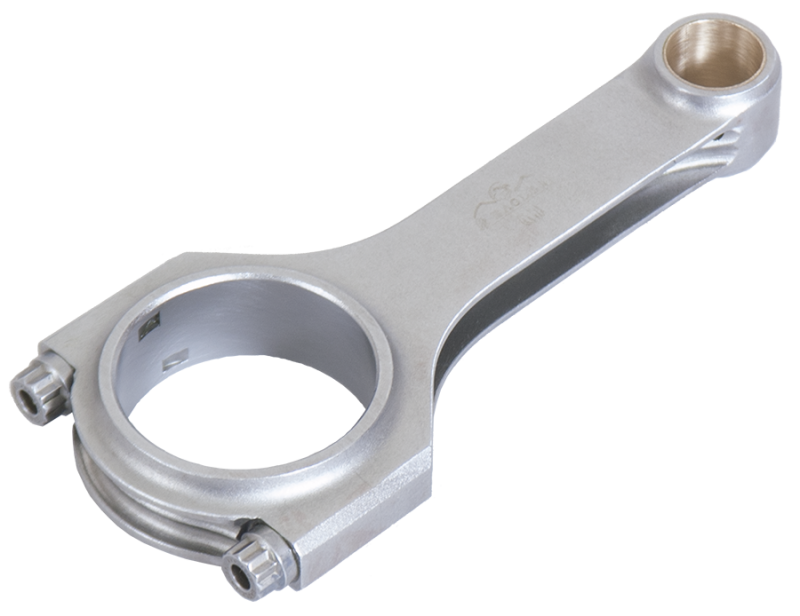

Eagle Toyota 2JZGTE Engine Connecting Rods (Set of 6)

Forged 4340 Steel H-Beam Rods - TOYOTA 2JZ.

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.

Service: Eagle connecting rods and cranks are designed and manufactured to our specifications. Some simply purchase generic products and package in their boxes without having any control or input in production. Eagle uses only certified steel in production of their steel cranks and rods. No shortcuts are taken that might compromise the quality of the finished piece. We use multi-stage heat treating, sonic testing, magna-fluxing, and x-ray to ensure a reliable product. While Eagle may not be the least expensive
ARP 8740 capscrew rod bolts for proven reliability.

ADDITIONAL INFORMATION

Eagle Toyota 2JZGTE Engine Connecting Rods (Set of 6)

Big End Width: 1.02 in
Bolts: 3/8 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.59 in
Housing Bore: 2.1667 in
Length Center Bore To Center Bore: 142 MM
Material: Forged 4340 Steel
Pin End Width: 1.02 in
Pin Size: 0.866 in
Prop 65 (C, R or CR): C
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 Long: This product contains nickel, which is known to the State of California to cause cancer.
Prop 65 Yes/No: Yes
Rod Journal: 2.047 in
Title: ESP 4340 H-Beam Rod TOYOTA 2JZGTE 6
Associated Comments: Torque to 43 ft-lbs, ARP moly lube ONLY.

FITMENT NOTES

None
