Mishimoto Universal Gold R Line Intercooler Overall Size: 31x12x4 Core Size: 24x12x4 Inlet / Outlet

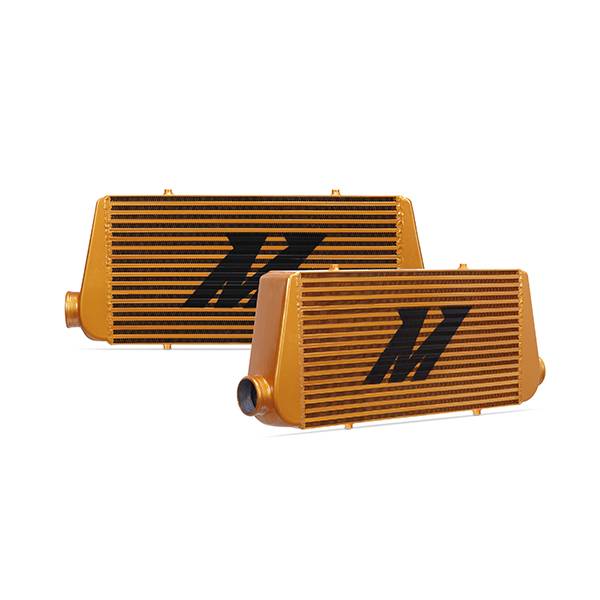

Mishimoto Universal Intercooler R-Line Gold

The Mishimoto R-Line intercooler provides the perfect cooling capacity needed for supercharged and turbo charged vehicles. Constructed of 6061 aircraft-quality aluminum for extreme durability the Mishimoto R-Line intercooler will efficiently reduce induction air temperatures while significantly improving engine output. Mishimoto front-mount intercoolers are precision TIG welded offering an enhanced level of performance. The R-Line intercooler will provide the ideal cooling capacity while safely increasing horsepower and giving that extra boost that every driver appreciates. Note: For your taste only one side of the intercooler has the Mishimoto logo.

Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
Robust one-piece cast aluminum end tanks withstand high boost pressures
Large 3" thick core and 3" inlet/outlet provides optimal flow and volume for high horsepower vehicles
Universal mounting points
constructed with 6061 aluminum
Mishimoto Lifetime Warranty

ADDITIONAL INFORMATION

Install Difficulty: 3
OptionLabel: Gold
SellingPoint01: Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
SellingPoint02: Robust, one-piece cast aluminum end tanks withstand high boost pressures
SellingPoint03: Massive 4-in thick core and 3-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
SellingPoint04: Mishimoto Lifetime Warranty
SellingPoint05: N/A
SellingPoint06: N/A
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 12
TechSpec Core Length (in): 24
TechSpec Core Thickness (in): 4
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: N/A
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 3
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 32
TechSpec Maximum Recommended Horsepower: 800
TechSpec Note: N/A
TechSpec Outlet (in): 3
TechSpec Overall Height (in): 12
TechSpec Overall Length (in): 31
TechSpec Overall Width (in): 4
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

None
