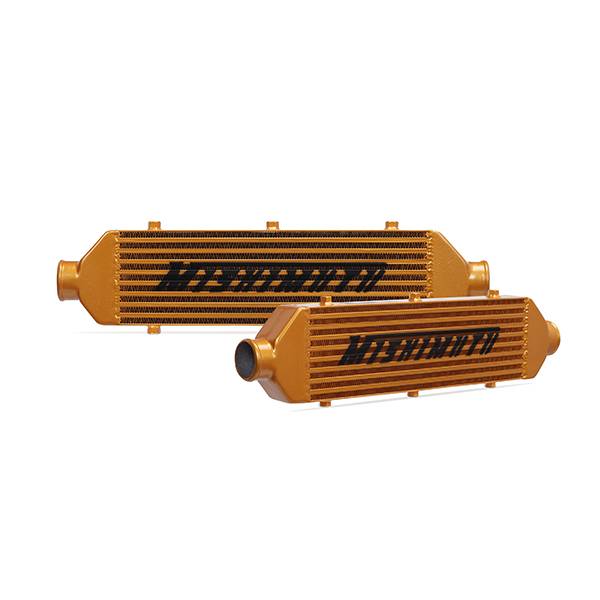

Mishimoto Universal Gold Z Line Intercooler Overall Size: 28x8x3 Core Size: 21x6x2.5 Inlet / Outlet

Mishimoto Universal Intercooler Z-Line Gold

Sleek and stylish this universal front-mount intercooler will provide the perfect cooling capacity needed for larger turbo applications. All Mishimoto intercoolers are constructed of 6061 aluminum and are TIG welded to perfection. Note: For your taste only one side of the intercooler has the Mishimoto logo.

Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
Robust one-piece cast aluminum end tanks withstand high boost pressures
Four M8 x 1.25 threaded universal mounting points constructed with 6061 aluminum
Tig welded to perfection
Mishimoto Lifetime Warranty

ADDITIONAL INFORMATION

Install Difficulty: 3
OptionLabel: Gold
SellingPoint01: All-aluminum construction with bar-and-plate core
SellingPoint02: TIG-welded end tanks for increased strength and durability
SellingPoint03: 6 threaded mounting points for universal fitment
SellingPoint04: Rated to 22 PSI
SellingPoint05: Available in Sleek Silver, Stealth Black, or Bold Gold
SellingPoint06: Mishimoto Lifetime Warranty
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 6.25
TechSpec Core Length (in): 20.5
TechSpec Core Thickness (in): 2.5
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: N/A
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.5
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 22
TechSpec Maximum Recommended Horsepower: 500
TechSpec Note: N/A
TechSpec Outlet (in): 2.5
TechSpec Overall Height (in): 7.5
TechSpec Overall Length (in): 28
TechSpec Overall Width (in): 2.5
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

None
