Mishimoto 2021+ BMW G80 M3/M4 Performance Intercooler - Black

Performance Charge Air Cooler Manifold Fits BMW G8X M2/M3/M4 2021+

The S58 under the hood of the 2021+ G80 M3 has over 45 years of lineage behind it and it shows in nearly three-second 0-60 times and over 500 horsepower. But like every generation before it the G80 M3 has the potential to be even more powerful. Bolt-on mods big turbos and tunes can push the S58 over the 800 HP mark but that much power requires serious cooling. Luckily Mishimoto has developed a charge air cooler manifold suited for serious power.----The stock G80 M3 charge air cooler is�fine. The combination intercooler/intake manifold design is efficient but it's let down by the tube-and-fin core crimped onto the thermoplastic plenum. Those crimps are quickly becoming a notorious weak point with many failing at as little as 3 lbs. of boost over stock. The solution is Mishimoto's cast aluminum and TIG-welded manifold with a robust bar-and-plate core designed to withstand boost pressures over 60 PSI without breaking a sweat.----Reliability aside the Mishimoto charge air cooler's performance possibilities are nearly endless. Our core is 33 percent larger than stock and the manifold flows an average of 14-percent better to each cylinder. That combined with the increased cooling capacity of the bar-and-plate core results in reduced pressure drop and intake air temps as low as 11-degrees above ambient under heavy load. Our CFD-designed lower plenum also features an internal diverter to ensure the entire core is utilized and each cylinder receives even flow for safe and optimal fueling. The cast and CNC-machined runners feature O-ring grooves to accept factory seals and we've included a fiber gasket that insulates the runners from engine heat for those seeking every degree of cooling.; ----Insane power levels require equally insane amounts of fuel so we've added provisions for port fuel injection including a billet fuel rail and anodized aluminum injector blanks to cap the injector ports when not in use. Our precision-machined injector ports feature optimized geometry for the perfect mixing of air and fuel with no drilling required. The included PTFE -AN fuel lines and fittings are suitable for ethanol and tee into the stock fuel lines. Additionally six nitrous ports accept 1/8 or 1/16-NPT nozzles and can be capped off when not in use.----If cooling flow and reliability weren't enough we also designed our charge air cooler to fit like stock. This kit includes brackets to keep your wiring tidy a mount to fit the stock engine cover and custom EVAP lines for a seamless installation. A convenient cutout in the plenum allows for easy access to the oil filter without affecting flow. Like all Mishimoto products this performance charge air cooler for the 2021+ BMW G80 M3 is backed by our Mishimoto Lifetime Warranty for a lifetime of exceptional performance. So if you want the ultimate upgrade to squeeze serious power from your S58 engine this Mishimoto charge air cooler manifold is for you.

ADDITIONAL INFORMATION

Install Difficulty: 4
SellingPoint01: Direct fit for 2021+ G8X BMW M2/M3/M4
SellingPoint02: Bar-and-plate core TIG welded to cast-aluminum manifold withstands over 60 PSI of boost
SellingPoint03: Includes billet fuel rail, lines, and precision-drilled ports for port injection
SellingPoint04: Nitrous ready with easily accessible 1/8-NPT or 1/16-NPT nozzle adapters and caps
SellingPoint05: Includes PTFE -AN fuel lines that tee into stock fuel lines
SellingPoint06: Robust bar-and-plate core for IATs as low as 11-degrees above ambient
SellingPoint07: Improves flow to each cylinder by an average of 14-percent
SellingPoint08: Improves cooling without increasing pressure drop over stock
SellingPoint09: 33-percent core volume increase over stock with a 24-percent greater flow area
SellingPoint10: CFD-designed lower plenum for even flow distribution and safe fueling
SellingPoint11: Cast and CNC-machined runners accept stock O-rings or included fiber gasket
SellingPoint12: Includes harness brackets, engine cover mount, and custom EVAP lines for seamless install

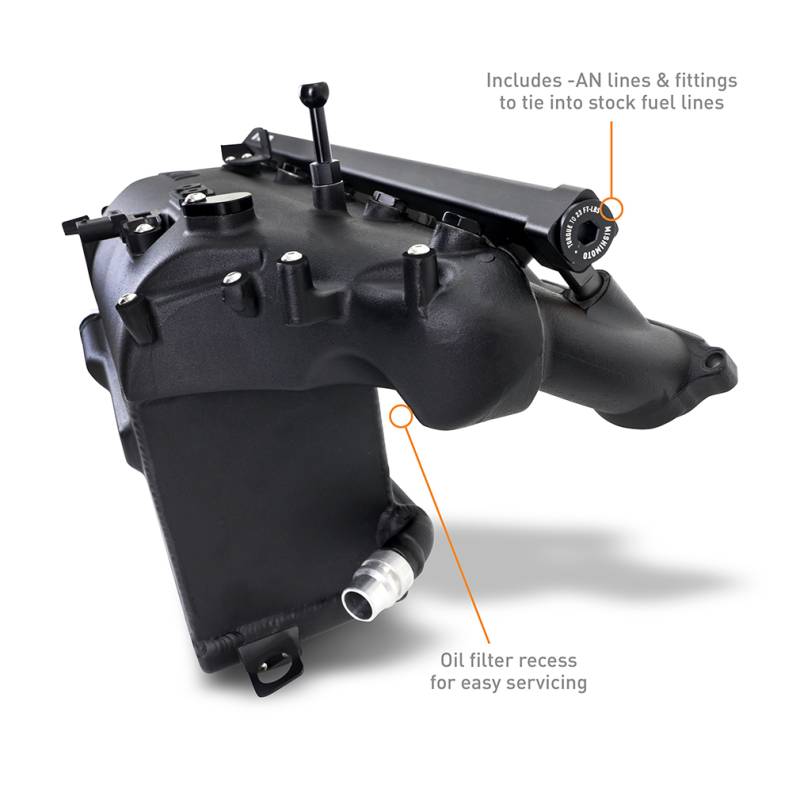

SellingPoint13: Plenum cutout allows easy access to oil filter without impeding flow
SellingPoint14: Includes two additional 1/8-NPT ports for manifold reference lines or sensors
SellingPoint15: Also fits X3 M/X4 M models with included EVAP plug and fitting
SellingPoint16: Mishimoto Lifetime Warranty
TechSpec Applications: 2021+ BMW M3 I6 3.0L--2021+ BMW M4 I6 3.0L--2021+ BMW M3 Competition I6 3.0L--2021+ BMW M4 Competition I6 3.0L--2019+ BMW X3 M I6 3.0L--2019+ BMW X4 M I6 3.0L--2019+ BMW X3 M Competition I6 3.0L--2019+ BMW X4 M Competition I6 3.0L
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: G80--G82--G83--G87--F97--F98
TechSpec Core Height (in): 6.3
TechSpec Core Length (in): 9.8
TechSpec Core Thickness (in): 4.9
TechSpec Core Type: Bar-And-Plate
TechSpec Engine Codes: S58B30

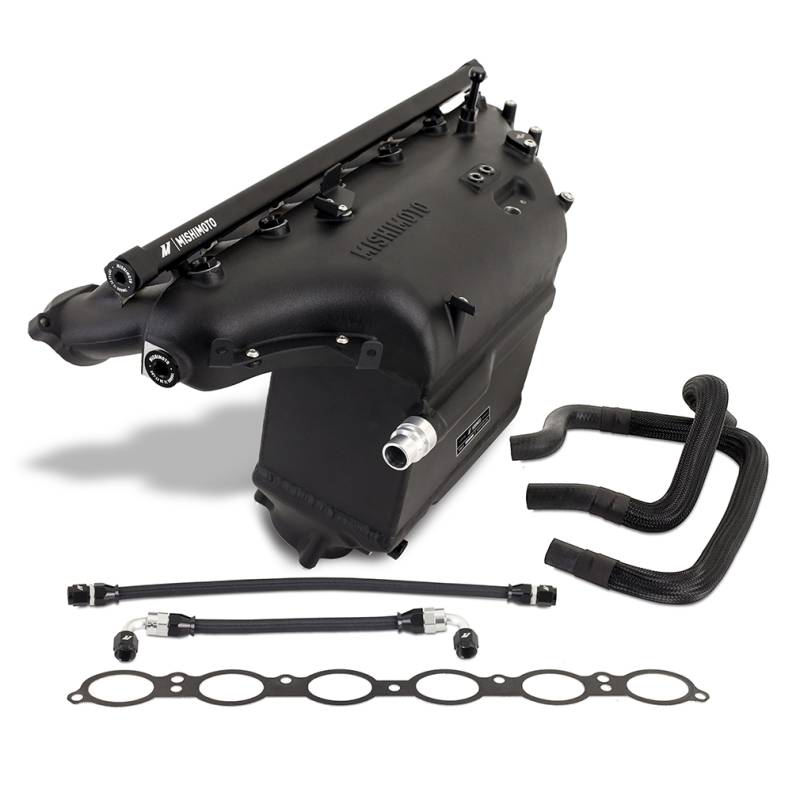

TechSpec Includes: (1) Mishimoto Charge Air Cooler Manifold--(1) Intake Manifold Gasket--(1) Manifold/Intercooler Accessory Bracket Set--(6) -6 ORB Plugs--(6) -6 ORB to 1/8-in NPT Adapters--(6) -6 ORB to 1/16-in NPT Adapters--(1) Fuel Rail--(6) Fuel Injector Blanks--(2) -8 ORB Plugs--(1) -10 ORB Plug--(2) 1/8-in NPT Plugs--(2) EVAP System Hoses--(1) Port Injection Fuel Line Kit--(1) Hardware Kit--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 60
TechSpec Maximum Recommended Horsepower: 1150
TechSpec Note: Use of the included fuel rail is optional and for race-use only. The fuel rail has a tamper-proof sticker and may be removed only if the vehicle will no longer be used on the street or highway. Check local emissions regulations before removing.
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 13.1
TechSpec Overall Length (in): 11.5
TechSpec Overall Width (in): 21
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

2020-2023 BMW X3
2020-2023 BMW X4
2021-2023 BMW M3
2021-2024 BMW M4
2023-2024 BMW M2
