CSF BMW F8X M3/M4/M2C Auxiliary Radiators w/ Rock Guards (Sold Individually - Fits Left and Right

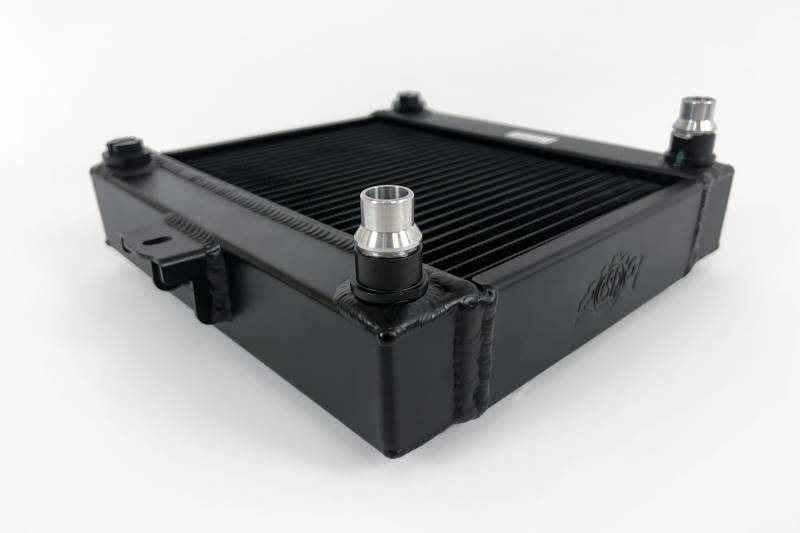

BMW F8X M3/M4/M2 Comp High-Performance Auxiliary Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your F8X M3/M4/M2 Comp. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

Like the other cooling systems on the F8X the factory auxiliary radiators do a pretty good job in stock form. However once you start adding a lot of power and pushing the car in aggressive driving conditions the factory systems start to show its limitations. As more and more owners have pushed the limits of their S55 CSF saw the need and demand. The F8X platform is also almost a decade old with the newest examples being at least 5 years old. Over time the original coolers end up with damaged or clogged fins that greatly reduce their cooling capacity.; CSF designed the coolers to be a true "Drop-in Fit" for easy installation. Each cooler mounts in the factory location and uses the OEM quick connections. The High-Performance Auxiliary Radiators work in conjunction with the rest of the cooling system to reduce temperatures. They not only help keep temperatures in optimal ranges but prolong the heat soak threshold. There's nothing worse than having your track session cut short because you need to do a cooldown lap.; Compared to the OEM F8X coolers the CSF units are a significant upgrade. CSF eliminated the OE plastic mounting pod by incorporating it into the modular design that fits both sides. This design improvement increases the size of both the core and tanks. The extra space taken from the mounting pod allowed for a 7% increase in Core Size and an 10% increase in Tank Volume. With a larger 2-row 42mm core cooling efficiency and capacity are drastically increased. The high efficiency core using CSF's Exclusive B-Tube Technology maximizes airflow and heat dissipation. 100% All-Aluminum construction ensures the best performance and durability. The mounting pins and brackets are much stronger and more durable than the OE plastic pod mounting system. In addition the black finish provides extra protection and offers a stealthy look behind the grilles of your F8X. In addition the CSF auxiliary radiators also feature integrated bolt on rock guards to keep the coolers safe. You've no doubt heard horror stories about OEM coolers getting punctured and spilling fluids all over the road or track. Now you can feel more confident that your cooling system is safer from road debris.

Sold Individually - all applications require 2 auxiliary radiators
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
100% All-Aluminum TIG-Welded Construction
OEM Style "Quick Connect" Inlet/Outlet
True "Drop-in Fit" Requires No Modifications to Install

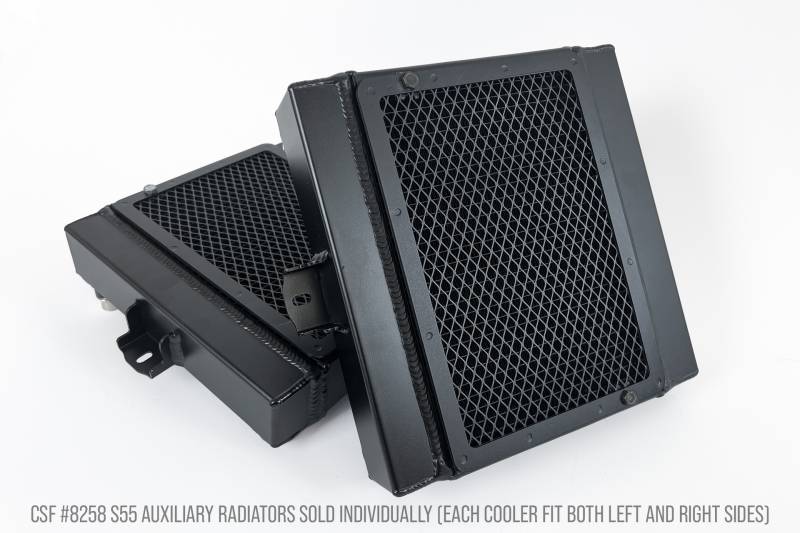

Includes Detachable Rock Guard
Individually Leak and Pressure Tested
High-Performance Upgrade Suitable for Professional Racing Street Performance or OEM Replacement
Satin Black Finish for OEM+ Look
2 Year Limited Warranty
Multi-Fit - Fits Both Left & Right Side
2-Row 42mm High-Performance Core Featuring CSF's B-Tube Technology
Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
Tank Volume increased by 10% and Core Size Increased by 6.4%

ADDITIONAL INFORMATION

ADD-ON: 8081
Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 177mm
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 42mm
Core Width: 236mm
Down Flow Or Cross Flow Type: Down Flow
Finish/Color: Black
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Quick Connect
Inlet Diameter: 16.3mm
Inlet Location: Top
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Quick Connect
Outlet Diameter: 16.3mm
Outlet Location: Bottom
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No
Title: BMW F8X M3/M4/M2 Comp High-Performance Auxiliary Radiator

Associated Comments: The CSF #8258 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2015-2018 BMW M3
2015-2020 BMW M4
2019-2021 BMW M2
