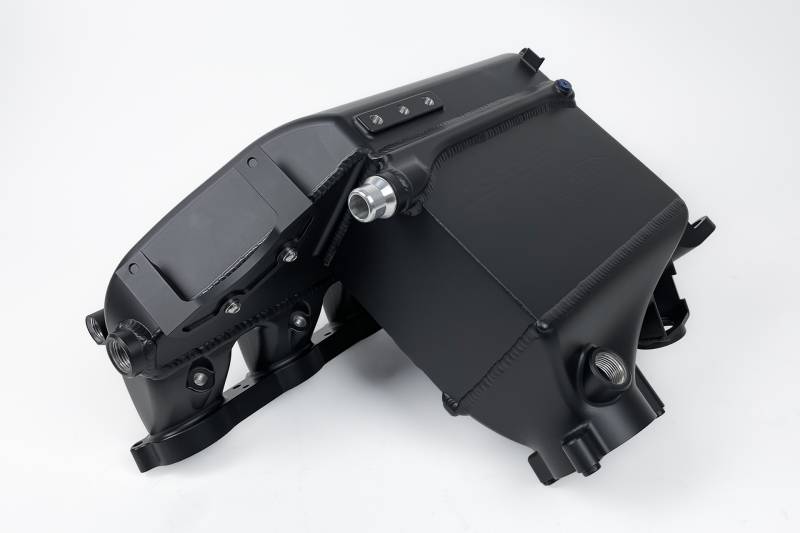

CSF BMW M2/M3/M4 S58 Comp & Non-Comp (G8X) Charge-Air Cooler Manifold - Thermal Dispersion Black

BMW S58 "Level-Up" Charge Air Cooler Manifold - Thermal Dispersion Black

With the larger and more efficient intercooler performance, lower pressure drop, included fuel rail & kit for top feed port injection, and other industry-leading features, the CSF Level-Up Manifold allows S58 owners to maximize performance.

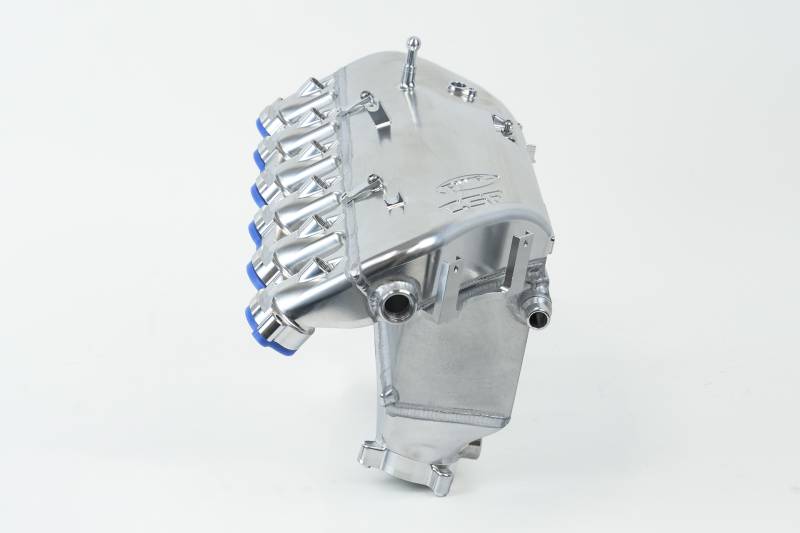

CSF worked closely with its strategic manufacturing partner PWR and Local R&D Partner Studio RSR on the development of the "Level-Up" Charge-Air-Cooler Manifold. The relationship with PWR offers CSF access to exclusive cutting edge Formula 1 grade technology while Studio RSR offers expertise in real world race experience and hands-on mechanical knowledge of the S58 platform. The manifold is made from the highest grade billet aluminum. Each part is CNC machined with the highest precision and TIG welded to form a single piece charge-air-cooler intake manifold. The CSF manifold is capable of achieving the highest levels of performance and withstanding extreme boost levels. The ultra high performance liquid-to-air F1 grade core is made by PWR. This Bar & Plate core is pressure tested to 120 psi to ensure it will withstand the high boost levels motorsports race teams can throw at it. Feedback from the community has shown the OEM core (crimped onto plastic end tanks) is prone to failure starting at just 27 pounds (psi) of boost pressure.; Adding power always requires more fuel so the CSF Manifold features a top feed port injection system. The intake runners have the injector bungs machined directly into them and the kit includes both the Fuel Rail and CNC Machined Block-Off Caps for non-use. In addition the manifold also has integrated ports on each runner for Nitrous or Methanol Injection. Individual ports for each runner allows for maximum control and tuning. The included Thermal Rejection Manifold Spacer is made from KIYLEX a revolutionary polymer that is as strong as aluminum and withstands temps up to 1100'F. The spacer insulates the manifold from conductive heat transfer from the cylinder head. This reduces manifold temps which helps lower Intake Air Temps (IATs) improves efficiency and combats heat soak.; The CSF #8233B comes in a Thermal Black Heat Dispersion finish. Also available in raw billet aluminum (CSF #8233) & in custom colors/finishes (CSF #8233C).

Reduced Intake Air Temperatures (IATs) compared to OEM
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Removable machined engine cover pin for perfect fitment with engine cover
Thermal Black Heat Dispersion Powder-Coating Finish
Less pressure drop compared to OEM core
All necessary brackets hardware and instructions to install
Ultra strong CNC Billet construction replaces weak plastic tanks with crimped-on gasket sealing core
High performance bar/plate intercooler core by PWR pressure tested to 120psi
KYLEX thermal spacer for the best resistance to heat soak of the manifold.
Perimeter pad machined into top of intake manifold for up to 3 additional sensors
Rear of the intake manifold has been clearance for easy access to the engine oil filter
CNC front wire harness bracket for OEM fitment and slotted easy installation
Integrated port injection with fuel rail (provided with block-off bungs if not running port injection)
Upper crank case ventilation adapter and Lower crank case ventilation adapter
Integrated nitrous ports (provided with block-off bungs if not running nitrous)
Integrated hose stand-offs for proper routing of EVAP hoses across manifold
Integrated coolant reservoir mounting locations on rear of manifold for perfect fitment
Various wire harness provisions for perfect routing of wiring harness around manifold
Integrated bleeder screw
OEM teeth on intake manifold flange for secure seating of gaskets
Machined coolant hose quick connects

ADDITIONAL INFORMATION

ADD-ON: 8266
Color: Thermal Black Heat Dispersion Cerakote
Core Color: Raw Aluminum
Core Material: Aluminum
Core Row Quantity: 1
Grade Type: Performance
Inlet Fitting Gender: Male
Inlet Tank Material: Billet Aluminum
Installation Type: Drop-In Fit Installation
Mounting Hardware Included: Yes
Outlet Fitting Gender: Male
Prop 65 Yes/No: No
Title: BMW S58 -Level-Up- Charge Air Cooler Manifold - Thermal Dispersion Black
Type: Air-to-Water
Universal Or Specific Fit: Specific

Associated Comments: The CSF #8233B Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2020-2024 BMW X3
2020-2024 BMW X4
2021-2024 BMW M3
2021-2024 BMW M4
2023-2024 BMW M2
