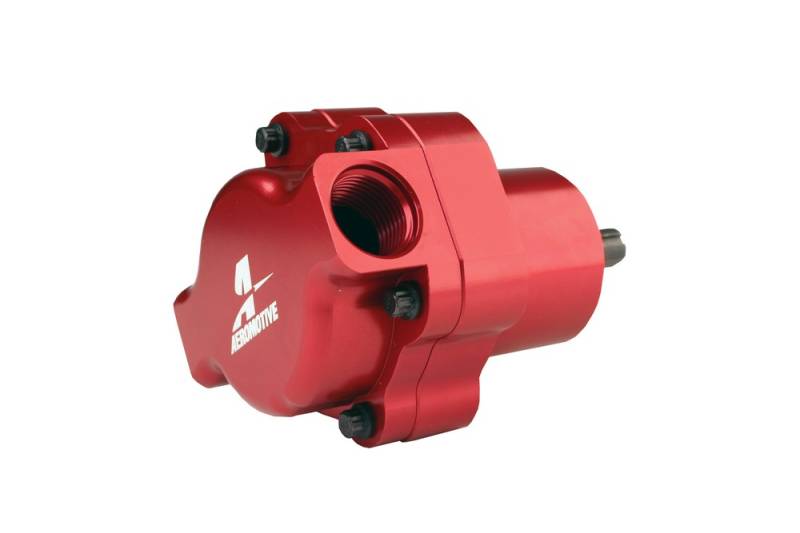

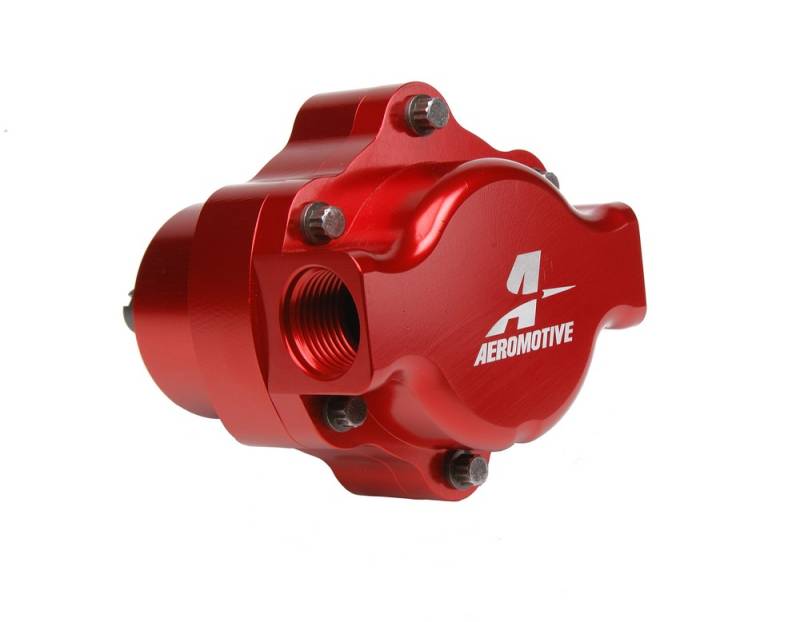

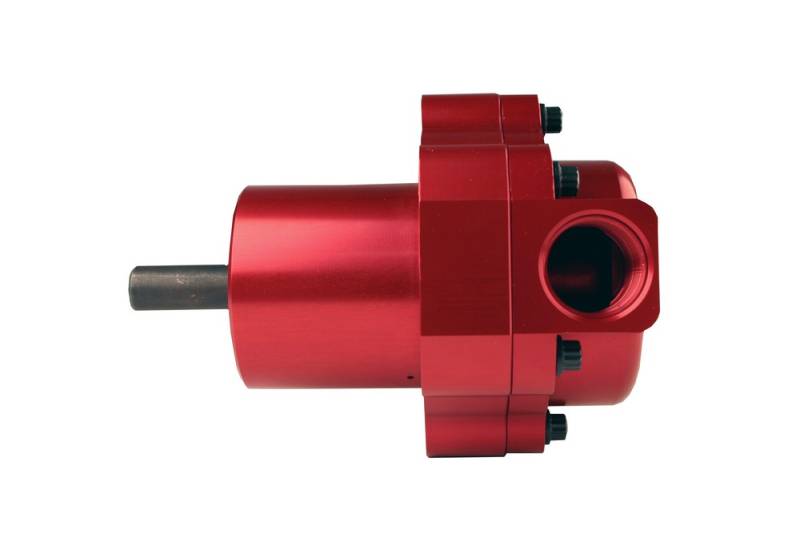

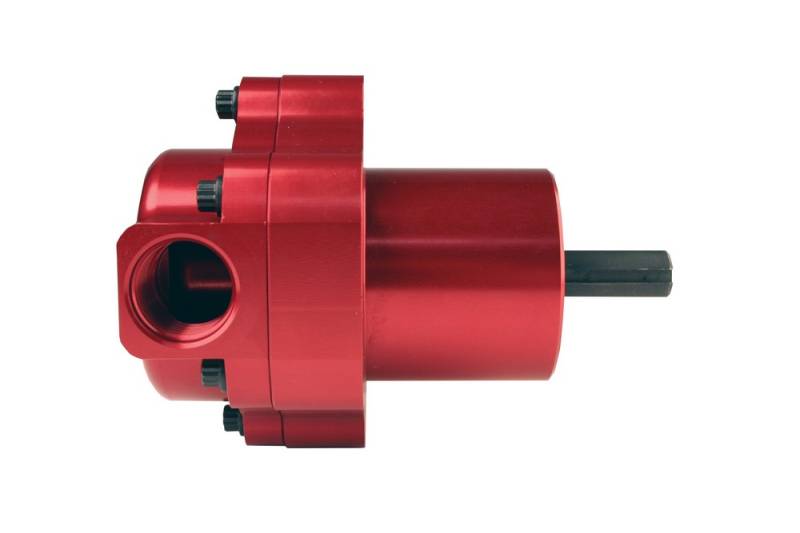

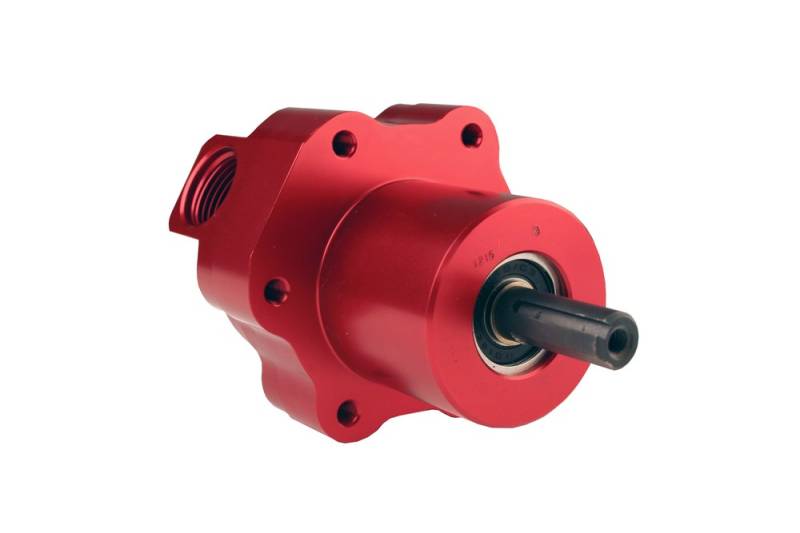

Aeromotive Billet Belt Drive Fuel Pump

6 GPM Billet Belt Drive Mechanical Fuel Pump (See P/N 17140 or 17241 for pump with mounting bracket, pulleys and hardware.).

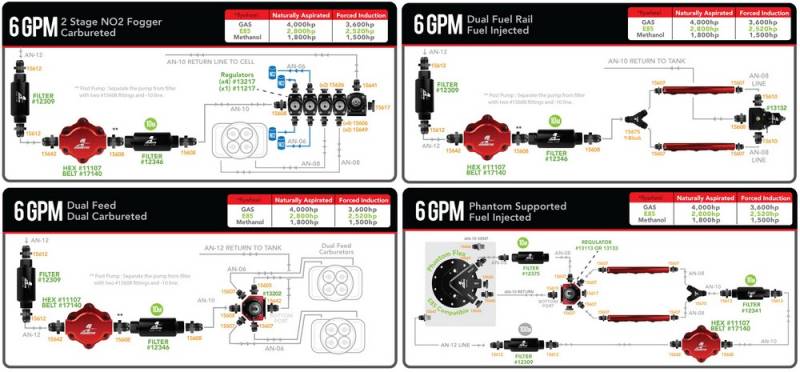

Zero amperage draw, less weight, and more flow! The Aeromotive Billet Belt Drive Fuel Pump was designed to solve fuel delivery problems in high horsepower, forced-induction EFI applications, as well as the now popular carbureted applications on gas or methanol.

Proven performance, powering some of the world's fastest EFI vehicles
Supports up to 3600 HP gas and 1800 HP methanol
Compact size facilitates easy mounting
Billet aluminum CNC-machined body, not 'cast'
ORB-10 inlet and outlet ports
Bracket and Cog Pulley sold separately

ADDITIONAL INFORMATION

California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
EFI HP on E85: 2800
EFI HP on Gas: 4000
Inlet Diameter: 0.625 IN
Inlet Outside Diameter: ORB -10
Maximum Pressure: 60 PSI
Mounting Type: External
Outlet Diameter: 0.625 IN
Outlet Outside Diameter: ORB -10
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Title: Aeromotive Billet Belt Drive Fuel Pump
Associated Comments: supports up to 3600 HP gas; supports up to 1800 HP methanol; compact size facilitates easy mounting

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

None
