Aeromotive Billet Hex Drive Fuel Pump

6 GPM Billet Hex Drive Mechanical Fuel Pump.

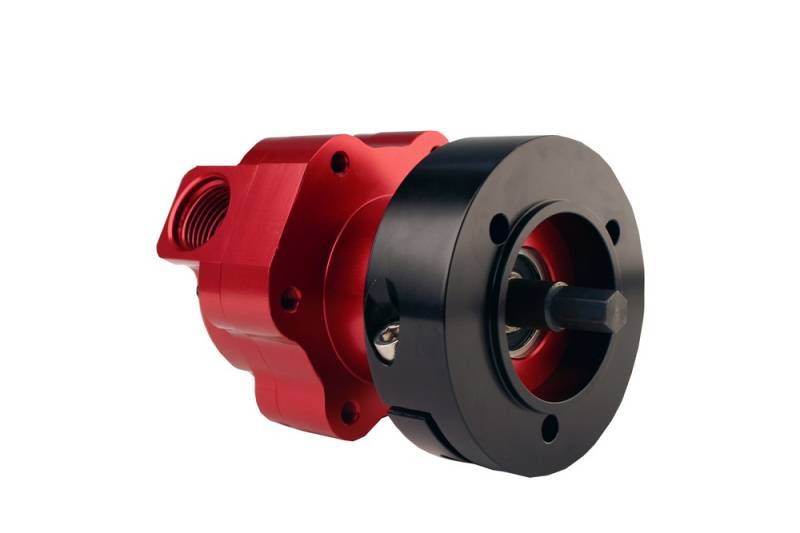

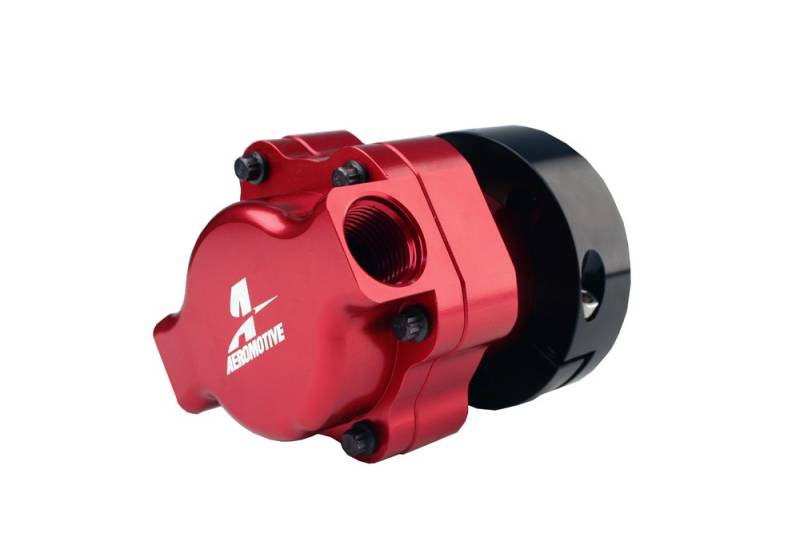

Get the same unparalleled performance you get from our Billet Belt Drive Fuel Pump (P/N 11105), with the convenience of direct drive. The Hex Drive Fuel Pump can be mounted and driven directly from the back of a properly prepared external oil pump or driven directly by the cam through a timing cover adapter. Designed to solve fuel delivery problems in high horsepower, forced-induction EFI applications, as well as the now popular, carbureted applications on gas or methanol. Utilizes standard, 3/8' hex drive shaft and adjustable, billet mounting collar with standard 3-bolt mounting pattern and hardware. Proven performance, powering some of the world's fastest EFI vehicles. Supports up to 3600 HP gas, 1800 HP methanol. Compact size facilitates easy mounting. Billet aluminum CNC-machined body, not 'cast'. ORB-10 inlet and outlet ports.

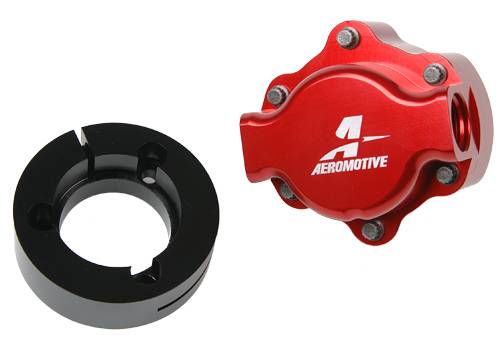

Utilizes standard, 3/8? hex drive shaft and adjustable, billet mounting collar with standard 3-bolt mounting pattern and hardware.
Proven performance, powering some of the world�s fastest EFI vehicles.
Carbureted, Naturally Aspirated Supports up to 3,900 HP gas, 2,700 E85, 1,350 HP methanol.
Fuel Injected, Forced Induction Supports up to 3,000 HP on gas, 2,100 E85, 1,050 HP methanol.
Compact size facilitates easy mounting.
Billet aluminum CNC-machined body, not �cast�.
ORB-10 inlet and outlet ports.
For EFI applications use regulator P/N 13113.
Carbureted gasoline applications require regulator P/N 13202 or P/N 13212.
Alcohol applications require Double Adjustable Regulator P/N 13209 or 13214.
Note: Electric Priming Kit available � P/N 17301 (see Accessories)

ADDITIONAL INFORMATION

California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
EFI HP on E85: 2800
EFI HP on Gas: 4000
Inlet Diameter: 0.625 IN
Inlet Outside Diameter: ORB -10
Maximum Pressure: 60 PSI
Mounting Type: External
Outlet Diameter: 0.625 IN
Outlet Outside Diameter: ORB -10
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Title: Aeromotive Billet Hex Drive Fuel Pump

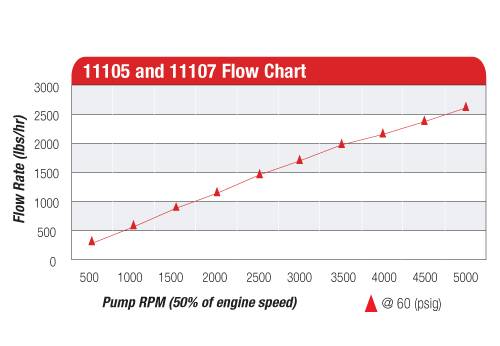

Associated Comments: identical flow at pressure to P/N 11105; engineered to handle gas and alcohol; direct drive provides convenience

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

None
