Aeromotive Atomic Belt Drive Fuel Pump

12 GPM Billet Belt Drive Mechanical Fuel Pump.

12 GPM Belt Drive Mechanical Fuel Pump. Designed to feed serious EFI and Carbureted engines, gasoline, ethanol, or methanol. The 12 Series Belt Drive Pump must be driven by a pulley and cog drive belt allowing the pump to be driven from your crankshaft. It can be used in high or low-pressure applications. Flows up to 12 GPM. 5,000 HP on gas, up to 2500 HP methanol. High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Includes both 1.25' barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow bypass regulators. Sold Separately: Mounting Bracket (P/N 11706).

Flows up to 12 GPM
5,000+ HP on gas, up to 2500 HP methanol.
High efficiency, Gerotor pumping mechanism.
Tough, Type III hard coat anodized body.
CNC Machined from 6061 T6 aircraft aluminum.

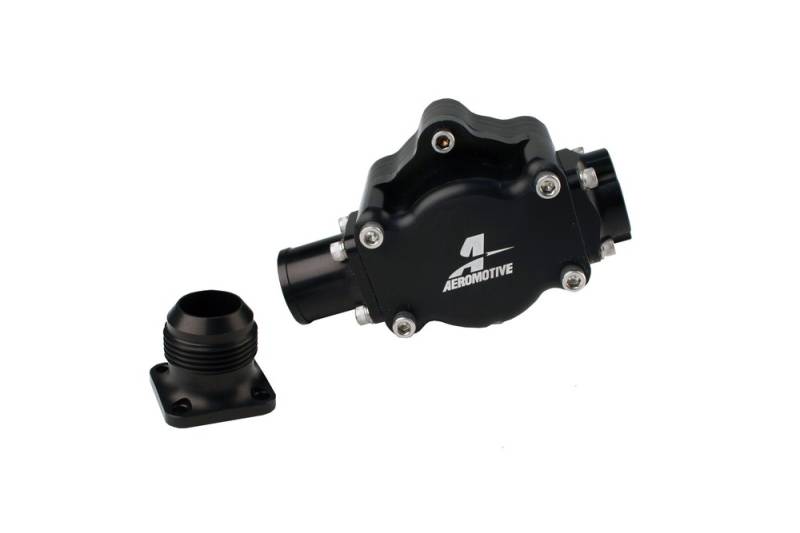

Includes both 1.25? barb and AN-16 Male inlet.
ORB-12 female outlet port.
EFI applications require high-flow return style regulators: P/N 13132,� 13133,� 13137 or� 13113.
Sold Separately: Mounting Bracket: P/N 11706 Cog Pulley: P/N 21109. Electric Priming/Starting Kit:� P/N 17301

ADDITIONAL INFORMATION

California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
EFI HP on Gas: 5000
Inlet Diameter: 1.25 IN
Inlet Outside Diameter: ORB-16
Mounting Type: External
Outlet Diameter: 0.75 IN
Outlet Outside Diameter: ORB - 12
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Title: Aeromotive 12-Series Belt Drive Mechanical Pump

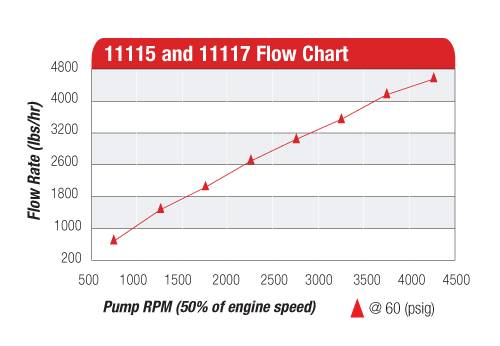

Associated Comments: flows in excess of 4500 lbs/hr; supports around 5000 HP with gas; supports around 2500 HP with methanol; features removable ports

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

None
