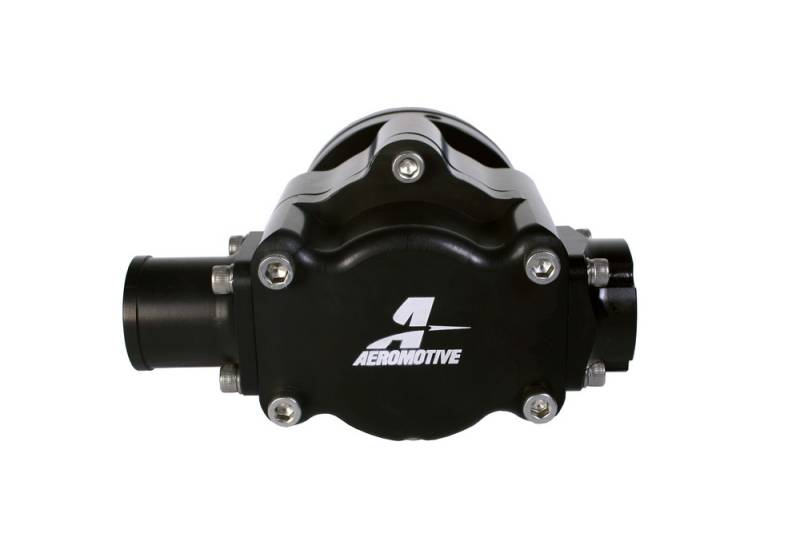

Aeromotive Atomic Hex Drive Fuel Pump

12 GPM Billet Hex Drive Mechanical Fuel Pump.

12 GPM Hex Drive Mechanical Fuel Pump. Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 GPM Hex Drive Pump must be driven by a 3/8" female hex, allowing the pump to be driven from your camshaft or off the back of a properly prepared dry-sump oil pump. It may also be mounted off the engine, or in the back of the vehicle, driven by a Heavy Duty Cable Drive like that from Waterman Racing. It can be used in high or low pressure applications. Flows u p to 12 GPM. 5,000 HP on gas, up to 2500 HP methanol. High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Hex Drive Collar with 3-bolt Enderle bolt pattern. Standard male 3/8" hex driveshaft. Includes both 1.25' barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow bypass regulators.

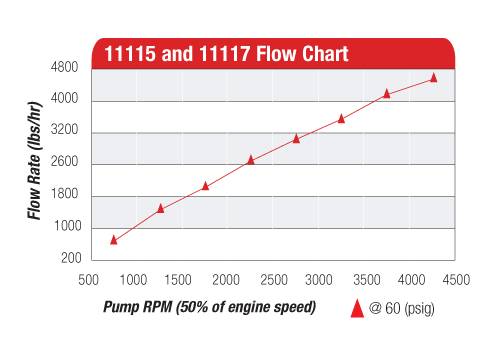

Flows up to 12 GPM
5,000+ HP on gas, up to 2500 HP methanol.
High efficiency, Gerotor pumping mechanism.
Tough, Type III hard coat anodized body.
CNC Machined from 6061 T6 aircraft aluminum.
Hex Drive Collar with 3-bolt Enderle bolt pattern.

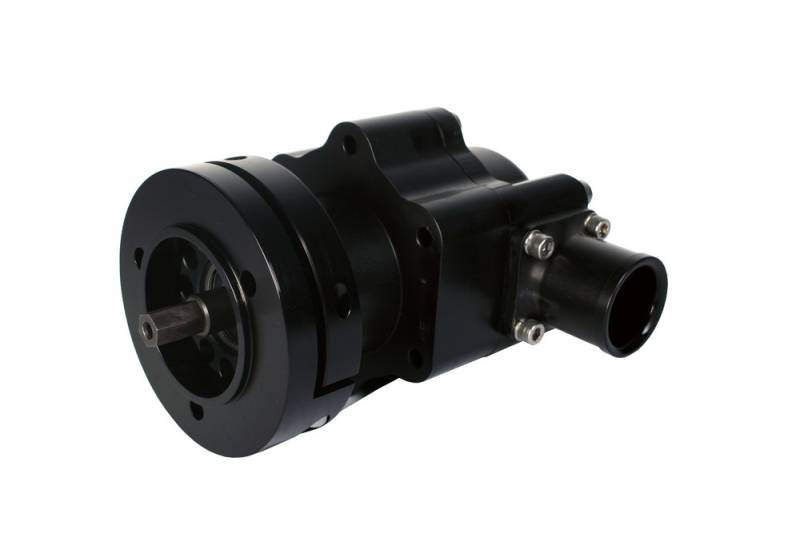

Standard male 3/8? hex driveshaft.

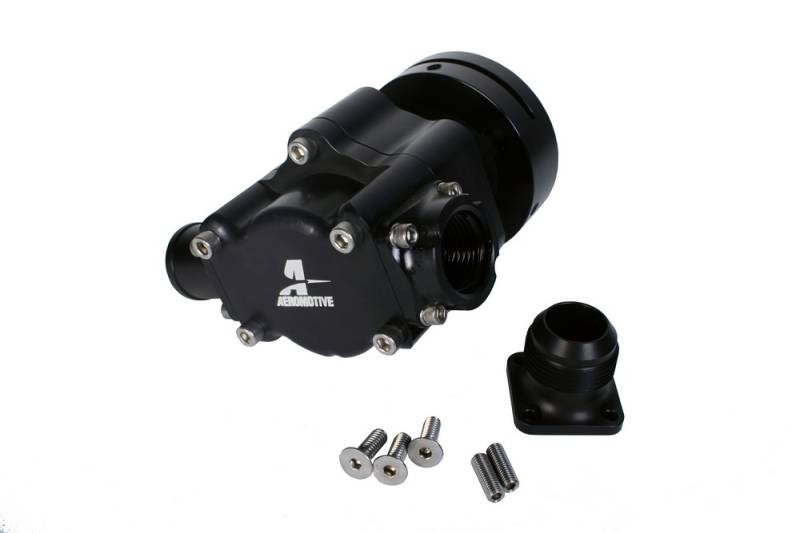

Includes both 1.25? barb and AN-16 Male inlet.

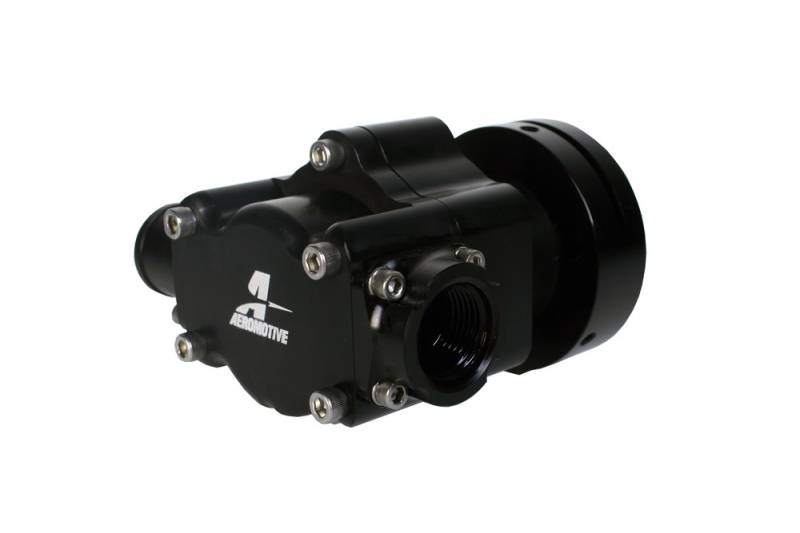

ORB-12 female outlet port.

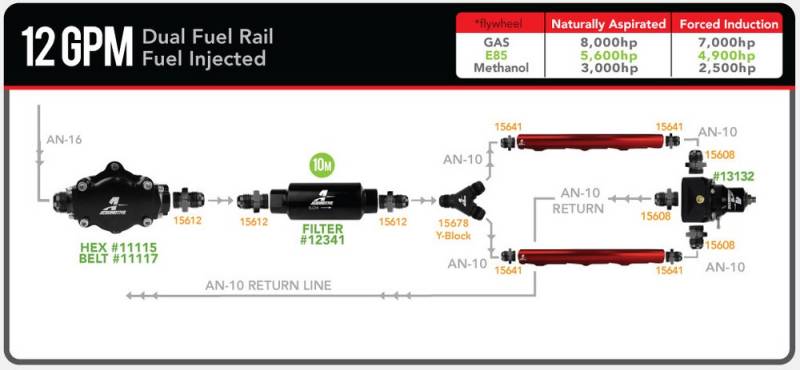

EFI applications require high-flow return style regulators: P/N 13132,� 13133,� 13137 or� 13113.
Sold Separately: Electric Priming/Starting Kit:� P/N 17301

ADDITIONAL INFORMATION

California Proposition 65: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
EFI HP on Gas: 5000

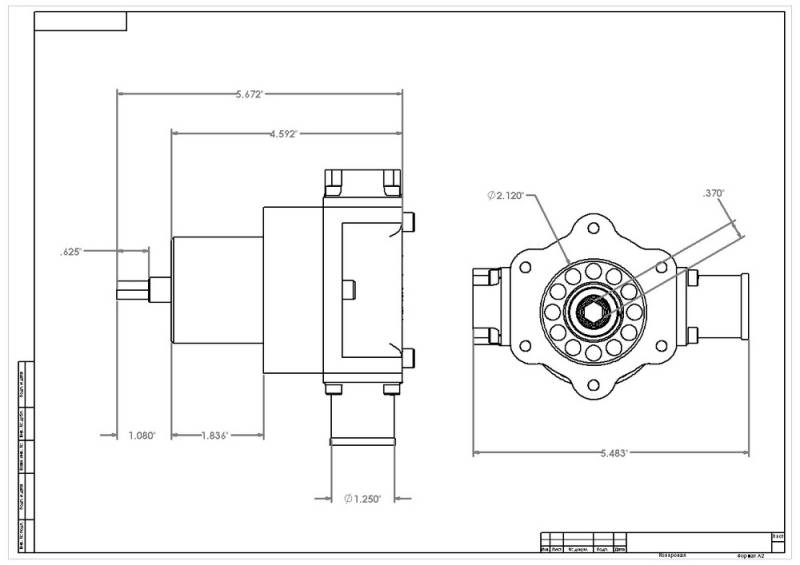

Inlet Diameter: 1.25 IN
Inlet Outside Diameter: ORB-16
Mounting Type: External
Outlet Diameter: 0.75 IN
Outlet Outside Diameter: ORB - 12
Prop 65 (C, R or CR): CR
Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label: P65_Warning_Chromium.jpg
Prop 65 Flag: Yes
Title: Aeromotive 12-Series Hex Drive Mechanical Pump
Associated Comments: direct drive provides convenience; can handle either gas or alcohol; supports around 5000 HP with gas; supports around 2500 HP with methanol

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

None
