ACL Volkswagen EA888 Gen 3 TFSI 4cyl Turbo .25 Size Race Series Main Bearings 5M5585H-.25

5M5585H-.25
Not Available
Availability: Item usually ships within 24 hours
Was: $156.09
Sale: $138.44
Save: 11%
Save: $17.65

Description

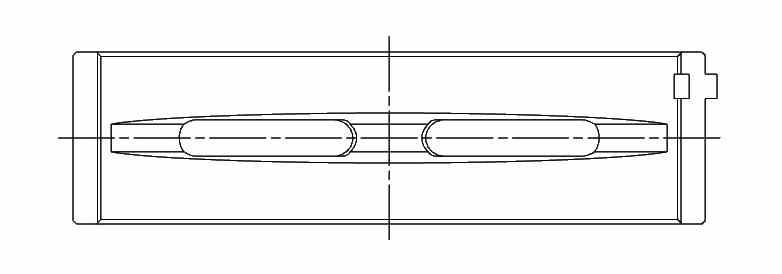

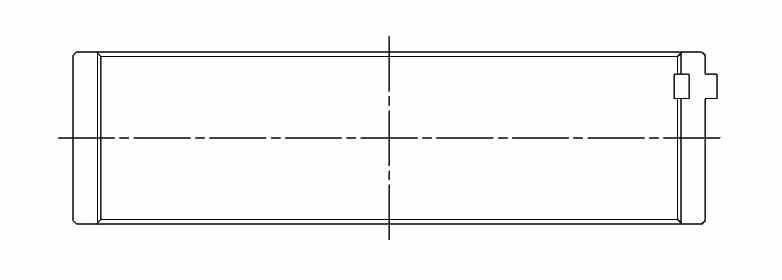

Main Bearing set 5 - .25mm (0.010") undersize

ACL RACE Series performance engine bearings are recognized as a premier brand throughout the motorsports world. RACE Series rod and main bearings are standard components in Race engines that have set records and won championships from Mexico to Bonneville - from sport compact drift racing to small block NASCAR, IHRA and NHRA cmpetitions. The unique combination of design, metallurgy and engineering provides RACE Series performance bearings with the endurance and capability to perform where others cannot. These exceptional bearings are available for a variety of American, Asian and European performance engines

ADDITIONAL INFORMATION

ACL Volkswagen EA888 Gen 3 TFSI 4cyl Turbo .25 Size Race Series Main Bearings

Grade Type: Performance
Max Wall: 2.505 MM
Max Wall: 0.0986 IN
Outside Diameter: 57.019 MM
Outside Diameter: 2.2448 IN
Outside Diameter: 57 MM
Outside Diameter: 2.2441 IN
Shaft Diameter: 51.978 MM
Shaft Diameter: 2.0464 IN
Shaft Diameter: 51.958 MM
Shaft Diameter: 2.0456 IN
Width: 15.5 MM
Width: 0.61 IN

Interchange: KING MB5778XP

FITMENT NOTES

2011 Seat Exeo; 2009 Seat Freetrack; 2007-2018 Seat Leon; 2016-2017 Audi A7; 2017-2018 Audi A7 Quattro; 2016-2018 Audi A1; 2004-2008 Audi A3 Quattro; 2017-2020 Audi A4 allroad; 2013-2018 Audi Q3 Quattro; 2018-2020 Audi A5 Sportback; 2018 Audi Q2 Quattro; 2016-2021 Audi TTS Quattro; 2004-2018 Audi A3; 2016-2019 Audi Q7; 2018-2020 Audi A5 Quattro; 2010-2020 Audi Q5; 2008-2022 Audi S3; 2018-2019 Audi A5; 2016-2018 Audi A6; 2016-2018 Audi A6 Quattro; 2009-2021 Audi A4; 2017-2021 Audi A4 Quattro; 2011-2018 Audi TT; 2014 Audi TT Quattro; 2006-2009 Volkswagen Bora; 2015-2019 Volkswagen Golf R; 2018-2021 Volkswagen Atlas; 2019-2021 Volkswagen Arteon; 2019-2021 Volkswagen Teramont; 2020-2021 Volkswagen Atlas Cross Sport; 2015-2018 Volkswagen GTI; 2013-2017 Volkswagen Beetle; 2013-2018 Volkswagen Jetta; 2014-2017 Volkswagen Passat

Compatible Vehicles

Details

Shipping Information

  • Item Requires Shipping
  • 0.3 lbs.
  • W2.7600” x H26.0000” x L6.3000”
  • Free Shipping!
