ACL VW 14i/16i/18t/20TFSi/20TSI Standard Size High Performance Rod Bearing Set 4B1609H-STD

4B1609H-STD
Limited Supply: only 2 remaining
Availability: Item usually ships within 24 hours
Was: $67.03
Sale: $58.56
Save: 13%
Save: $8.47
Qty:
Free Shipping!

Description

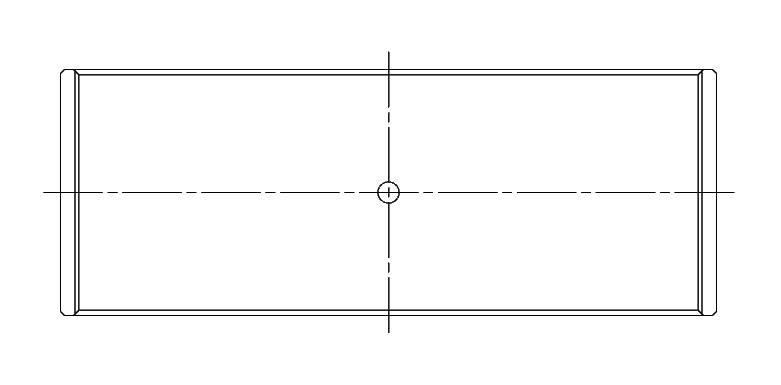

Connecting Rod Bearing set 4 Standard Size (notchless)

ACL RACE Series performance engine bearings are recognized as a premier brand throughout the motorsports world. RACE Series rod and main bearings are standard components in Race engines that have set records and won championships from Mexico to Bonneville - from sport compact drift racing to small block NASCAR, IHRA and NHRA cmpetitions. The unique combination of design, metallurgy and engineering provides RACE Series performance bearings with the endurance and capability to perform where others cannot. These exceptional bearings are available for a variety of American, Asian and European performance engines

ADDITIONAL INFORMATION

ACL VW 14i/16i/18t/20TFSi/20TSI Standard Size High Performance Rod Bearing Set

Grade Type: Performance
Max Wall: 1.405 MM
Max Wall: 0.0553 IN
Outside Diameter: 50.619 MM
Outside Diameter: 1.9929 IN
Outside Diameter: 50.6 MM
Outside Diameter: 1.9921 IN
Shaft Diameter: 47.778 MM
Shaft Diameter: 1.881 IN
Shaft Diameter: 47.758 MM
Shaft Diameter: 1.8802 IN
Width: 0.748 IN
Width: 19 MM

Interchange: KING CR4597XP

FITMENT NOTES

2010 Seat Nuevo Ibiza; 2011 Seat Exeo; 2009 Seat Freetrack; 2001-2009 Seat Cordoba; 2001-2015 Seat Ibiza; 2001-2013 Seat Leon; 2001-2006 Seat Toledo; 2002-2007 Seat Alhambra; 2004-2008 Audi A3 Quattro; 2013 Audi Q3 Quattro; 1998-2011 Audi A3; 2010 Audi Q5; 2000-2012 Audi S3; 1984 Audi 4000; 1988-1990 Audi 80; 1988 Audi 90; 1997-2009 Audi A4; 1997-2009 Audi A4 Quattro; 1999-2016 Audi TT; 2001-2002 Audi TT Quattro; 2006-2009 Volkswagen Bora; 2007-2010 Volkswagen Golf City; 2007-2009 Volkswagen Jetta City; 2011-2015 Volkswagen Clasico; 1984-1987 Volkswagen Caribe; 1984-1988 Volkswagen Corsar; 2007-2009 Volkswagen Eos; 1984-1987 Volkswagen Atlantic; 2006-2008 Volkswagen GTI; 1995-1996 Volkswagen Caravelle; 1988-2001 Volkswagen Combi; 1995-2009 Volkswagen Derby; 1988-2001 Volkswagen Panel; 1998-2009 Volkswagen Pointer; 1998-2010 Volkswagen Pointer Truck; 2002-2008 Volkswagen Sharan; 2003-2007 Volkswagen Polo; 1995-2002 Volkswagen Cabrio; 2003-2009 Volkswagen Van; 1998-2011 Volkswagen Beetle; 1987-1993 Volkswagen Fox; 1985-2010 Volkswagen Jetta; 1984-1985 Volkswagen Quantum; 1990-1993 Volkswagen Cabriolet; 1985-2007 Volkswagen Golf; 1990-1992 Volkswagen Corrado; 1995-2008 Volkswagen Passat

Compatible Vehicles

Details

Shipping Information

  • Item Requires Shipping
  • 0.1 lbs.
  • W2.0900” x H1.1800” x L3.9800”
