ACL 03+ Ford/Mazda 4 2.0L/2.3L DOHC Duratec Standard Size Race Series Main Bearing Set 5M8174H-STD

5M8174H-STD
Limited Supply: only 3 remaining
Availability: Usually ships within 24 hours
Was: $107.40
Sale: $94.26
Save: 12%
Save: $13.14
Qty:
Free Shipping!

Description

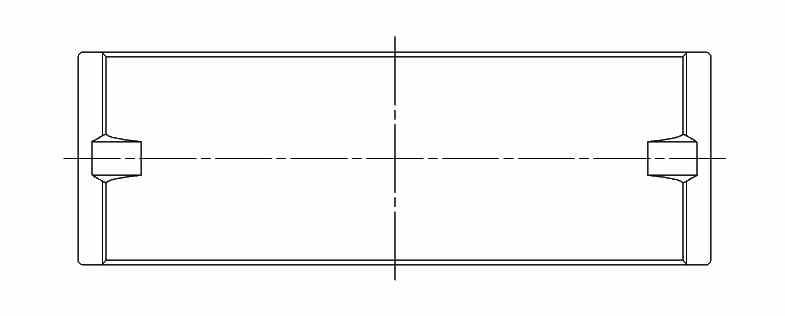

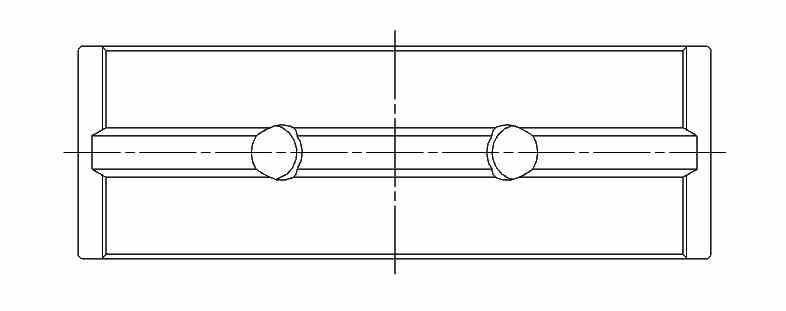

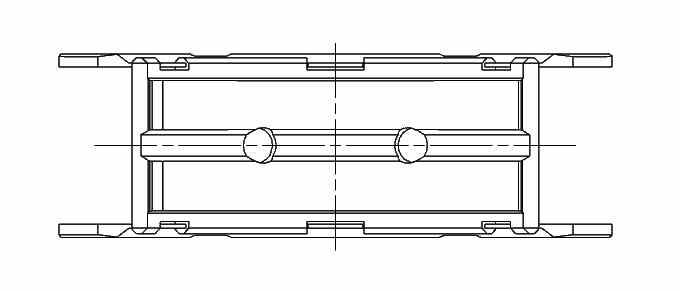

Main Bearing set 5 - Standard Size

ACL RACE Series performance engine bearings are recognized as a premier brand throughout the motorsports world. RACE Series rod and main bearings are standard components in Race engines that have set records and won championships from Mexico to Bonneville - from sport compact drift racing to small block NASCAR, IHRA and NHRA cmpetitions. The unique combination of design, metallurgy and engineering provides RACE Series performance bearings with the endurance and capability to perform where others cannot. These exceptional bearings are available for a variety of American, Asian and European performance engines

ADDITIONAL INFORMATION

ACL 03+ Ford/Mazda 4 2.0L/2.3L DOHC Duratec Standard Size Race Series Main Bearing Set

Grade Type: Performance
Max Wall: 2.504 MM
Max Wall: 0.0986 IN
Outside Diameter: 57.037 MM
Outside Diameter: 2.2456 IN
Outside Diameter: 57.019 MM
Outside Diameter: 2.2448 IN
Shaft Diameter: 52 MM
Shaft Diameter: 2.0472 IN
Shaft Diameter: 51.98 MM
Shaft Diameter: 2.0465 IN
Width: 19.1 MM
Width: 0.752 IN

Interchange: KING MB5442XP
Clevite MS-2245H

FITMENT NOTES

2003 Ford Focus ZX3 (Aspiration: Naturally Aspirated & Cylinder Head: DOHC & Liter: 2.3 & Engine(ci): 140 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.4 & Stroke(in): 3.70 & Stroke(mm): 94.0 & Engine VIN: Z & Valves: 16 & Fuel: GAS & Engine Version: Duratec)

Compatible Vehicles

Details

Shipping Information

  • Item Requires Shipping
  • 0.4 lbs.
  • W3.4300” x H2.4000” x L3.8200”
