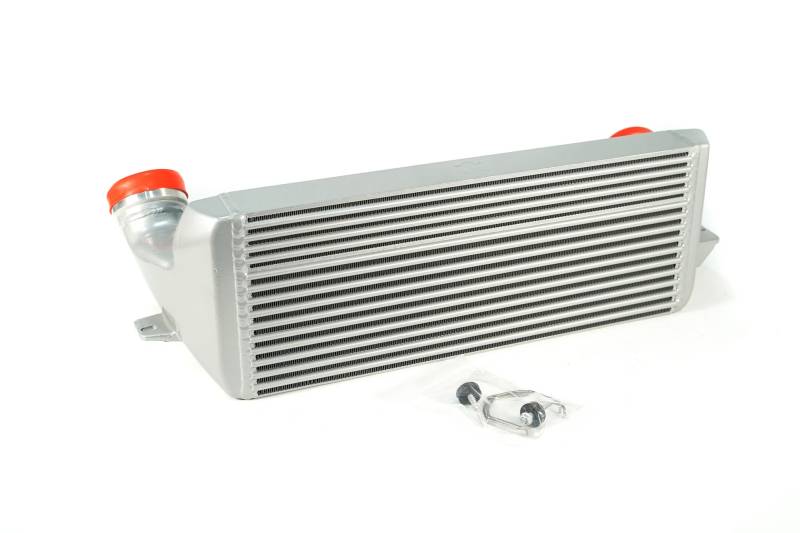

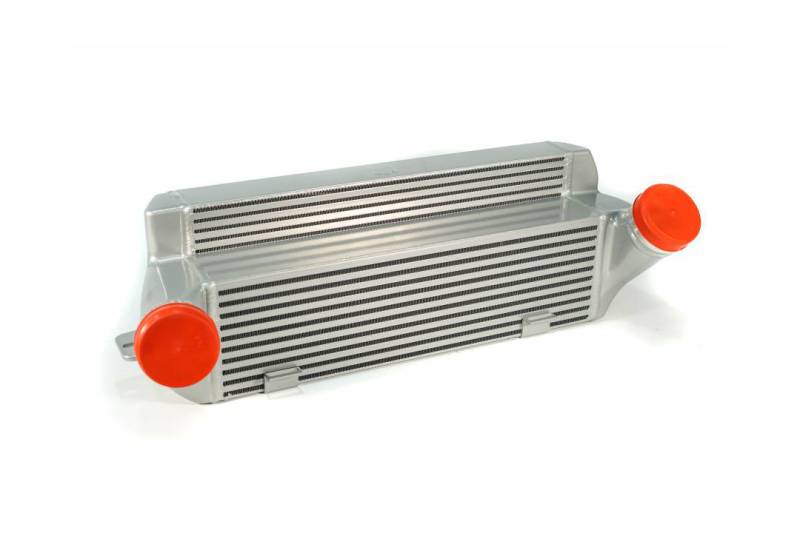

CSF 04-13 BMW 335i/xi (E90/E91/E92/E93) High Performance Stepped Core Bar/Plate Intercooler - Silver

BMW N54 High-Performance Stepped Core Intercooler - Silver

The CSF N54 Intercooler's Stepped Core Design maximizes surface area contact and internal intake air-flow volume. The Rounded Front Face Bar/Plate Design optimizes airflow through the core and is a true "Drop-in Fit" Plug-and-Play Design.

The BMW N54 engine is well known for its incredible power potential. Many owners are pushing well over 500hp out of these motors and some have seen as high as 1000hp. Truly amazing performance can be achieved when using the proper components from quality high performance companies including a worthy high performance intercooler to handle the increased Intake Air Temperatures (IATs) generated from more power and higher boost pressures associated with these built vehicles.; The OEM intercooler is made from plastic end tanks that are crimped onto an aluminum tube/fin core that is 4 inches thick (105mm core width) and is 5 inches in height (127mm). This may be enough to keep IAT's in check on a completely unmodified / stock vehicle but once users to start increase power through bolt-on modifications tuning and built engines the OEM intercooler will become the Achilles Heel of the system with IAT's skyrocketing out of the optimal range and drastically lowering the performance capabilities of the vehicle. Enter CSF with their stepped core design bar/plate high performance N54 intercooler. This "drop-in fit" intercooler which requires no modifications to install has a bottom / larger section that is 5.5in thick (140mm) with a front face that is massive 8.25in tall (210mm). Made from CSF's industry exclusive rounded bar/plate core design. The rounded front face of the cooling bars allows for better airflow into the core. Airflow hits the core surface and rather than scattering like it does with hitting the face of a flat bar that all competing products have it travels around the face of the round bar and into core for much better performance than both the OEM design (flat face) and all other aftermarket competitors (all have flat face tubes or bars). A huge improvement over the OEM unit and enough to handle even the most advanced N54 engine builds. Good for 1000hp no problem!; The CSF #8127 comes in a silver finish. It is also available in black (CSF #8127B)

The Only TRUE Plug-and-Play Solution Compared to the Rest
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
No Cheaper Silicone Hose Clamp System BMW Style "Quick-Connect" Machined Fittings
OEM Mounting Locations with Fitment Kit and Instructions Included
Clears OEM Crash Bar No Modification to Install with No Cutting or Trimming Required
Bottom/Larger: Section: 5.5" Thick (140mm)
Massive Front Face: 8.25" Tall (210mm)
Good for Over 1000 HP!

ADDITIONAL INFORMATION

Color: Silver
Core Color: Silver
Core Material: Aluminum
Core Row Quantity: 1
Grade Type: Performance
Inlet Fitting Gender: Male
Inlet Tank Material: Aluminum
Installation Type: Drop-In Fit Installation
Mounting Hardware Included: No
Outlet Fitting Gender: Male
Prop 65 Yes/No: No
Title: BMW N54 High-Performance Stepped Core Intercooler - Silver
Type: Air-to-Air
Universal Or Specific Fit: Specific

Associated Comments: The CSF #8127 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2007-2008 BMW 335xi
2007-2013 BMW 335i
2008-2013 BMW 135i
2009-2013 BMW 335i xDrive
2009-2016 BMW Z4
2011-2013 BMW 335is
2013-2013 BMW 135is
2013-2015 BMW X1
