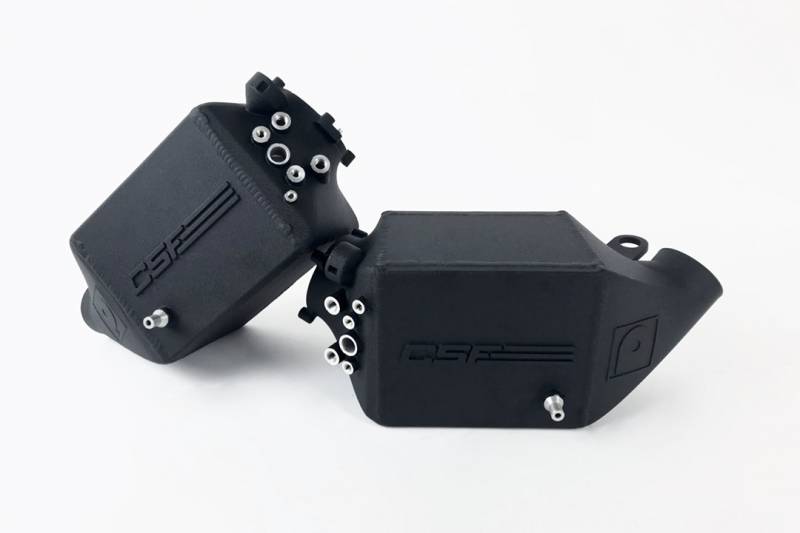

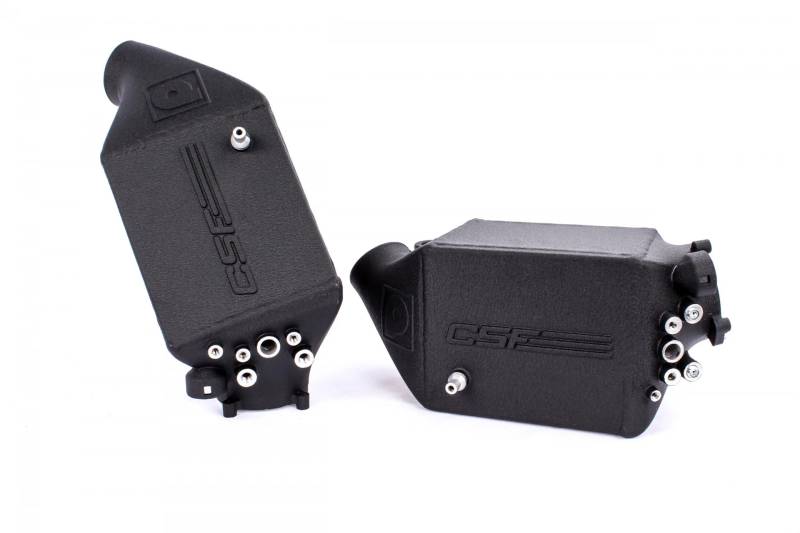

CSF 12-16 BMW M5 (F10) / 12-18 BMW M6 (F06/F12/F13) Twin Charge-Air-Cooler Set - Crinkle Black

BMW F1X M5 & M6 Twin Charge-Air-Cooler Set - Crinkle Black Finish

The CSF Charge-Air-Coolers boast a 28% larger core size than factory per side. This greatly increases the capacity for heat transfer from the hot charge air from your F1X's Turbos.

The S63 4.4L Twin Turbo V8 in the BMW F1X M5/M6 is an absolute monster that responds incredibly well to bolt-on upgrades larger turbos and performance tuning. Tuners quickly found that increasing power on the S63 pushed charge air temperatures past the OEM Charge-Air-Coolers' limits resulting in dangerously high Intake Air Temperatures (IATs). Pure turbos approached CSF to develop a Charge-Air-Cooler upgrade that would hold up to the extreme boost levels their turbos upgrades could generate and keep the car's IATs in check. The result was the World's 1st Cast End Tank Designed High-Performance Charge-Air-Cooler Set for the F1X M5/M6. CSF used CFD analysis and testing to create the largest charge-air-cooler that could fit in the factory location. The Top/Bottom Cross-Flow Dual-Pass Cores are 28% larger than the factory coolers and offer significant reductions in IATs at increased boost levels.; The CSF #8109 Twin Charge-Air-Cooler Set comes with a Professional "Crinkle Black" Powder-Coated Finish. It is also available in Raw Aluminum with Options for Custom Powder-Coating Available (CSF #8109R)

World's 1st Cast End Tank Designed High-Performance Charge-Air-Cooler Set for the BMW F1X M5/M6
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Custom Designed CSF Liquid-To-Air Intercooler Core (CFD Analysis and Testing Completed to Ensure Optimal Performance)
28% Increase in Core Size Per Each Charge Cooler Compared to the OEM Charge Air Coolers
Top/Bottom Cross-Flow Dual-Pass Core Configuration with 2-Stage Water Cooling for Maximum Efficiency and Intake Temperature Reduction
Designed with 3D Scanning/Rapid Prototype Technology to Ensure Precise Fitment and Maximum Surface Area Utilization
Drop-In Fit
Additional E85/Methanol Injection Ports Built into the Cast End Tank Design
Finished with a Professional "Crinkle Black" Powder-Coated Finish (CSF #8109) Also Available in Raw Aluminum Finish with Option for Custom Powder-Coating Available (Inquire for More Details on Lead Time and Pricing)
Lifetime Warranty

ADDITIONAL INFORMATION

Color: Black
Core Color: Black
Core Material: Aluminum
Core Row Quantity: 1
Grade Type: Performance
Inlet Fitting Gender: Male
Inlet Tank Material: Aluminum
Installation Type: Drop-In Fit Installation
Mounting Hardware Included: No
Outlet Fitting Gender: Male
Prop 65 Yes/No: No
Title: BMW F1X M5 & M6 Twin Charge-Air-Cooler Set - Crinkle Black Finish
Type: Air-to-Water
Universal Or Specific Fit: Specific

Associated Comments: The CSF #8109 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2012-2016 BMW M5
2012-2018 BMW M6
2014-2019 BMW M6 Gran Coupe
