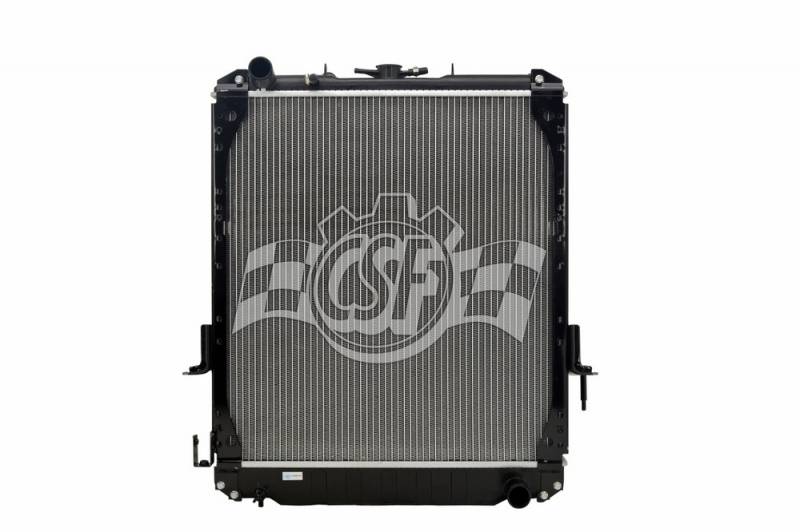

CSF 96-02 Isuzu NPR 5.7L OEM Plastic Radiator

2 Row Plastic Tank Aluminum Core

Radiator
CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

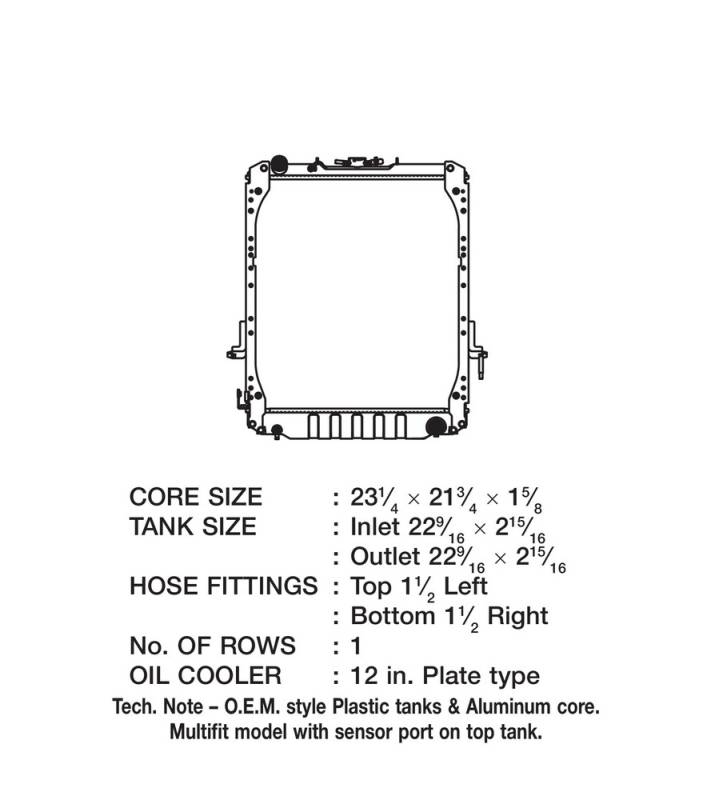

Bottom Hose Fitting (in): 1 1/2 Right

Box Height (in): 7 7/16
Box Length (in): 30 1/4

Box Weight (lbs): 21
Box Width (in): 28 11/16

Core Length (in): 23 1/4
Core Material: Aluminum

Core Thickness (in): 1 5/8
Core Width (in): 21 9/16

Cross-flow/ Down-flow: Down Flow
Csf Cap Number: 4503

Hazardous Material: No
Inlet Length (in): 22 1/8

Inlet Width (in): 1 15/16
No. Of Rows: 2

Oil Cooler (in): 12 (high-efficiency Plate Type)
Outlet Length (in): 22 1/8

Outlet Width (in): 1 15/16
Radiator Cap Supplied: No

Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core;Superior Engineered Multifit model with Sensor Port on top tank

Top Hose Fitting (in): 1 1/2 Left
