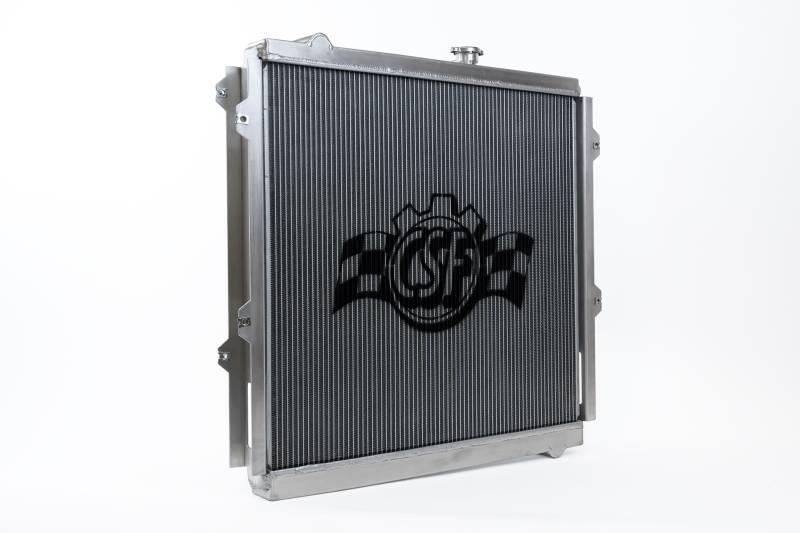

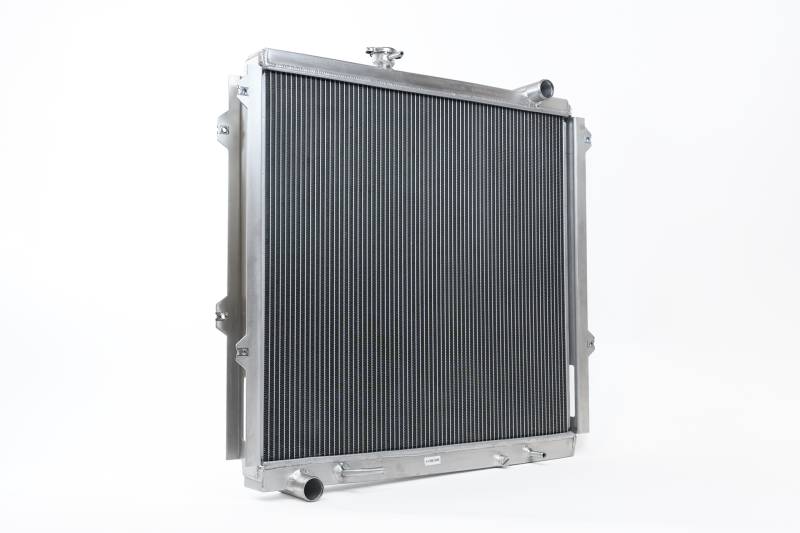

CSF 96-02 Toyota 4Runner (2.7/3.4L) Heavy-Duty All-Aluminum Radiator

3rd Gen Toyota 4Runner Heavy-Duty All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your 3rd Gen 4Runner. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

The 3rd Gen Toyota 4Runner has been a long time favorite amongst off-road enthusiasts. Since its release this generation of 4Runner has been regarded as one of the best off-road platform available. Even at over 20 years of age you will still see countless of these SUVs both around town and on the trails. Despite their legendary reliability and durability as these SUVs age there is always room for improvement. While the engines will basically run forever there are plenty of supporting systems that can use some shoring up. The OEM cooling system is fairly robust and can keep up with most daily driven 4Runners. However this changes a bit once you start throwing bigger tires on them and pushing them to the limit. That's why CSF developed the new Heavy-Duty All-Aluminum Radiator for the 96-02 Toyota 4Runner.; The 2-Row 42mm aluminum core not only increases the fluid capacity of the radiator but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes found on many other aluminum radiators. Additionally the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The end tanks are made from high grade aluminum and TIG welded to the core for extra strength. In contrast the OEM crimped onto plastic end tank design is much weaker and creates a weak point where failure is more likely. Because the CSF radiator is designed as a true plug-and-play drop-in fit application installation requires absolutely no modifications trimming or cutting. CSF even includes pre-cut double sided adhesive foam strips to help seal the fan shroud against the radiator. This improves airflow efficiency off the fan. In addition the CSF radiator features a built-in transmission fluid cooler. The transmission cooler is a heavy-duty high-performance 5 plate design that connects to the OEM hoses. This upgraded built in cooler is great dealing with the added heat and stress from towing low gear crawling and vehicles equipped with oversized tires. While plenty of people understand the impacts of oversized tires it is always good to provide additional information. By increasing the diameter of your tires you are reducing the effective gear ratio. This means the engine and transmission have to work harder to move the tires. Obviously this will end up generating excess heat and the CSF radiator is designed to handle it.

2-Row - 42mm Ultra-High-Performance Core
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Individually Leak and Pressure Tested
2-Year Limited Warranty
Cooling Tubes with CSF's Exclusive B-Tube Technology
6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
Built in Heavy-Duty High-Performance 5 Plate Transmission Oil Cooler in bottom tank
100% All Aluminum TIG-Welded Construction
Smooth Satin Finish
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

ADDITIONAL INFORMATION

Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 22.625 in.
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 42mm
Core Width: 25.25 in.
Down Flow Or Cross Flow Type: Down Flow
Finish/Color: Satin
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 1.375 in.
Inlet Location: Top Right
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 1.375 in.
Outlet Location: Bottom Left
Prop 65 Yes/No: No
Radiator Cap Included: Yes
Tank Material: Aluminum
Thermostat Included: No
Title: 3rd Gen Toyota 4Runner High-Performance All-Aluminum Radiator

Associated Comments: The CSF #7210 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

1996-2002 Toyota 4Runner
