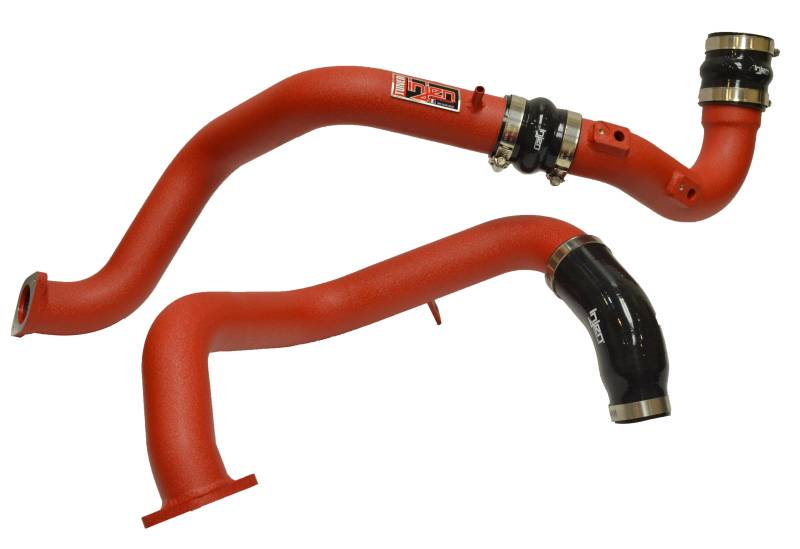

Injen 16-20 Honda Civic 1.5L Turbo Aluminum Intercooler Piping Kit - Wrinkle Red

Injen Intercooler pipes are the next logical step in your search for power gains. The Injen staff has put in the time and work to develop parts that perform. These Intercooler pipes are no different, after investigating the OE piping, our engineers identified numerous areas where improvement was necessary. The Injen performance intercooler pipes are constructed of mandrel-bent aluminum piping that eliminates the rust buildup present in the most stock pipes. Injen's Automotive Grade Silicone Couplers and Stainless Steel Band Clamp with Inner Protective Liner are also included in this kit. The Injen technology Silicone Couplers are on a new level. Compared to normal silicone, Injen Automotive Grade Silicone Couplers provide superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of the couplers by preventing leaks and blowouts. The Injen Intercooler Pipe Kit is designed to work with the stock as well as the Injen performance intercooler. This Intercooler pipe performance kit, like all of our Injen performance parts, includes the Injen Limited Lifetime Warranty.

Manufactured from 2.25"Lightweight 6061-T6 Aluminum Piping
Intercooler not included
Optional front mount intercooler P/N# FM1573i
Hot and Cold side pipes included

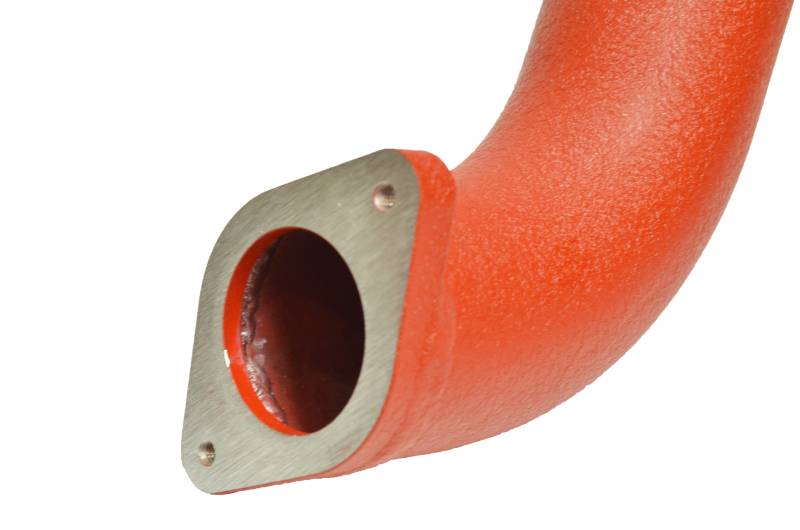

Precision CNC machined, and TIG-Welded sensor flanges included
Available in 3 amazing colors for that personal touch
Stainless Steel Band Clamp with Inner Protective Liner
Automotive Grade Silicone Couplers
Unique Injen Logo Plate for a Refined Style
Increase Throttle Response and Decreases Turbo Lag
Beaded Tube Ends to Help Prevent Couplers from Coming Off
Mandrel-bent Tubing for Increased Flow
Uses all factory mounting locations Includes all necessary hardware for a hassle-free installation
Injen Technology Limited Lifetime Warranty
This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.

ADDITIONAL INFORMATION

Injen 16-20 Honda Civic 1.5L Turbo Aluminum Intercooler Piping Kit - Wrinkle Red

Long Description: Wrinke Red SES Intercooler Pipes
Extended Description: SES Intercooler Pipes, Part No. SES1573ICPWR, 2016-2021 Honda Civic L4-1.5L Turbo, 2017-2020 Honda Civic Si L4-1.5L Turbo.
Associated Comments: No intercooler included. Optional front mount intercooler available part # FM1573i

Attachment Method: Flange and Silicone
CNC Flanges Included: Yes
CNC Sensor Adapters Inlcuded: Yes
Compatible Throttle Controller: PT0018B
Finish: Wrinkle Red
Grade Type: Performance
Hardware Included: Yes
Hot and Cold Side Included: Yes
Pipe Material: 6061-T6 Aluminum
Pipe Size: 2.25 IN
Prop 65 (C, R or CR): CR
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 Yes/No: Yes
Stepped Design: No
Title: Injen Wrinke Red SES Intercooler Pipes

FITMENT NOTES

2016-2021 Honda Civic
