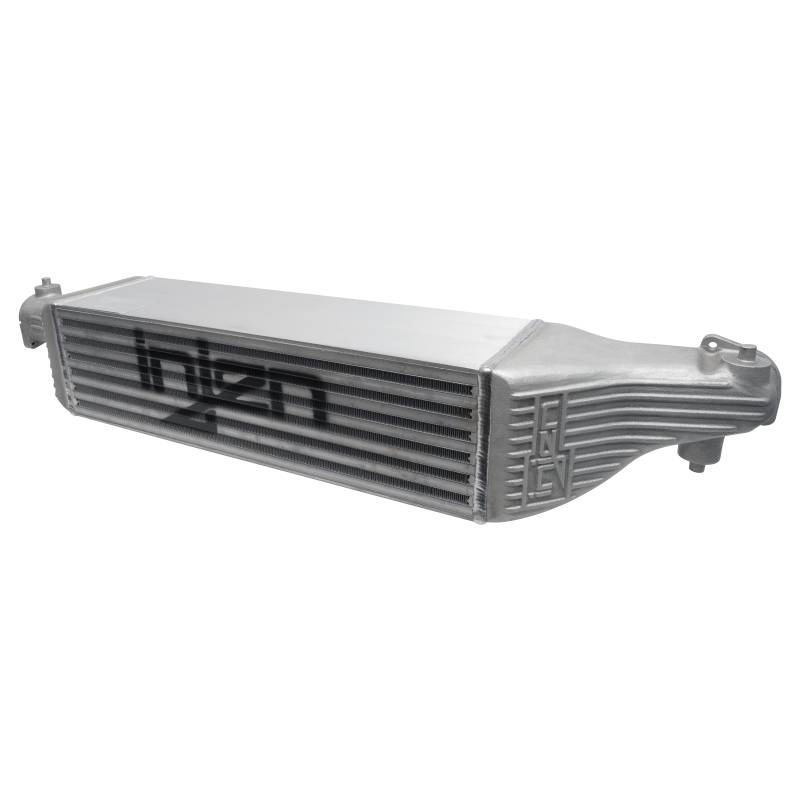

Injen 16-20 Honda Civic I4-1.5L Turbo 10th Gen. Bar and Plate FMIC (600 HP Max)

The 10th GEN Civic is a great platform for soaking up highway miles during the weekday and tearing it up at the track on the weekend. With some minor modifications, the 1.5L Turbo engine is capable of producing some killer power. Added power will push the limits of the stock charge air system, necessitating an upgrade for the stock tube-and-fin intercooler, which is prone to heat soak. Injen has developed a highly efficient bar-and-plate intercooler engineered specifically to fit the 2016-2021 Honda Civic I4-1.5L(t) and the 2017-2020 Honda Civic Si I4-1.5L(t), , The FM1573i intercooler is a direct-fit unit and features a 25% increase in core volume while requiring no modification to your civic. This cooler is constructed with cast end tanks and precision CNC-machined aluminum flanges for use with the factory intercooler piping. The Injen Honda Civic intercooler reduces intake temperatures by 24?F and provides an increase of up to 16 HP and 19 Lbs. of torque while retaining factory boost pressure across the core. , , This Civic 1.5L turbo intercooler also features precision TIG-welding and has a unique silver finish that is reminiscent of brushed aluminum. With an installation time of one-hour, great power and temperature benefits, and a Lifetime Warranty, the Injen FM1573i intercooler is a must-do upgrade for any stock or modified 10th Gen turbo Civic.

Dyno Proven gains of up to 16 hp and 19 lb-ft. of torque
100% Direct bolt-on front mount intercooler
No piping included.
Optional intercooler piping kit available. P/N# SES1573ICP
CAD designed end tanks for optimal air flow.
Intercooler core dimensions 21.06 x 5.750 x 5.28
Designed to work with the stock calibration
Optional intercooler piping kit available. Part # SES1573ICP
Made in Pomona, California USA
Injen Technology Limited Lifetime Warranty
Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.

ADDITIONAL INFORMATION

Injen 16-20 Honda Civic I4-1.5L Turbo 10th Gen. Bar and Plate FMIC (600 HP Max)

Long Description: Front Mount Intercooler
Extended Description: Front Mount Intercooler, Part No. FM1573i, 2016-2021 Honda Civic L4-1.5L Turbo, 2017-2020 Honda Civic Si L4-1.5L Turbo.
Associated Comments: No piping included. Optional intercooler piping kit available. Part # SES1573ICP

Compatible Throttle Controller: PT0018B
Prop 65 (C, R or CR): CR
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 Yes/No: Yes
Title: Injen Front Mount Intercooler

FITMENT NOTES

2016-2021 Honda Civic
