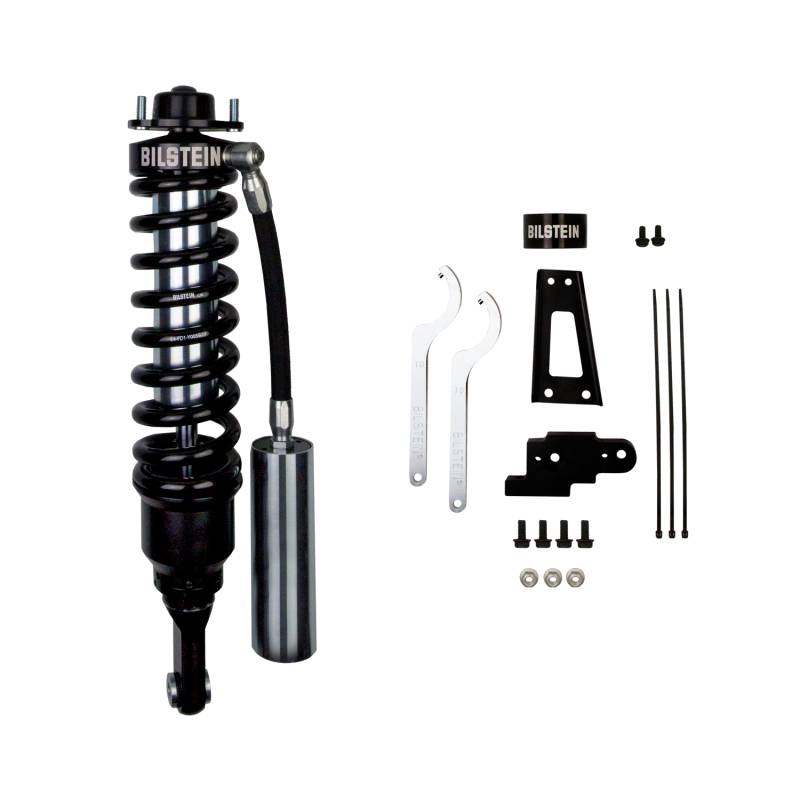

Bilstein B8 8112 Series 05-15 Toyota Tacoma Zone Control Monotube Front Right Corner Module

Bilstein 41-269299 B8 8112 (ZoneControl CR) - Front Right Corner Module

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit position sensitive coilover designed for light trucks and SUV�s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8� (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
60mm remote reservoir for increased oil capacity and cooling

ADDITIONAL INFORMATION

Bilstein B8 8112 Series 05-15 Toyota Tacoma Zone Control Monotube Front Right Corner Module

Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Coilover)
Body Diameter (ID): 60mm
Body Material: Steel
Boot Included: No
California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN): 17.99
Collapsed Length (MM): 456.9
Extended Length (IN): 22.96
Extended Length (MM): 583.1
Finish: Dampers: Zinc Plated/Springs: Black
Internal Design: Monotube
Lower Mount Type: Eye 14.1mm
Optional Heavy Load Springs: 53-291394, 53-291387
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Reservoir: Yes
Segment: Light Truck
Series: B8 8112 (ZoneControl CR)
Spring Seat Included: Yes
Title: Bilstein Shock Absorbers
Upper Mount Type: Special

FITMENT NOTES

No Applications
