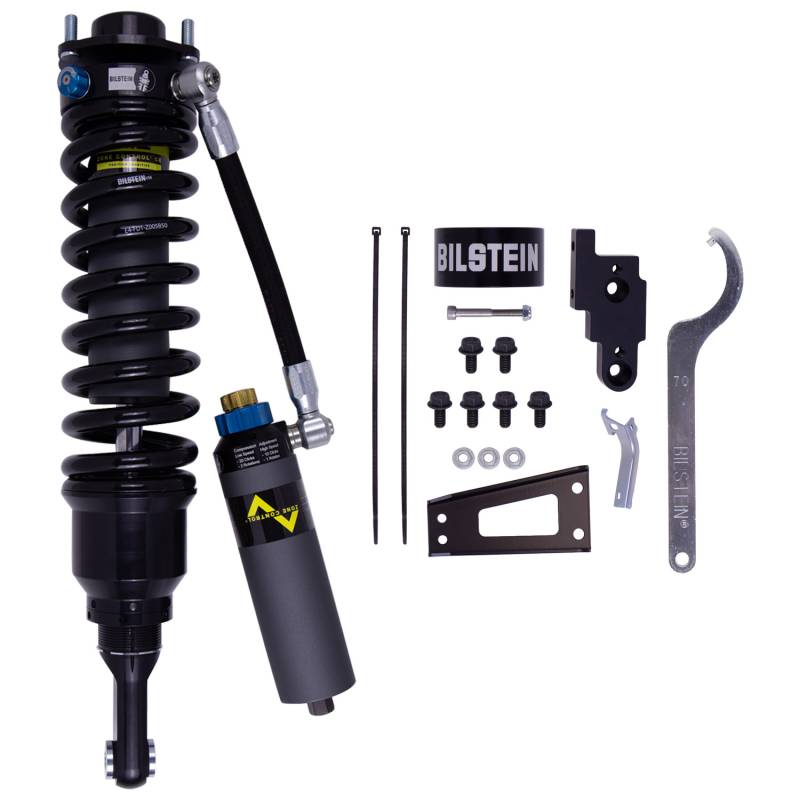

Bilstein B8 8112 Series 05-22 Toyota Tacoma Front Right Shock Absorber and Coil Spring Assembly

Bilstein 41-319581 B8 8112 (ZoneControl CR DSA+) - Front Right Corner Module

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit 3-way adjustable 60mm position sensitive coilover shock designed for light trucks and SUV�s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-2.6� (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.

ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
60mm remote reservoir for increased oil capacity and cooling

ADDITIONAL INFORMATION

Bilstein B8 8112 Series 05-22 Toyota Tacoma Front Right Shock Absorber and Coil Spring Assembly

Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Body Design: Smooth Body (Coilover)
Body Diameter (ID): 60mm
Body Material: Steel
Boot Included: No
California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN): 17.42
Collapsed Length (MM): 442.6
Extended Length (IN): 22.39
Extended Length (MM): 568.8
Finish: Dampers: EVO Grey/Springs: Black
Internal Design: Monotube
Lower Mount Type: Eye 15.88mm
Optional Heavy Load Springs: 53-291394, 53-291387
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Reservoir: Yes
Segment: Light Truck
Series: B8 8112 (ZoneControl CR DSA+)
Spring Seat Included: Yes
Title: Bilstein Shock Absorbers
Upper Mount Type: Special

FITMENT NOTES

Toyota Tacoma 2023-2005
