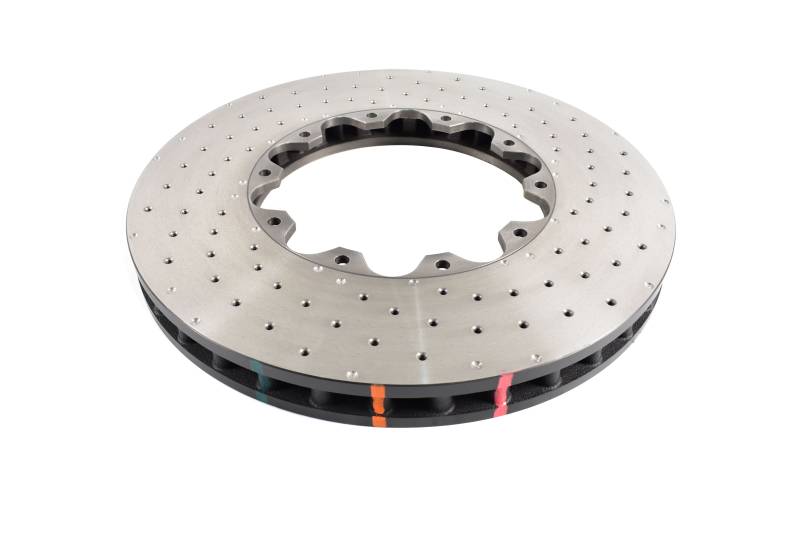

DBA 19+ Chevrolet Camaro ZL1 (w/ M6 Nuts) 5000 Series Cross Drilled & Dimpled Brake Rotor

Front 5000 Series XD Brake Ring

5000 SERIES XD features non directional cross drilled and dimpled design. The XD finish provides cooling benefits above the HD finish along with enhanced sports aesthetics.

Sharing all the benefits of the 4000 SERIES 5000 SERIES rotors are a composite 2 piece direct replacement brake rotor. We use only the highest quality materials to ensure optimal performance under the most strenuous circumstances combining high carbon cast iron rings with aerospace grade aluminium hats (T6061-T6) held together with National Aerospace Standards (NAS) bolts and crimp nuts.

Slots/chamfers for quiet & responsive feel;
DBA offers direct replacement brake rotors designed for drivers seeking upgraded performance braking above and beyond standard OE levels. Its performance series are cast from high carbon alloyed iron and undergo Thermal Stability Profiling (TSP) allowing DBA?s metallurgy to handle increased stress and heat generated under intense braking applications time and time again. Featuring DBA?s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

ADDITIONAL INFORMATION

DBA 19+ Chevrolet Camaro ZL1 (w/ M6 Nuts) 5000 Series Cross Drilled & Dimpled Brake Rotor

Title: DBA Front 5000 Series XD Brake Ring - DBA53916.1XD
Discard Thickness: 36 MM
Nominal Thickness: 36 MM
Overall Height: 36 MM
Outside Diameter: 390 MM
Surface Type: Drilled Slotted
Solid Or Vented Type Rotor: Vented
Center Hole Diameter: 179 MM
Stud/Lug Hole Quantity: 10

FITMENT NOTES

2016-2022 Chevrolet Camaro
2017-2019 Cadillac CTS
