TEIN FLEX Z Coilovers 2009-2021 NISSAN 370Z NISMO Z34 NISMO COUPE 3700 FR

FLEX Z inherits all the features and quality of STREET FLEX but the adoption of new platform allows its price to be set at amazingly low range.

After careful consideration, we came to the conclusion that we need to establish new manufacturing system and to develop new product platform, in order to achieve low prices the customers demand. Until now, all TEIN dampers can be disassembled for overhaul; however, we introduce new "Sealed Structure" to FLEX Z.

Full-Length Ride Height Adjustment Feature
Twin-Tube Structure
Damping Force Adjustment System
Complete Kit with Upper Mount
1-Full-Car-Kit
Ride Height Adjustment with Little or No Change in Ride Quality
For Low Resiliency & Securing Sufficient Stroke
16-level Linear Damping Force Adjustment System
Exclusively Designed Upper Mounts are Included (Except Some Models)
Complete Suspension Kit of 4 Shock Absorbers & 4 Springs

ADDITIONAL INFORMATION

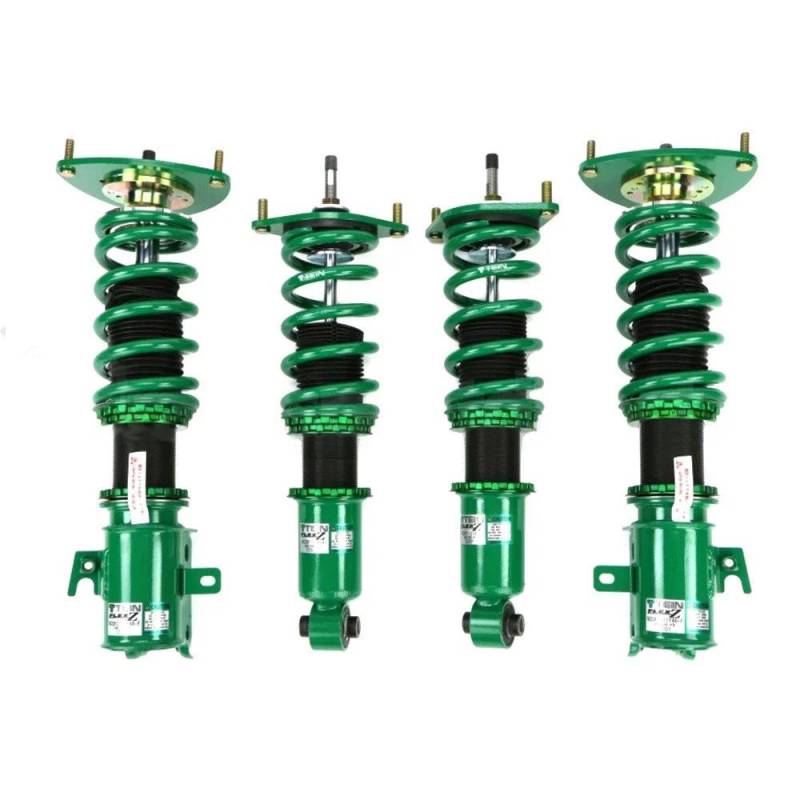

Image is only a representation of coilovers. TEIN doesn't have vehicle specific images. Your coilovers will be specific to your vehicle.

PRODUCT: FLEX Z
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT: Y
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
FRONT UPPER MOUNT: R/U
FRONT RECOMMENDED RIDE HEIGHT (mm): -20
FRONT RECOMMENDED RIDE HEIGHT (inch): -0.8
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -102
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -4
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 15
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0.6
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -30
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -1.2
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -10
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -0.4
FRONT SPRING RATE (kgf/mm): 12
FRONT SPRING RATE (lbs/in): 672
FRONT SPRING SP PART#: SY120-13225-C
FRONT SPRING FREE LENGTH (mm): 225
FRONT SPRING I.D. (mm): ID70
REAR DAMPING FORCE ADJUSTMENT: Y
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
REAR UPPER MOUNT: R/U
REAR RECOMMENDED RIDE HEIGHT (mm): -20
REAR RECOMMENDED RIDE HEIGHT (inch): -0.8
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -38
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -1.5
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 4
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0.2
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -30
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -1.2
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -10
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -0.4
REAR SPRING RATE (kgf/mm): 10
REAR SPRING RATE (lbs/in): 560
REAR SPRING SP PART#: S5P93-13100-C
REAR SPRING FREE LENGTH (mm): 232
REAR SPRING I.D. (mm):
EDFC COMPATIBILITY: COMPATIBLE
EDFC FITTING DETAIL: FT/RR: MOTOR NEEDS TO BE INSTALLED ONTO SHOCK ABSORBER AND CHECKED FOR PROPER OPERATION, BEFORE INSTALLING TO THE VEHICLE. RR: MOTOR, CABLE AND JOINT PARTS NEED TO BE WATERPROOFED WITH SILICON SEALANT.
EDFC MOTOR KIT 1: EDK05-12120
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT:
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: NOTE:6CYL/EXC. CONVERTIBLE

FITMENT NOTES

MAKE: NISSAN
MODEL: 370Z NISMO
YEAR: 2009-2021
CHASSIS: Z34
TRIM: NISMO COUPE
MOTOR SIZE: 3700
DRIVETRAIN: FR
