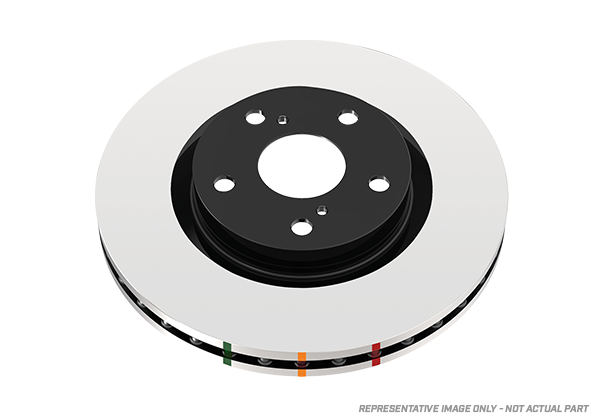

DBA 90-01 Acura Integra Rear 4000 Series Plain Rotor

Rear 4000 Series HD Brake Rotor

4000 SERIES HD variant features a smooth OE style rotor finish popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look such as controlled race divisions.

4000 SERIES disc brake rotors are a direct replacement single piece brake rotor designed for drivers seeking upgraded performance braking above and beyond standard OE levels.

Slots/chamfers for quiet & responsive feel;
DBA offers direct replacement brake rotors designed for drivers seeking upgraded performance braking above and beyond standard OE levels. Its performance series are cast from high carbon alloyed iron and undergo Thermal Stability Profiling (TSP) allowing DBA?s metallurgy to handle increased stress and heat generated under intense braking applications time and time again. Featuring DBA?s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

ADDITIONAL INFORMATION

DBA 90-01 Acura Integra Rear 4000 Series Plain Rotor

Title: DBA Rear 4000 Series HD Brake Rotor - DBA4475
Discard Thickness: 9 MM
Nominal Thickness: 9 MM
Overall Height: 48 MM
Outside Diameter: 239 MM
Surface Type: Smooth
Solid Or Vented Type Rotor: Solid
Center Hole Diameter: 61 MM
Stud/Lug Hole Quantity: 4

FITMENT NOTES

1988-1989 Honda Prelude
1989-1989 Honda Accord
1990-1991 Honda CRX
1990-2001 Acura Integra
1992-2000 Honda Civic
