Clutch Masters 14-18 BMW F80 M3/F82 M4 S55 6-Speed FX1000 Race Twin Disc Clutch Kit w/o Flywheel

FX1000 Twin Disc Clutch Kit

Conversion kit will not work with OEM flywheel built to work exclusively with Clutch Masters flywheel

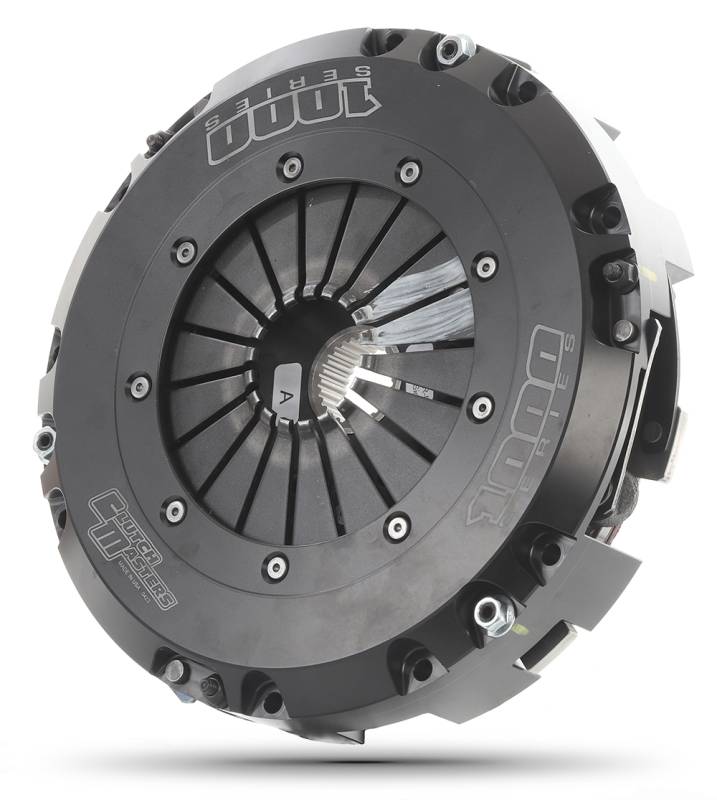

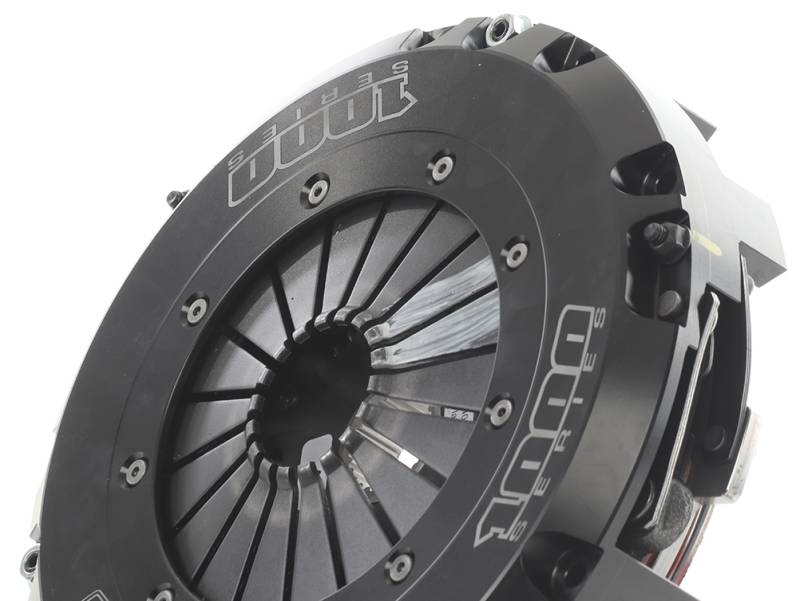

The Clutch Masters FX1000 is a 10.00" (254mm) Twin Disc clutch unit designed for high horsepower applications that performs well on the track and can even withstand heavy street use. The strap-driven plate design allows for smooth engagement and minimal clutch chatter while still being able to withstand hard launching clutch kicking and high RPM shifting. Designed for the enthusiast who pushes the limits of performance on their high powered vehicle and wants to maintain excellent pedal feel.; The cover assembly is machined from billet aluminum and is then Type 3 hard anodized. Our billet covers have roughly 25% more tensile strength than the competition�s cast unit. By focusing our ability on machining the strongest cover possible while maintaining minimal weight we are basically able to eliminate any flex in the cover. Our billet covers see only .003" of flex where as a cast or stamped unit can see as much as .030" of flex. By eliminating this flex in the cover the driver is able to operate the clutch much more consistently and confidently. All the movement being applied to the diaphragm of the clutch from the throwout bearing is used solely to engage and disengage the clutch and isn't wasted by the cover flexing first. The strength of our covers also results in greater clamping force over the same amount of area vs. a cast or stamped cover. This means our twin discs are easy to drive and have superior clamping force to make sure all the power your engine is making is being utilized.

ADDITIONAL INFORMATION

Clutch Masters 14-18 BMW F80 M3/F82 M4 S55 6-Speed FX1000 Race Twin Disc Clutch Kit w/o Flywheel

Title: Clutch Masters 03795-TDKR-X FX1000 Twin Disc Clutch Kit
Alignment Tool Included: Yes
Disc Material: Dual Ceramic
Disc Type: Sprung
Flywheel Bolts Included: No
Flywheel Included: No
Pilot Bearing Included: No
Pressure Plate: 10" Billet Aluminum
Pressure Plate Bolts included: Yes
Release Bearing Included: Yes
Torque Capacity Rating: 1000 ft.lbs

FITMENT NOTES

2015-2018 BMW M3
2015-2019 BMW M4
