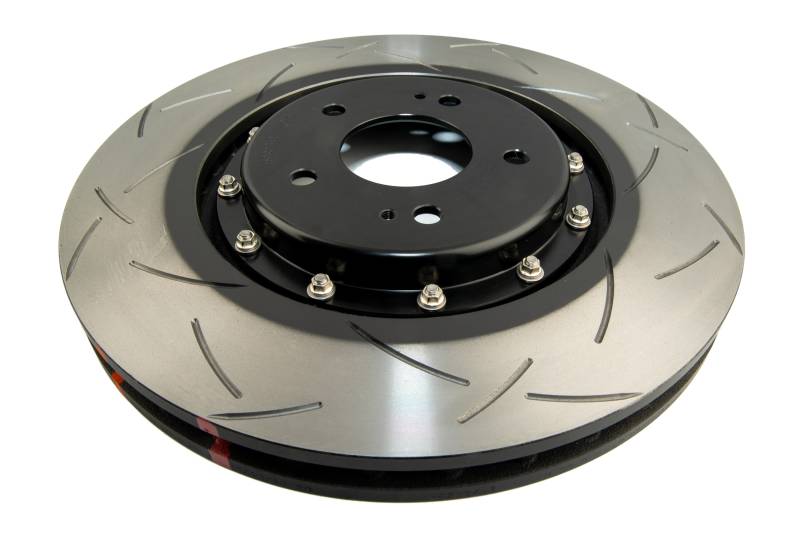

DBA 08+ EVO X Front Slotted 5000 Series 2 Piece Rotor Assembled w/ Black Hat

Front 5000 Series T3 Brake Rotor

5000 Series T3 is the ultimate in direct replacement 2 piece performance brake rotors. Featuring all the benefits of the 5000 Series along with DBA?s patented world renowned T3 bi directional slot design.

Sharing all the benefits of the 4000 SERIES 5000 SERIES rotors are a composite 2 piece direct replacement brake rotor. We use only the highest quality materials to ensure optimal performance under the most strenuous circumstances combining high carbon cast iron rings with aerospace grade aluminium hats (T6061-T6) held together with National Aerospace Standards (NAS) bolts and crimp nuts.

Slots/chamfers for quiet & responsive feel;
DBA offers direct replacement brake rotors designed for drivers seeking upgraded performance braking above and beyond standard OE levels. Its performance series are cast from high carbon alloyed iron and undergo Thermal Stability Profiling (TSP) allowing DBA?s metallurgy to handle increased stress and heat generated under intense braking applications time and time again. Featuring DBA?s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

ADDITIONAL INFORMATION

DBA 08+ EVO X Front Slotted 5000 Series 2 Piece Rotor Assembled w/ Black Hat

Title: DBA Front 5000 Series T3 Brake Rotor - DBA52224V2BLKS
Discard Thickness: 32 MM
Nominal Thickness: 32 MM
Overall Height: 43.5 MM
Outside Diameter: 350 MM
Surface Type: Slotted
Solid Or Vented Type Rotor: Vented
Center Hole Diameter: 69 MM
Stud/Lug Hole Quantity: 5

FITMENT NOTES

2008-2016 Mitsubishi Lancer
