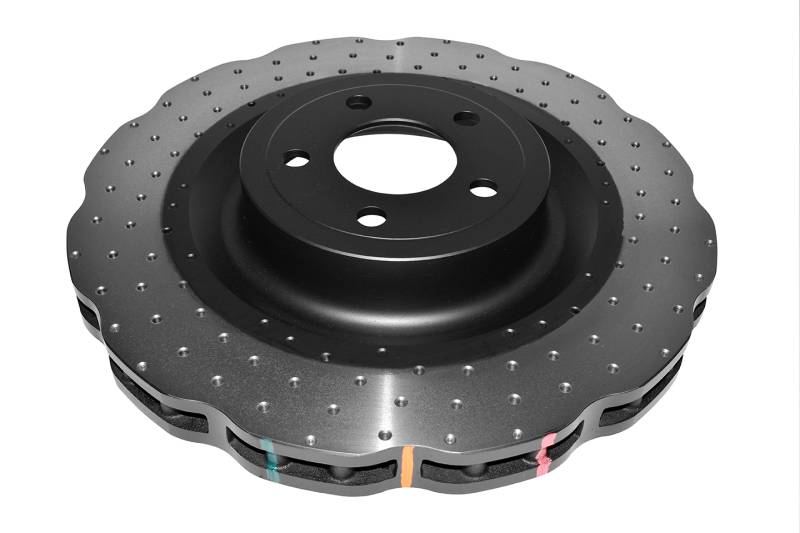

DBA 15-20 Ford Mustang GT Perf Package (380mm Front Rotor) Front 4000 Series Cross Drilled Rotor

Front 4000 Series XD Brake Rotor

4000 SERIES XD features DBA?s non directional cross drilled and dimpled rotor design. The XD finish provides additional cooling benefits above the HD spec along with enhanced sports aesthetics.

4000 SERIES disc brake rotors are a direct replacement single piece brake rotor designed for drivers seeking upgraded performance braking above and beyond standard OE levels.

Slots/chamfers for quiet & responsive feel;
DBA offers direct replacement brake rotors designed for drivers seeking upgraded performance braking above and beyond standard OE levels. Its performance series are cast from high carbon alloyed iron and undergo Thermal Stability Profiling (TSP) allowing DBA?s metallurgy to handle increased stress and heat generated under intense braking applications time and time again. Featuring DBA?s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

ADDITIONAL INFORMATION

DBA 15-20 Ford Mustang GT Perf Package (380mm Front Rotor) Front 4000 Series Cross Drilled Rotor

Title: DBA Front 4000 Series XD Brake Rotor - DBA42166WXD
Discard Thickness: 34 MM
Nominal Thickness: 34 MM
Overall Height: 64 MM
Outside Diameter: 380 MM
Surface Type: Drilled Slotted
Solid Or Vented Type Rotor: Vented
Center Hole Diameter: 71.05 MM
Stud/Lug Hole Quantity: 5

FITMENT NOTES

2015-2022 Ford Mustang
