DSS 2004-2006 GTO Anti-Wheel Hop 1000Hp Axles GM41

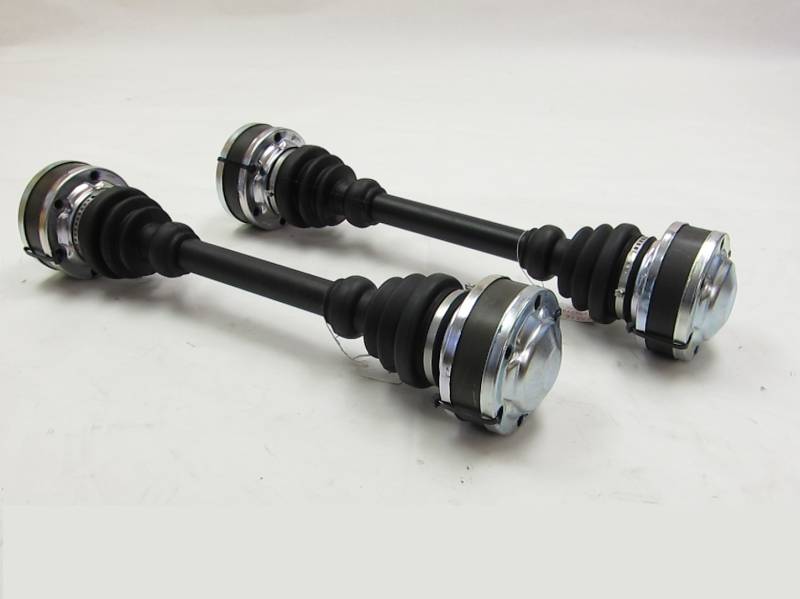

2004-2006 GTO 1000Hp Axles (Pair)

What we have done differently: Our skinny bar is smaller in diameter than a stock 28 spline 108mm CV would use and its made from 300m. We have rolled the spline onto a ground piece of the material that during the rolling process raises the spline above the center diameter of the bar (this is done with all rolled splines DSS uses). This allows us to make the axle without an internal snap ring so there is no internal groove for a square-edged stress riser during torsional shock loading. We then make the Big bar using our 300m material but it's made with a 1-1/2 diameter to balance out the strength. This also has rolled splines so at the edge where the race meets the spline (area of most failures) it is much stronger due to the re-forming of the same material instead of taking away grain structure/material like a cut spine. So if you're running a car up to or around the 1000hp range (keep in mind auto and 6 speed cars will have different effects on Hp ratings) and want to reduce some of the wheel hop this just might be the axle set for you.

ADDITIONAL INFORMATION

Driveshaft Shop 2004-2006 GTO Anti-Wheel Hop 1000Hp Axles GM41

Description: GM41 1000HP Anti-Wheel Hop Axle Set (No Stubs)
Legacy ID: GM41

Sold individually

FITMENT NOTES

None
