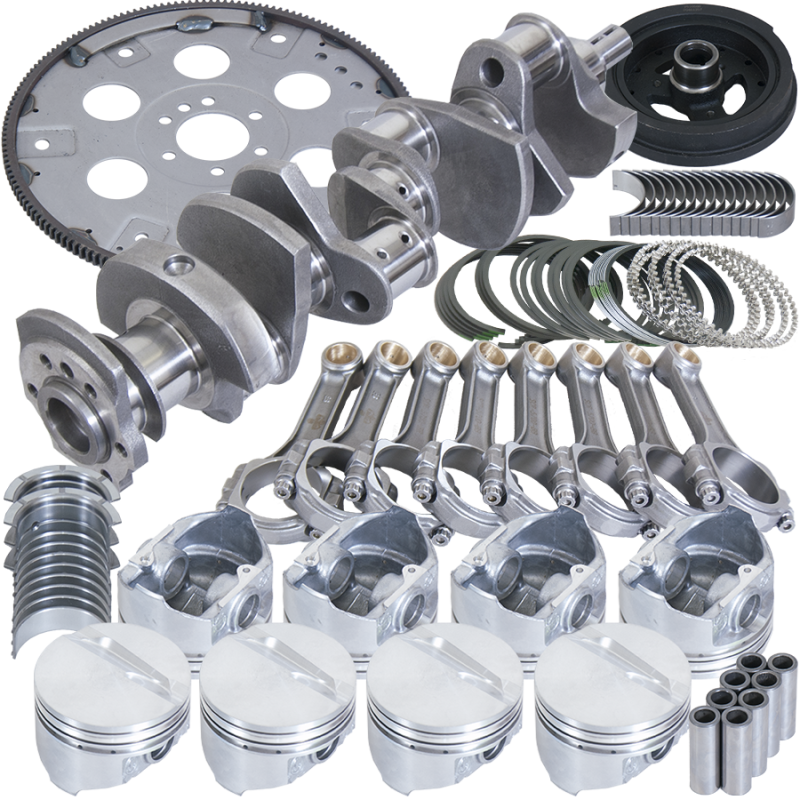

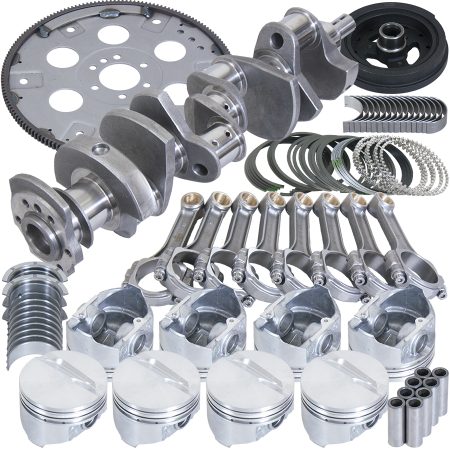

Eagle Chevrolet Small Block 5140 Steel I-Beam Balanced Rotating Assembly Kit

BALANCED 3.750" Cast Crank,5.700" I-BEAM Rods,3/8" ARP 8740 BOLTS,HYPEREUTECTIC KB -7CC FLAT TOP 4.030" PISTONS,PLASMA-MOLY FILE-FIT RINGS,KING SI Rod/MAIN BEARINGS, DAMPER, AND FLEXPLATE.

Eagle Street & Strip Rotating Assemblies are perfect for pump gas, naturally aspirated, street vehicles.

Service: Eagle connecting rods and cranks are designed and manufactured to our specifications. Some simply purchase generic products and package in their boxes without having any control or input in production. Eagle uses only certified steel in production of their steel cranks and rods. No shortcuts are taken that might compromise the quality of the finished piece. We use multi-stage heat treating, sonic testing, magna-fluxing, and x-ray to ensure a reliable product. While Eagle may not be the least expensive
Balanced externally by Eagle using Hines computerized balancing equipment.

ADDITIONAL INFORMATION

Eagle Chevrolet Small Block 5140 Steel I-Beam Balanced Rotating Assembly Kit

Assembly Balanced: Yes
Assembly Type: Balanced Street & Strip Assembly
Balance Type: External
Bore: 4.03
Connecting Rod Bolt Diameter: 3/8 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: I-Beam
Connecting Rod Length: 5.700 in
Connecting Rod Material: Forged 5140 steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.449 in
Crankshaft Material: Cast Steel
Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.100 in
Crankshaft Stroke: 3.750 in
Cylinder Bore Diameter: 4.030 in
Damper Included: Yes
Flexplate/Flywheel Included: 168 Tooth Flexplate
Main Bearing Type: O.E. Replacement
Main Bearings Included: Yes
Oil Rail Support Included: No
Piston Brand: KB
Piston Dome Volume: -7cc
Piston Face Type: flat top
Piston Material: hypereutectic Aluminum
Piston Pin Diameter: .927 in
Piston Pin Type: Full Floating
Piston Ring Gap: Standard
Piston Ring Thickness: 5/64 in, 5/64 in, 3/16 in
Piston Type: Flat Top Hypereutectic
Product Line: Street & Strip
Prop 65 (C, R or CR): C
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 Yes/No: Yes
Rod Bearing Type: O.E. replacement
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Title: ESP Balanced Street & Strip Assembly Chevy 350
Top Piston Ring Type: Barrel Faced Plasma-Moly
Associated Comments: Minor clearancing of block at pan rails required.

FITMENT NOTES

None
