DBA 16-18 Mazda MX-5 Miata Front Slotted Street Series Rotor

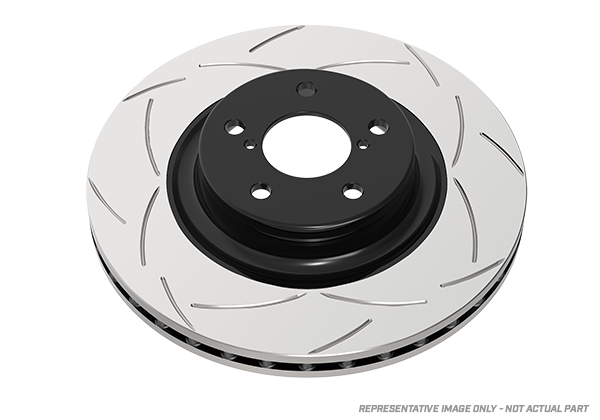

Front Street Series T2 Brake Rotor

Street Series T2 rotor provides all the benefits of DBA?s Street Series direct replacement rotors with the added benefit of the introduction of DBA?s patented T2 slot design.

STREET SERIES direct replacement rotors are ideal for drivers seeking an OE level performance upgrade.

Slots/chamfers for quieter responsive pedal;
DBA offers direct replacement brake rotors designed for drivers seeking upgraded performance braking above and beyond standard OE levels. Its performance series are cast from high carbon alloyed iron and undergo Thermal Stability Profiling (TSP) allowing DBA?s metallurgy to handle increased stress and heat generated under intense braking applications time and time again. Featuring DBA?s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

ADDITIONAL INFORMATION

DBA 16-18 Mazda MX-5 Miata Front Slotted Street Series Rotor

Title: DBA Front Street Series T2 Brake Rotor - DBA2964S
Discard Thickness: 22 MM
Nominal Thickness: 22 MM
Overall Height: 44 MM
Outside Diameter: 280 MM
Surface Type: Slotted
Solid Or Vented Type Rotor: Vented
Center Hole Diameter: 55.02 MM
Stud/Lug Hole Quantity: 4

FITMENT NOTES

2016-2018 Mazda MX-5
2016-2023 Mazda MX-5 Miata
2017-2020 Fiat 124 Spider
2020-2023 Mazda CX-30
