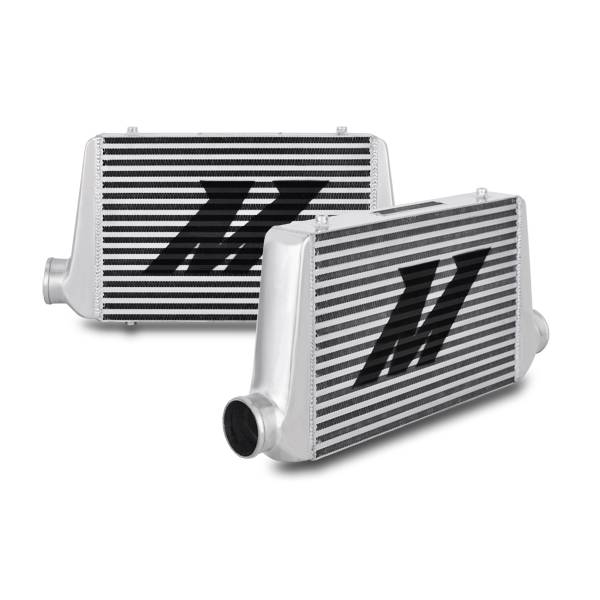

Mishimoto Universal Silver G Line Bar & Plate Intercooler Overall Size: 24.5x11.75x3 Core Size: 17.5

Mishimoto Universal Intercooler G-Line

Sleek and stylish this universal front-mount intercooler will provide the perfect cooling capacity needed for smaller turbo applications.All Mishimoto intercoolers are constructed of 6061 aluminum and are TIG welded to perfection.Note: For your taste only one side of the intercooler has the Mishimoto logo.

Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
Robust one-piece cast aluminum end tanks withstand high boost pressures
Four M8 x 1.25 threaded universal mounting points
Constructed with 6061 aluminum
Tig welded to perfection
Mishimoto Lifetime Warranty

ADDITIONAL INFORMATION

Install Difficulty: 3
OptionLabel: Silver
SellingPoint01: Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
SellingPoint02: Robust, one-piece cast aluminum end tanks withstand high boost pressures
SellingPoint03: Four M8 x 1.25 threaded universal mounting points for a universal fit
SellingPoint04: Constructed from durable 6061-aluminum
SellingPoint05: Precision TIG-welded joints won't crack under pressure
SellingPoint06: Mishimoto Lifetime Warranty
SellingPoint07: N/A
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 11.75
TechSpec Core Length (in): 17.5
TechSpec Core Thickness (in): 2.76
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: N/A
TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 3
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 32
TechSpec Maximum Recommended Horsepower: 800
TechSpec Note: N/A
TechSpec Outlet (in): 3
TechSpec Overall Height (in): 13.1
TechSpec Overall Length (in): 24.5
TechSpec Overall Width (in): 3
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

None
