Mishimoto 2016+ Chevrolet Camaro 2.0T / 2013+ Cadillac ATS 2.0T Intercooler Kit - Wrinkle Black

16+ Chevrolet Camaro 2.0T Intercooler Kit

It's time to give the intercooling system in your 2016+ Chevrolet Camaro 2.0T or 2013+ Cadillac ATS a complete overhaul with the Mishimoto Performance Intercooler Kit. Our bar-and-plate constructed core picks up the slack for the stock unit by offering increased heat rejection characteristics as well as a boost in airflow. On top of the new construction our design increases the internal core volume by 45-percent and offers a whopping 239-percent gain in external fin surface area making sure that the charged air running through your LTG is as chilled as possible. Our kit also includes a set of our mandrel-bent intercooler piping featuring a range of 2.25-2.75? diameters equating in a 30-percent increase in volume and 10-percent better flow of the charged air. All together our piping kit gits your LTG powered Camaro or ATS up to 11 additional horsepower and 9 ft-lbs of torque. We have also included a pre-welded NPT port on the cold side piping that not only allows for easy installation of your stock equipment but also adding an aftermarket boost gauge or meth-injection is a breeze. The Mishimoto Performance Intercooler Kit for your 2013+ ATS or 2016+ Camaro is available with your choice of polished or wrinkle black piping and as always this kit is covered under the Mishimoto Lifetime Warranty.

Direct fit for the 2013-2018 Ford Focus ST
No modification to front bumper and retains stock fog lights
No modification to front bumper and retains stock fog lights
Mishimoto Lifetime Warranty
4.3" thick intercooler design optimized for maximum flow
8 hp/ 10 tq gains when combined with other Mishimoto Focus ST parts
Optimal core design for maximum cooling efficiency with minimal pressure drop
Increases core size by 128% and fin surface area by 32%
10% increase in volume and 40% increase in flow over stock cold-side pipe
14% increase in volume and 26% greater flow than stock hot-side pipe
Cold-side pipe has elliptical shape to accommodate for larger Mishimoto radiator
Provision for both US and Euro MAP sensor

ADDITIONAL INFORMATION

Install Difficulty: 4
OptionLabel: Wrinkle Black Piping
SellingPoint01: Direct fit for the 2016+ Chevrolet Camaro 2.0T and 2013+ Cadillac ATS 2.0T
SellingPoint02: 2-in thick intercooler design optimized for maximum airflow with minimal pressure drop
SellingPoint03: 45-percent increase in internal core volume and 239-percent increase in external fin surface area
SellingPoint04: 78-percent increase in core size
SellingPoint05: Cast end tanks with internal air diverter provide optimal airflow through intercooler
SellingPoint06: 30-percent greater internal volume than stock
SellingPoint07: 10-percent increase in flow
SellingPoint08: Utilizes stock quick-disconnect fittings for easy installation
SellingPoint09: Pre-welded NPT port on cold-side pipe allows for quick install of aftermarket meth injection or boost gauge
SellingPoint10: Piping available in polished and wrinkle black
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2016+ Chevrolet Camaro 2.0T--2013-2019 Cadillac ATS 2.0T
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: Alpha
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): 2
TechSpec Core Type: N/A
TechSpec Engine Codes: LTG

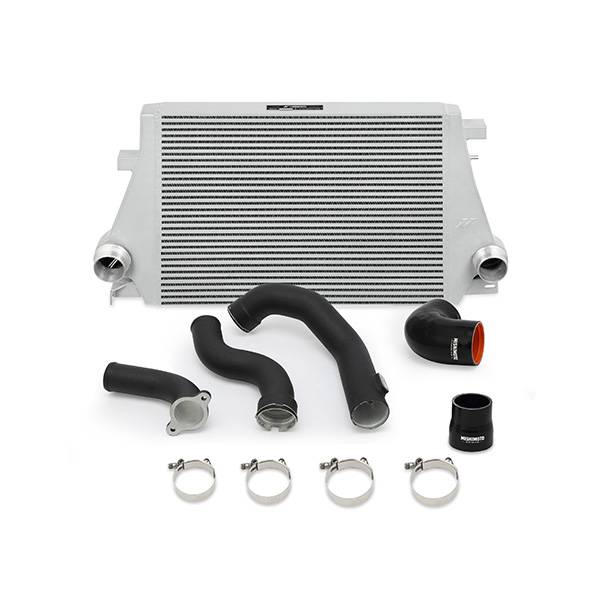

TechSpec Includes: (1) Aluminum Intercooler--(2) Aluminum Pipes w/ CNC-machined quick-disconnects--(1) Aluminum Pipe w/ CNC-machined 2-bolt flange--(2) Quick-Disconnect Spring Clips--(1) 2.75-in 90-degree Silicone Coupler--(1) 2.25-in to 2.5-in Silicone Transition Coupler--(1) 2.5-in T-bolt Clamp--(1) 2.75-in T-bolt Clamp--(2) 3-in T-bolt Clamps--(3) Tree Clips--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.4
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: 450
TechSpec Note: There is an O-ring inside of the stock intercooler pipe on the end that connects to the intercooler. This O-ring must be removed and installed into your Mishimoto intercooler pipe. Take note when removing it from the stock pipe as the O-ring must be installed in the correct direction. Please reference our installation video for additional information.
TechSpec Outlet (in): 2.4
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

2013-2019 Cadillac ATS
2016-2023 Chevrolet Camaro
