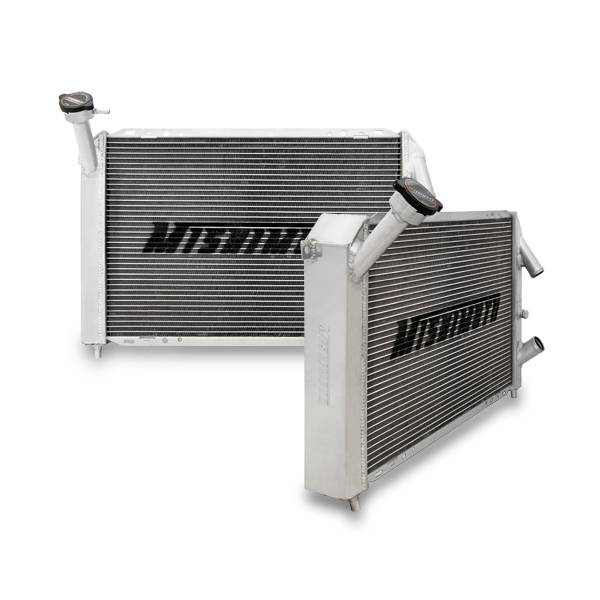

Mishimoto 93-95 Mazda RX7 w/ LS Engine Swap Manual Aluminum Radiator

LS-Swapped Mazda RX-7 Performance Aluminum Radiator

For those with an LS-swapped 1993-1995 Mazda RX-7 looking to enhance the overall performance and lifetime of their engine the Mishimoto performance aluminum radiator is the ideal cooling system upgrade.With no cutting or modification required for a direct drop-in fitment installation is easy and effortless.All Mishimoto radiators are designed and engineered to maximize cooling efficiency and most importantly protect your car from overheating.

Direct fit for the 1993-1995 FD Mazda RX7 with LSX engine swap
Mishimoto Lifetime Warranty
Provides a bolt-in cooling solution which simplifies the engine-swap process
Full aluminum construction including durable TIG-welded end tanks
Features a two-row 2.17-in thick efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Provides efficient temperature reduction for street and/or track use
Efficient temperature regulation for both stock and forced induction vehicles
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

ADDITIONAL INFORMATION

Install Difficulty: 3
SellingPoint01: Direct fit for the 1993-1995 FD Mazda RX7 with LSX engine swap
SellingPoint02: Provides a bolt-in cooling solution which simplifies the engine-swap process
SellingPoint03: Full aluminum construction including durable, TIG-welded end tanks
SellingPoint04: Features a two-row, 2.17-in thick, efficient brazed aluminum core
SellingPoint05: Increased fluid capacity and optimal heat dissipation
SellingPoint06: Provides efficient temperature reduction for street and/or track use
SellingPoint07: Efficient temperature regulation for both stock and forced induction vehicles
SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: FD
TechSpec Core Height (in): 15.75
TechSpec Core Length (in): 22.2
TechSpec Core Thickness (in): 2.17
TechSpec DPI: 2067
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: LS
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.38
TechSpec Material: Aluminum
TechSpec Note: Some modification may be necessary due to differences in chassis construction and vehicle manufacturing tolerances----This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.5
TechSpec Overall Height (in): 27.34
TechSpec Overall Length (in): 19.5
TechSpec Overall Width (ins): 2.67
TechSpec Rows: 2

FITMENT NOTES

1993-1995 Mazda RX-7
