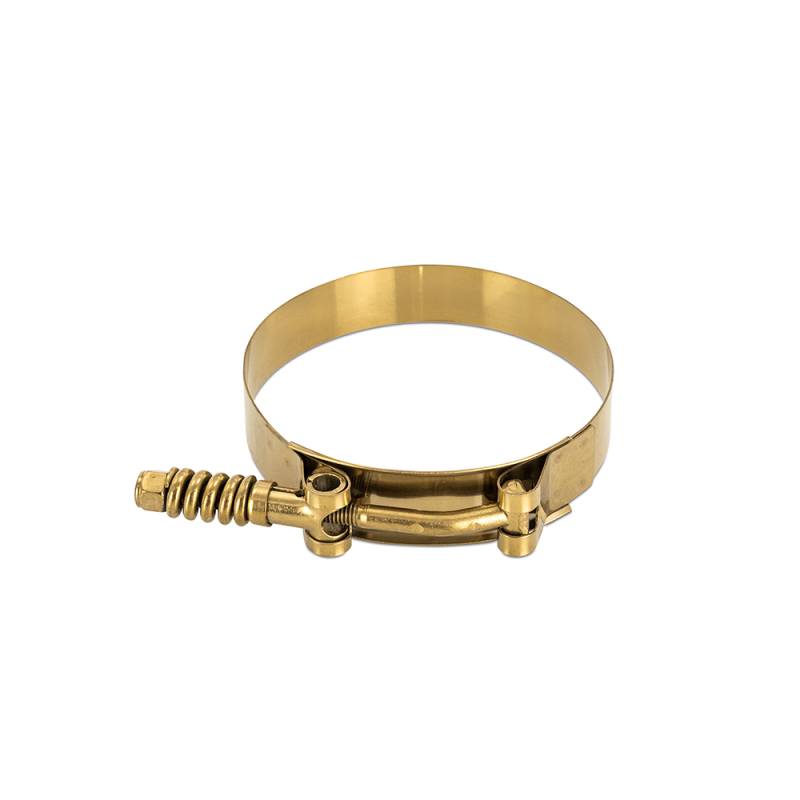

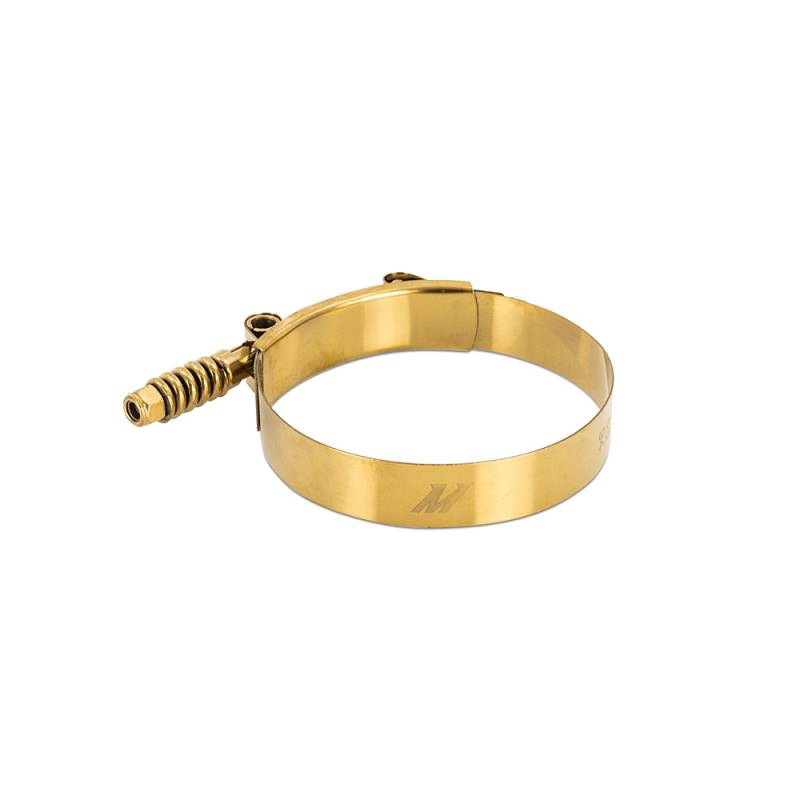

Mishimoto 3 Inch Stainless Steel Constant Tension T-Bolt Clamp - Gold

Mishimoto Stainless Steel Constant Tension T-Bolt Clamp 3-in Gold

Mishimoto's Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 2.87" - 3.19" (73mm - 81mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration. Like all Mishimoto clamps this 2.87" - 3.19" (73mm - 81mm) constant tension T-bolt clamp is backed by our Mishimoto Lifetime Warranty.

Securely clamps pipes couplers and hoses with an outer diameter from 2.87- 3.19-in (73mm-81mm)
Constant tension spring maintains clamping pressure through a wide range of temperatures
Included self-locking nut prevents loosening with movement and vibration
Stainless steel construction resists corrosion longer than zinc-plated clamps
Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
Clamps sold individually
Mishimoto Lifetime Warranty

ADDITIONAL INFORMATION

Install Difficulty: 1
OptionLabel: Gold
SellingPoint01: Securely clamps pipes, couplers, and hoses with an outer diameter from 2.87- 3.19-in (73mm-81mm)
SellingPoint02: Constant tension spring maintains clamping pressure through a wide range of temperatures
SellingPoint03: Included self-locking nut prevents loosening with movement and vibration
SellingPoint04: Stainless steel construction resists corrosion longer than zinc-plated clamps
SellingPoint05: Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
SellingPoint06: Clamps sold individually
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Band Width (in): 0.75
TechSpec Clamp Style: Constant Tension T-Bolt Clamp
TechSpec Includes: (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp--Mishimoto Lifetime Warranty
TechSpec Material: Stainless Steel
TechSpec Maximum Clamp Diameter (in): 3.19
TechSpec Minimum Clamp Diameter (in): 2.87
TechSpec Note: If using this clamp, we recommend purchasing: --MMICP-SS-21----MMICP-SS-250----MMICP-SS-259----MMICP-SS-251----MMICP-SS-30----MMICP-SS-39----MMICP-SS-31
TechSpec Recommended Tightening Torque: 27 in-lbs (3 NM)
TechSpec SAE Number: N/A

FITMENT NOTES

None
