Mishimoto 89-10 Powerstroke E4OD 4R100 5R110 Trans Pan Cast GR

Aluminum Transmission Pan fits Ford E4OD/4R100/5R110 Transmissions

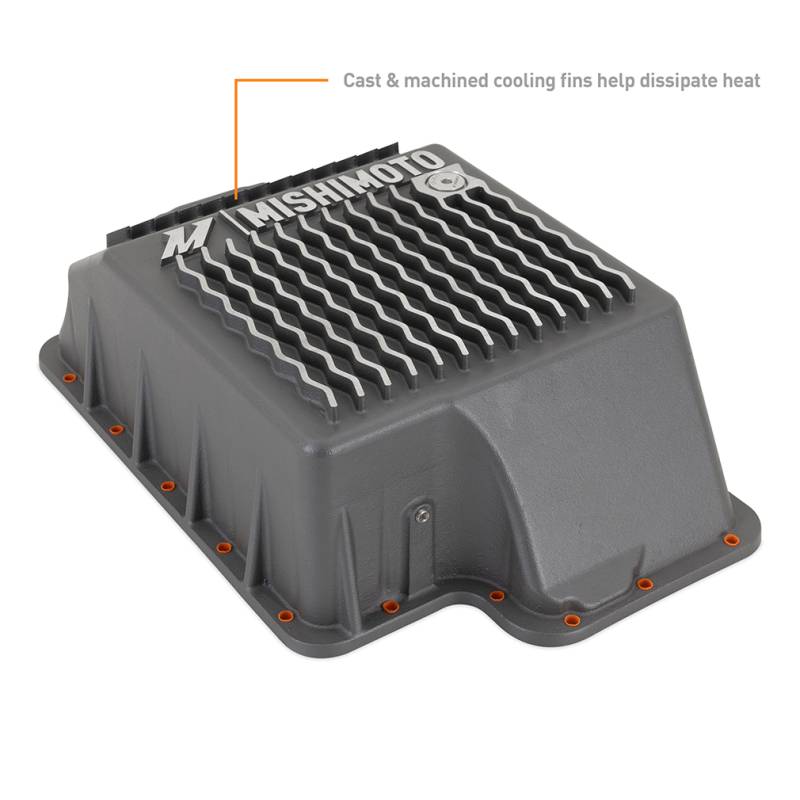

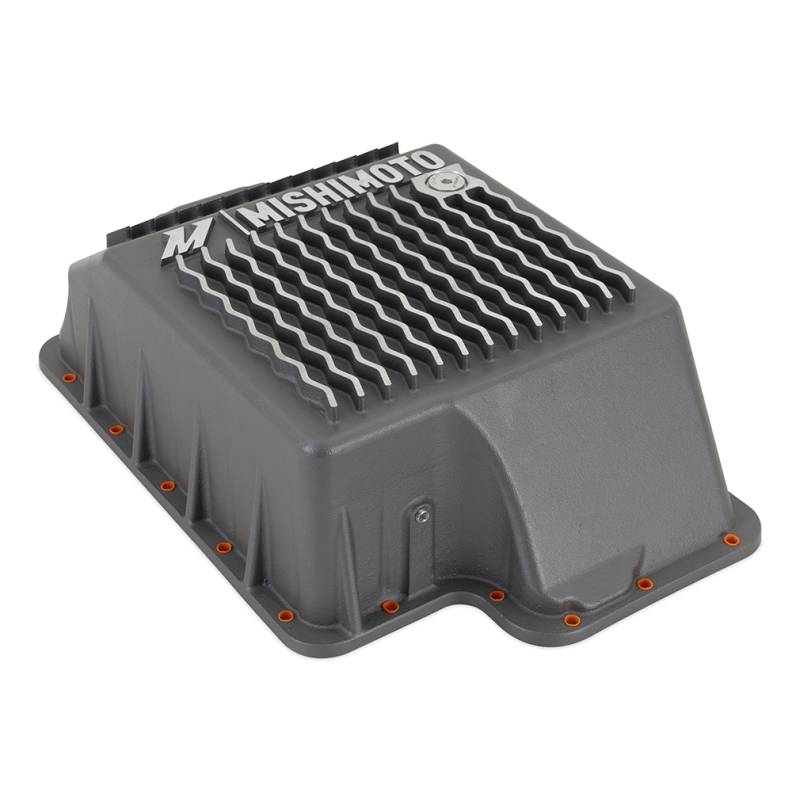

This Mishimoto Aluminum Transmission Pan is a direct-fit high-performance upgrade for your 1989-2010 Ford 7.3L 6.0L and 6.4L Powerstroke. Cast from high-quality aluminum and powder coated Gunmetal Gray our transmission pan is a robust and long-lasting upgrade for your vehicle's transmission. With a sleek design and bottom ribs this pan not only adds to the overall aesthetic of your truck but also provides improved cooling performance.----This transmission pan features internal baffles that reduce sloshing and enhance heat dissipation resulting in smoother transmission performance. Our casting features a precision-machined sealing surface ready to accept either a factory-style gasket or sealant of your choice (not included). Additionally the Mishimoto 1989-2010 Ford Powerstroke Aluminum Transmission Pan adds an extra 6.6 quarts of ATF to help maintain optimal transmission operation.----Fed up with the frustration of trying to hold up a transmission pan with one hand while threading the fasteners in with the other? Mishimoto has you covered with pre-installed bolt retainers that hold the fasteners in the pan allowing you to easily thread the bolts without dropping them on the ground your head or worse that pan of nasty transmission fluid you just drained. Additionally our pan comes equipped with a magnetic drain plug for easy draining and a 1/8-inch NPT port and plug for temperature sensors to make servicing your transmission and monitoring temperatures a breeze.----This direct-fit upgrade offers affordable durability and helps maintain smooth transmission operation ensuring a long life for your transmission. Like all Mishimoto products this transmission pan is backed by the Mishimoto Lifetime Warranty.

ADDITIONAL INFORMATION

Install Difficulty: 1
SellingPoint01: Direct fit for Ford E4OD/4R100/5R110 transmissions
SellingPoint02: Durable cast-aluminum construction for long-lasting performance
SellingPoint03: Increases fluid capacity by 6.6 quarts over the stock transmission pan for more cooling capacity
SellingPoint04: Bolt retainers hold fasteners in place for easy installation
SellingPoint05: Internal baffles reduce sloshing and enhance heat dissipation for smoother, more efficient transmission operation
SellingPoint06: 1/8-inch NPT port makes adding a temp sensor fast and easy
SellingPoint07: Precision-machined sealing surface helps prevent leaks
SellingPoint08: Magnetic drain plug makes servicing your transmission a breeze
SellingPoint09: Gunmetal gray powder coat finish adds style and function to your truck's undercarriage
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1989-2010 Ford 7.3L, 6.0L, 6.4L Powerstroke E4OD 4R100 5R110
TechSpec Caution: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Construction: N/A
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (qts): 6.64 (Pan)/ 13.64 (Total E4OD/4R100)/ 12 (Total 5R110)
TechSpec Includes: (1) Cast Aluminum Transmission Pan--(1) Magnetic Drain Plug--(20) Silicone Bolt Retainers--(20) Socket Head Cap Screws w/ Washers--(1) 1/8-in NPT Plug--Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: Drain Plug Torque Spec: 15 lb-ft----A pan gasket is not included with this product. Mishimoto recommends replacing it with OEM Part #F6TZ-7A191-A to ensure leak-free operation.
TechSpec Note: N/A
TechSpec Outlet: N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Rows: N/A

FITMENT NOTES

1992-1998 Ford E-350 Econoline
1992-2002 Ford E-350 Econoline Club Wagon
1999-2010 Ford F-250 Super Duty
1999-2010 Ford F-350 Super Duty
1999-2016 Ford E-350 Super Duty
2000-2002 Ford Expedition
2000-2004 Lincoln Navigator
2000-2005 Ford Excursion
2003-2005 Ford E-350 Club Wagon
2008-2014 Ford E-150
2008-2014 Ford E-250
