Mishimoto 2011+ Powerstroke 6R140 Transmission Pan - Cast - GR

Aluminum Transmission Pan fits Ford 6.7L Powerstroke 2011-2019

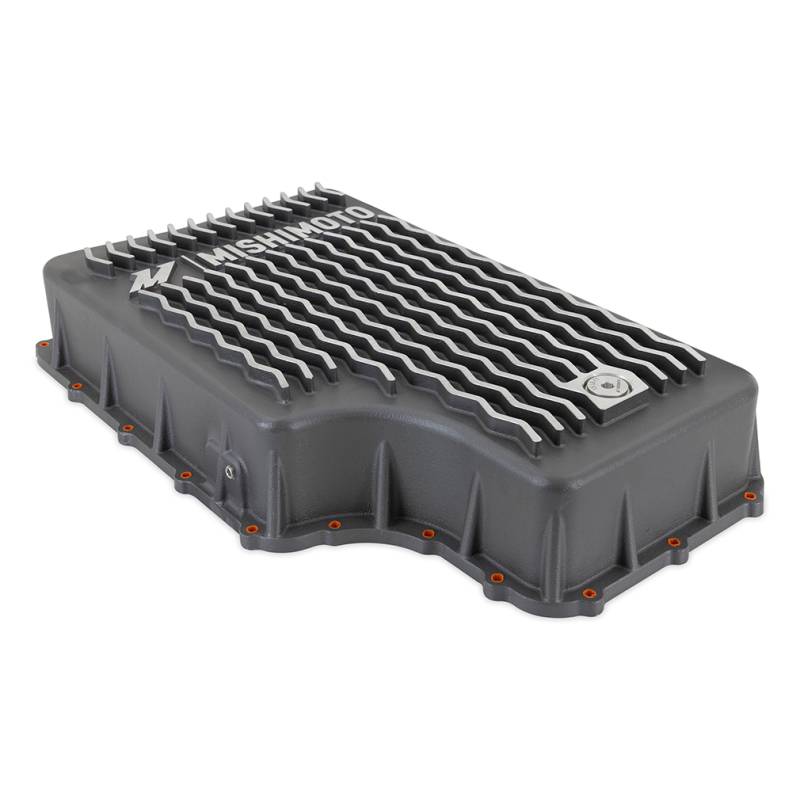

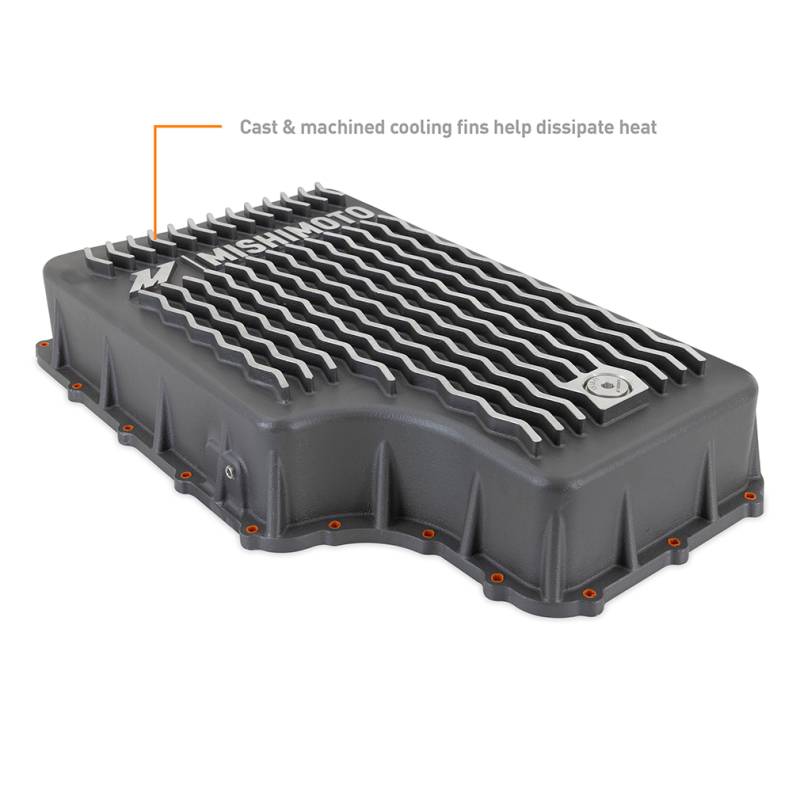

This Mishimoto Aluminum Transmission Pan is a direct-fit high-performance upgrade for your 2011-2019 Ford 6.7L Powerstroke. Cast from high-quality aluminum and powder coated Gunmetal Gray our transmission pan is a robust and long-lasting upgrade for your vehicle's transmission. With a sleek design and bottom ribs this pan not only adds to the overall aesthetic of your truck but also provides improved cooling performance.----This transmission pan features internal baffles that reduce sloshing and enhance heat dissipation resulting in smoother transmission performance. All the headaches that come with a flat gasket and messy sealants are eliminated with our precision-machined dovetail-style groove and O-ring seal. This groove positively retains the O-ring so you never have to worry about it falling out of place during installation. Additionally the Mishimoto 2011-2019 Ford 6.7L Powerstroke Aluminum Transmission Pan adds an extra 5.9 quarts of ATF to help maintain optimal transmission operation.----Fed up with the frustration of trying to hold up a transmission pan with one hand while threading the fasteners in with the other? Mishimoto has you covered with pre-installed bolt retainers that hold the fasteners in the pan allowing you to easily thread the bolts without dropping them on the ground your head or worse that pan of nasty transmission fluid you just drained. Additionally our pan comes equipped with a magnetic drain plug for easy draining and a 1/8-inch NPT port and plug for temperature sensors to make servicing your transmission and monitoring temperatures a breeze.----This direct-fit upgrade offers affordable durability and helps maintain smooth transmission operation ensuring a long life for your transmission. Like all Mishimoto products this transmission pan is backed by the Mishimoto Lifetime Warranty.

ADDITIONAL INFORMATION

Install Difficulty: 1
SellingPoint01: Direct fit for 2011-2019 Ford Super Duty 6.7L Powerstroke 6R140 Transmission
SellingPoint02: Durable cast-aluminum construction for long-lasting performance
SellingPoint03: Increases fluid capacity by 5.9 quarts over the stock transmission pan for more cooling capacity
SellingPoint04: Bolt retainers hold fasteners in place for easy installation
SellingPoint05: Internal baffles reduce sloshing and enhance heat dissipation for smoother, more efficient transmission operation
SellingPoint06: Dovetail-style groove with O-ring seal ensure a fool-proof, reliable seal
SellingPoint07: 1/8-inch NPT port makes adding a temp sensor fast and easy
SellingPoint08: Magnetic drain plug makes servicing your transmission a breeze
SellingPoint09: Gunmetal gray powder coat finish adds style and function to your truck's undercarriage
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2011-2019 Ford F-Series 6.2L/6.8L/7.3L Gas and 6.7L Powerstroke 6R140--2011-2019 Ford E-Series 6.8L 6R140
TechSpec Caution: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Construction: N/A
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (qts): 5.92 (Pan)/ 15.5 (Total)
TechSpec Includes: (1) Cast Aluminum Transmission Pan--(1) Magnetic Drain Plug--(19) Silicone Bolt Retainers--(19) Socket Head Cap Screws w/ Washers--(1) O-Ring Seal--(1) 1/8-in NPT Plug--Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: Drain Plug Torque Spec: 15 lb-ft
TechSpec Note: N/A
TechSpec Outlet: N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Rows: N/A

FITMENT NOTES

2011-2019 Ford F-350 Super Duty
2011-2022 Ford F-250 Super Duty
2015-2023 Ford E-350 Super Duty
