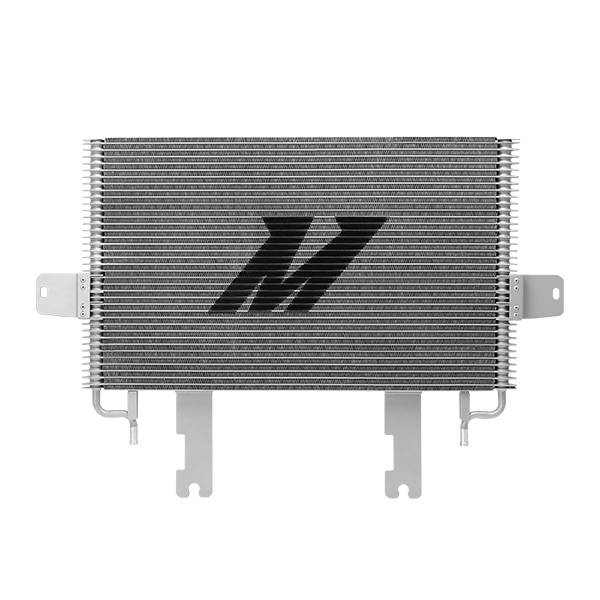

Mishimoto 03-07 Ford 6.0L Powerstroke Transmission Cooler

Ford 6.0L Powerstroke Transmission Cooler

Heavy loads are no match for a 2003-2007 6.0L Powerstroke equipped with the Mishimoto 6.0 transmission cooler. Complement your cooling system with the latest addition to Mishimoto's 6.0 Powerstroke performance parts the all-new 6.0 transmission cooler. The stock 6.0 Powerstroke transmission cooler does an ample job of keeping temperatures down but as the loads increase so do transmission temps. The 37-row Mishimoto'stacked plate cooler provides a larger surface area over both of the stock coolers. Core volume is increased by a whopping 21-percent and fluid capacity is increased by 1/3 qt. With the Mishimoto 6.0 transmission cooler high transmission fluid temperatures will be the least of your worries. The increased size of this 6.0L transmission cooler provides a proven 10+ F drop in transmission fluid temperature! No modifications are necessary for installation and just like all Mishimoto 6.0 Powerstroke parts this cooler comes with the Mishimoto Lifetime Warranty.

Direct fit for the 2003-2007 Ford 6.0L Powerstroke
Proven +10 F (+5.6 C) drop in transmission fluid temperature with no additional fluid pressure drop
No modification necessary for installation functions with all stock equipment
37-row stacked plate fluid cooler provides larger surface area over stock 31-row cooler
Mishimoto Lifetime Warranty

ADDITIONAL INFORMATION

Install Difficulty: 3
SellingPoint01: Direct fit for the 2003-2007 Ford 6.0L Powerstroke
SellingPoint02: Proven 10F (5.6C) drop in transmission fluid temperature with no additional fluid pressure drop
SellingPoint03: No modification necessary for installation, functions with all stock equipment
SellingPoint04: 37-row stacked-plate fluid cooler provides larger surface area over even the largest stock 31-row transmission cooler
SellingPoint05: Transmisson cooler core has a 21-percent increase in core volume compared to the factory 31-row transmission cooler
SellingPoint06: Increases transmission fluid capacity by 1/3 qt
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke----Also fits 1999-2003 Ford Superduty trucks with the 7.3 engine, however, the transmission cooler lines must be changed to �" OD prior to installation.
TechSpec Caution: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Construction: N/A
TechSpec Core Height (in): 16.13
TechSpec Core Length (in): 25.25
TechSpec Core Thickness (in): 1.25
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (qts): N/A
TechSpec Includes: Mishimoto Stacked-Plate Transmission Cooler--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: N/A
TechSpec Note: Will not work with vehicles that came equipped with a high mounted power steering cooler. These vehicles will need to relocate the power steering cooler to the lower mounting location.
TechSpec Outlet: N/A
TechSpec Overall Height (in): 23.5
TechSpec Overall Length (in): 34
TechSpec Overall Width (in): 1.34
TechSpec Rows: 37

FITMENT NOTES

2003-2005 Ford Excursion
2003-2007 Ford F-250 Super Duty
2003-2007 Ford F-350 Super Duty
2003-2007 Ford F-450 Super Duty
2003-2007 Ford F-550 Super Duty
