Mishimoto 2023+ Nissan Z Skid Plate Engine - Wrinkle Black

Mishimoto Skid Plate Fits Nissan Z 2023+

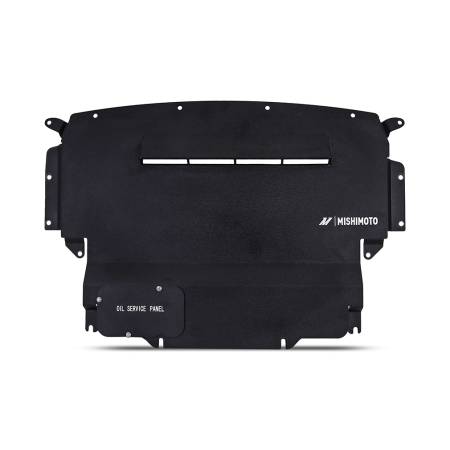

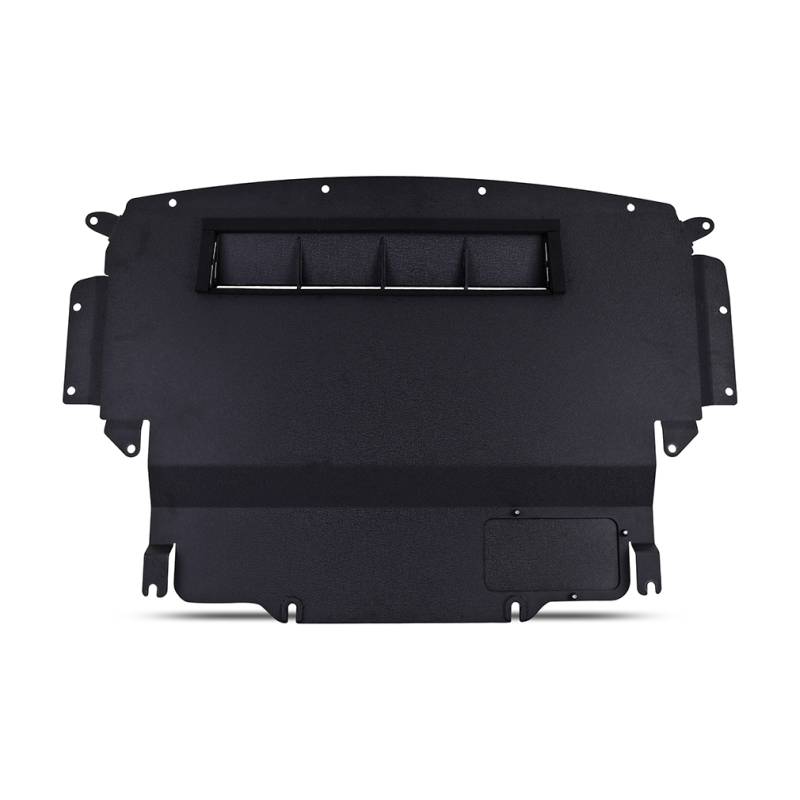

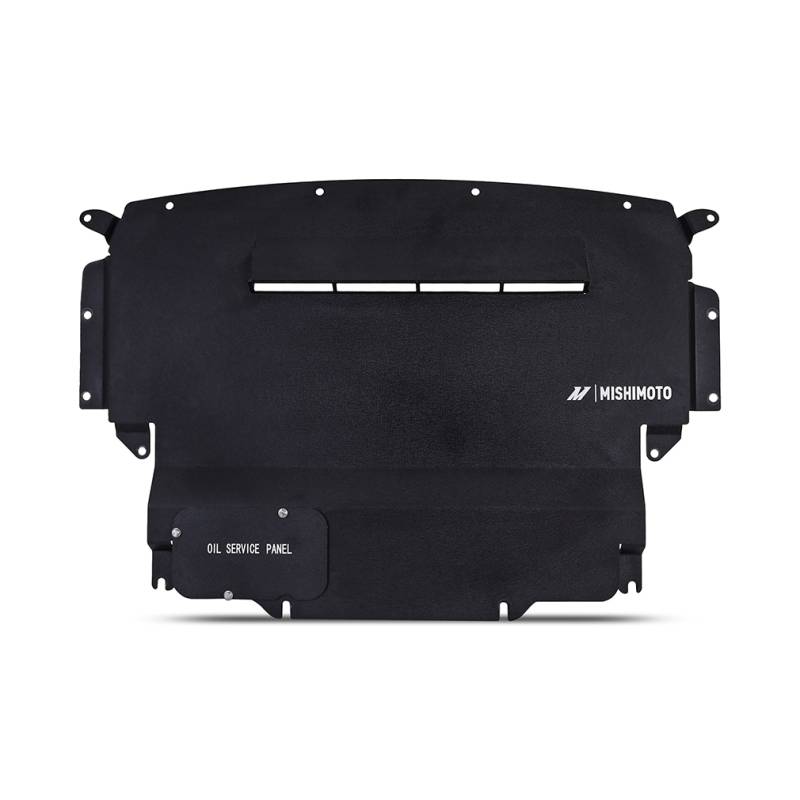

Your Z's factory splash shield is just that a splash shield. It works to keep water and dirt out of the engine bay but that's about all it does well. One well placed bump or unlucky rock and you can say goodbye to the stock splash shield and if you're really unlucky your engine.----The Mishimoto skid plate for the 2023+ Nissan Z provides unmatched protection and performance. This skid plate is constructed from 3mm-thick powder-coated aluminum that's built to withstand impacts on the street or the track. Our skid plate attaches to the front fascia and extends all the way back to the subframe covering and protecting your Z's plastic oil pan. A large vent with pre-installed foam shrouding creates a low-pressure zone under the car to help draw heat out of the engine bay and pull fresh air through the cooling stack.----The one-piece construction and slotted rear mounting points make installation of the Mishimoto 2023+ Nissan Z skid plate is a breeze in about 30 minutes. Our skid plate reuses the factory mounting points eliminating the need for any drilling or cutting. Once installed maintenance is made fast and mess-free thanks to the removable service panel. Our service panel is installed with just three bolts and threaded inserts so there's no fumbling around with nuts or spacers for a simple oil change. Like all our 2023+ Nissan Z products this skid plate is backed by our Mishimoto Lifetime Warranty for a lifetime of protection.

ADDITIONAL INFORMATION

Attribute Set Name: ACC/Styling
Install Difficulty: 2
SellingPoint01: Direct fit for 2023+ Nissan Z without cutting or drilling
SellingPoint02: Protects engine bay and plastic oil pan from impacts and debris
SellingPoint03: 3mm-thick powder-coated aluminum offers maximum durability
SellingPoint04: Large vent extracts engine bay heat and improves airflow through cooling stack
SellingPoint05: Easy-access service panel makes maintenance fast and mess-free
SellingPoint06: Slotted rear mounting points make installation a one-person job
SellingPoint07: Threaded inserts make service panel install easy
SellingPoint08: One-piece construction improves rigidity and durability
SellingPoint09: Reuses factory mounting hardware to keep installation simple
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Nissan Z 3.0L V6 2023+
TechSpec Diameter (Inches): N/A
TechSpec Engine Codes: N/A
TechSpec Includes: (1) Aluminum Skid Plate--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes: Torque oil service panel bolts to 50-60in-lbs
TechSpec Length (Inches): N/A
TechSpec Material: Aluminum
TechSpec Maximum Pressure (PSI): N/A
TechSpec Maximum Temperature (F): N/A
TechSpec Minimum Yield Strength: N/A
TechSpec Note: N/A
TechSpec Overall Height (Inches): N/A
TechSpec Thread Size: N/A
TechSpec Ultimate Tensile Strength: N/A
TechSpec Weight (Ounces): N/A

FITMENT NOTES

2023-2024 Nissan Z
