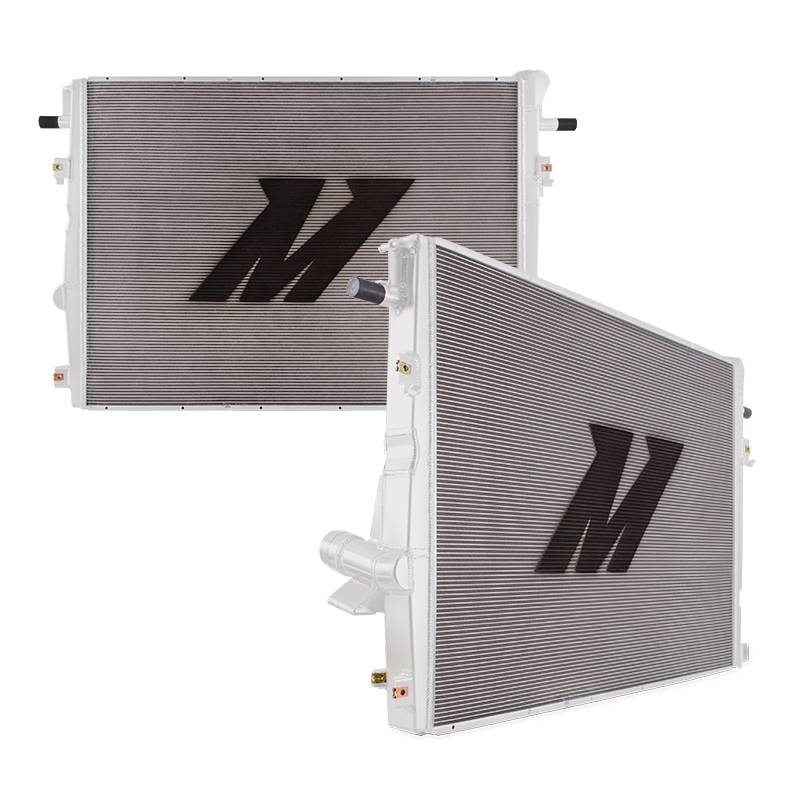

Mishimoto 11-16 Ford 6.7L Powerstroke Aluminum Primary Radiator

Ford 6.7L Powerstroke Aluminum Primary Radiator 2011-2016

The 6.7L Ford Powerstroke is plagued with radiator and cooling issues with no effective solution available. Upgrade your truck with the Mishimoto 6.7L Powerstroke Aluminum Primary Radiator to put an end to puddles of coolant under your truck. Mishimoto radiators are constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core. Our 6.7L radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7L Powerstroke Aluminum Primary Radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. As with all our products this radiator is protected by the Mishimoto Lifetime Warranty.

Direct fit for 2011-2016 Ford 6.7L Powerstroke
Extruded tubes with internal struts for increased strength and pressure tolerance
10-percent thicker core and 37-percent increase in coolant capacity
Patent pending
Mishimoto Lifetime Warranty

ADDITIONAL INFORMATION

Install Difficulty: 4
SellingPoint01: Direct fit for the 6.7L Powerstroke, 2011-2016
SellingPoint02: 37-percent increase in coolant capacity
SellingPoint03: 20-percent increase in fin area
SellingPoint04: 10-percent thicker core than factory
SellingPoint05: 100-percent brazed aluminum core
SellingPoint06: CNC-machined, factory-style, quick-disconnect inlet and outlet

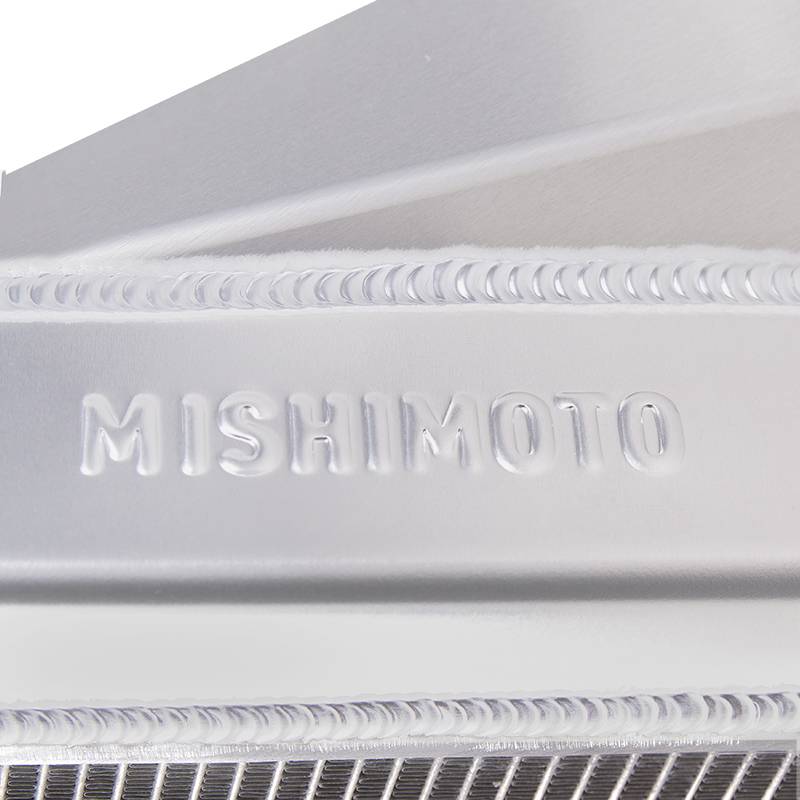

SellingPoint07: TIG-welded to perfection
SellingPoint08: Includes magnetic oil drain plug
SellingPoint09: Patent numberD717,218
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2011-2016 Ford F-250 w/ 6.7L Powerstroke--2011-2016 Ford F-350 w/ 6.7L Powerstroke--2011-2016 Ford F-450 w/ 6.7L Powerstroke--2011-2016 Ford F-550 w/ 6.7L Powerstroke
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 38.39
TechSpec Core Length (in): 27.76
TechSpec Core Thickness (in): 1.89
TechSpec DPI: 13230
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 11.61
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(4) M6 x 1.0 x 16mm Bolts--(12) Black Plastic Tree Clips--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 30.2
TechSpec Overall Length (in): 48.9
TechSpec Overall Width (ins): 8
TechSpec Rows: 2

FITMENT NOTES

2011-2016 Ford F-250 Super Duty
2011-2016 Ford F-350 Super Duty
2011-2016 Ford F-450 Super Duty
2011-2016 Ford F-550 Super Duty
