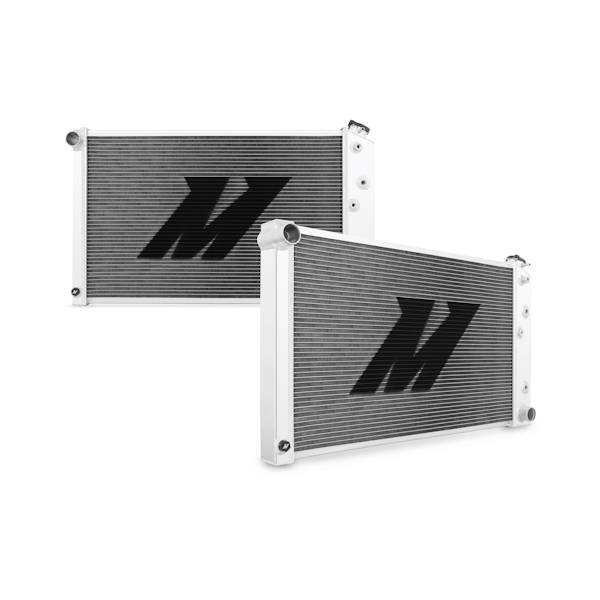

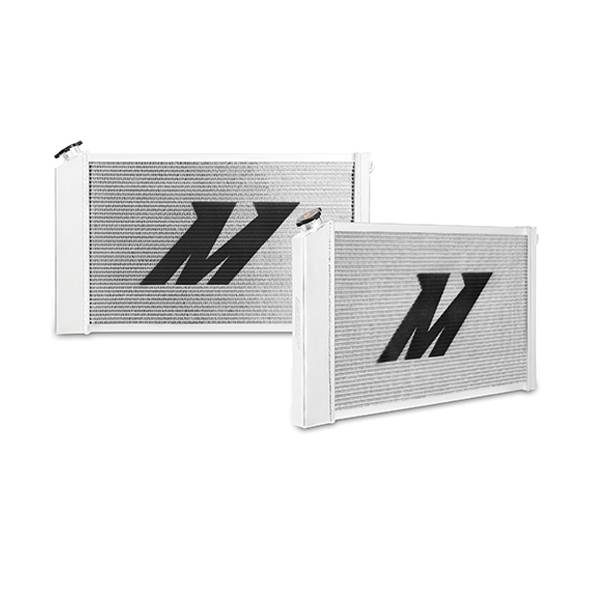

Mishimoto 70-81 Chevy Camaro Aluminum Radiator

MMRAD-CAM-70
Limited Supply: only 2 remaining
Availability: Item usually ships within 24 hours
Was: $432.00
Sale: $392.95
Save: 9%
Save: $39.05
Qty:
Free Shipping!

Description

Chevrolet Camaro 2-Row Performance Aluminum Radiator 1970 - 1981

The Mishimoto performance aluminum radiator for the Chevrolet Camaro / Pontiac Firebird is an ideal upgrade to the OEM radiator. Whether you are cruising to a car show or slinging rubber at the strip an efficient cooling system is a must. The Mishimoto Chevrolet Camaro aluminum radiator features a 2 row core and high pressure radiator cap to keep your stock or modified small block temperatures in check. Not only will this radiator improve engine cooling but the incorporated transmission cooler will provide significant reductions in fluid temperatures. The Mishimoto Chevrolet Camaro radiator is crafted from high quality TIG welded aluminum with polished end tanks. This aluminum radiator is a direct fit unit and will not require any trimming or cutting and is backed by the Mishimoto lifetime warranty.

Direct fit for the 1970-1981 Chevrolet Camaro w/ L6 and V8 engines
Full aluminum radiator featuring robust TIG-welded construction
Massive three-row 2.05" thick brazed aluminum core provides efficient fluid temperature reduction on the street or strip
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
Polished aluminum end tanks enhance engine bay aesthetics
Includes Mishimoto M12 x 1.5" Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty

ADDITIONAL INFORMATION

Install Difficulty: 3
SellingPoint01: Direct fit for the 1970-1981 Chevrolet Camaro w/ L6 and V8 engines
SellingPoint02: Full aluminum radiator featuring robust TIG-welded construction
SellingPoint03: Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip
SellingPoint04: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint05: Polished aluminum end tanks enhance engine bay aesthetics
SellingPoint06: Includes Mishimoto M12 x 1.25-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1970-1981 Chevrolet Camaro--1970-1981 Chevrolet Camaro
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 16.5
TechSpec Core Length (in): 26.2
TechSpec Core Thickness (in): 1.41
TechSpec DPI: 162
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 4.87
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--(2) 1/8-inch NPT Plugs--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.57
TechSpec Overall Height (in): 31
TechSpec Overall Length (in): 18.75
TechSpec Overall Width (ins): 4.2
TechSpec Rows: 2

FITMENT NOTES

1969-1981 Chevrolet Camaro
1972-1974 Chevrolet G20 Van
1972-1974 GMC G15/G1500 Van
1972-1974 GMC G25/G2500 Van
1972-1974 GMC G35/G3500 Van
1973-1974 Chevrolet Blazer
1973-1974 Chevrolet C10 Pickup
1973-1974 Chevrolet C10 Suburban
1973-1974 Chevrolet C20 Pickup
1973-1974 Chevrolet C30 Pickup
1973-1974 Chevrolet G10 Van
1973-1974 Chevrolet G30 Van
1973-1974 Chevrolet K10 Pickup
1973-1974 Chevrolet K20 Pickup
1973-1974 Chevrolet K30 Pickup
1973-1974 GMC C15/C1500 Pickup
1973-1974 GMC C25/C2500 Pickup
1973-1974 GMC C25/C2500 Suburban
1973-1974 GMC C35/C3500 Pickup
1973-1974 GMC K15/K1500 Pickup
1973-1974 GMC K25/K2500 Pickup
1973-1974 GMC K25/K2500 Suburban
1973-1974 GMC K35/K3500 Pickup
1973-1975 Chevrolet C20 Suburban
1973-1975 Chevrolet K20 Suburban
1973-1980 GMC Jimmy
1974-1974 GMC C15/C1500 Suburban
1975-1975 Buick Apollo
1975-1975 GMC C25 Suburban
1975-1976 GMC G15
1975-1976 GMC K25 Suburban
1975-1977 Pontiac Ventura
1975-1978 GMC C15
1975-1978 GMC C25
1975-1978 GMC C35
1975-1978 GMC G25
1975-1978 GMC G35
1975-1978 GMC K15
1975-1978 GMC K25
1975-1978 GMC P15
1975-1978 GMC P25
1975-1978 GMC P35
1975-1979 Buick Skylark
1975-1979 Chevrolet G30
1975-1979 Chevrolet Nova
1975-1979 Oldsmobile Omega
1975-1980 Chevrolet C10
1975-1980 Chevrolet C20
1975-1980 Chevrolet C30
1975-1980 Chevrolet G10
1975-1980 Chevrolet G20
1975-1980 Chevrolet K20
1975-1980 Chevrolet K5 Blazer
1975-1980 Chevrolet P10
1975-1980 Chevrolet P20
1975-1980 Chevrolet P30
1976-1979 Cadillac Seville
1976-1980 Chevrolet K10
1977-1978 GMC K35
1977-1980 Buick Estate Wagon
1977-1980 Chevrolet K30
1977-1981 Buick Century
1978-1979 Pontiac Phoenix
1978-1980 Buick Electra
1978-1980 Pontiac Grand Am
1978-1981 Oldsmobile Cutlass
1978-1981 Pontiac Grand LeMans
1978-1981 Pontiac LeMans
1978-1983 Chevrolet Malibu
1978-1987 Buick Regal
1978-1987 Chevrolet El Camino
1978-1987 GMC Caballero
1978-1987 Oldsmobile Cutlass Salon
1978-1987 Pontiac Gra

Compatible Vehicles

Details

Shipping Information

  • Item Requires Shipping
  • 21.0 lbs.
  • W9.0000” x H24.0000” x L29.0000”
