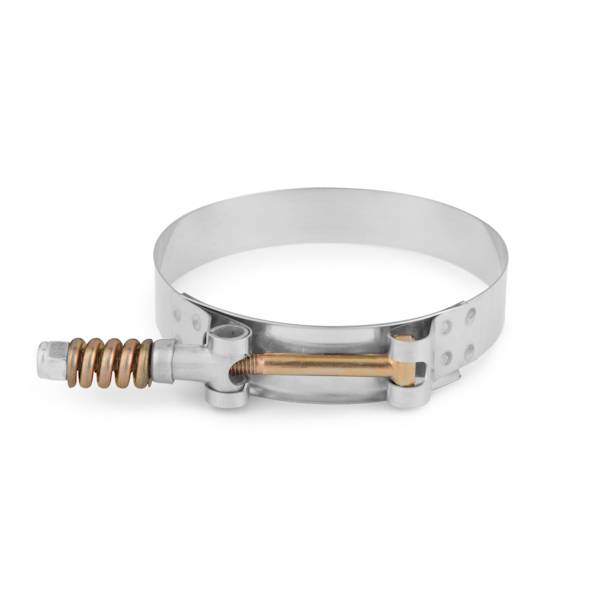

Mishimoto 4 Inch Stainless Steel Constant Tension T-Bolt Clamp

Stainless Steel Constant Tenstion T-Bolt Clamp 3.74in - 4.06in (95MM - 103MM)

Mishimoto's Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 3.74in - 4.06in (95mm - 103mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration.Like all Mishimoto clamps this 3.74in - 4.06in (95mm - 103mm) constant tension T-bolt clamp is backed by our Mishimoto Lifetime Warranty.

Stainless steel construction resists corrosion
Spring loaded for consistent holding power
Locking nut keeps clamp from loosening
More durable than traditional worm clamps
Mishimoto Lifetime Warranty

ADDITIONAL INFORMATION

Install Difficulty: 1
OptionLabel: Stainless Steel
SellingPoint01: Securely clamps pipes, couplers, and hoses with an outer diameter from 3.74-in-4.06-in (95mm-103mm)
SellingPoint02: Constant tension spring maintains clamping pressure through a wide range of temperatures
SellingPoint03: Included self-locking nut prevents loosening with movement and vibration
SellingPoint04: Stainless steel construction resists corrosion longer than zinc-plated clamps
SellingPoint05: Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
SellingPoint06: Clamps sold individually
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Band Width (in): 0.75
TechSpec Clamp Style: Constant Tension T-Bolt Clamp
TechSpec Includes: (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp--Mishimoto Lifetime Warranty
TechSpec Material: Stainless Steel
TechSpec Maximum Clamp Diameter (in): 4.06
TechSpec Minimum Clamp Diameter (in): 3.74
TechSpec Note: If using this clamp, we recommend purchasing: --MMICP-SS-25U----MMICP-SS-3U
TechSpec Recommended Tightening Torque: 27 in-lbs (3 NM)
TechSpec SAE Number: N/A

FITMENT NOTES

None
