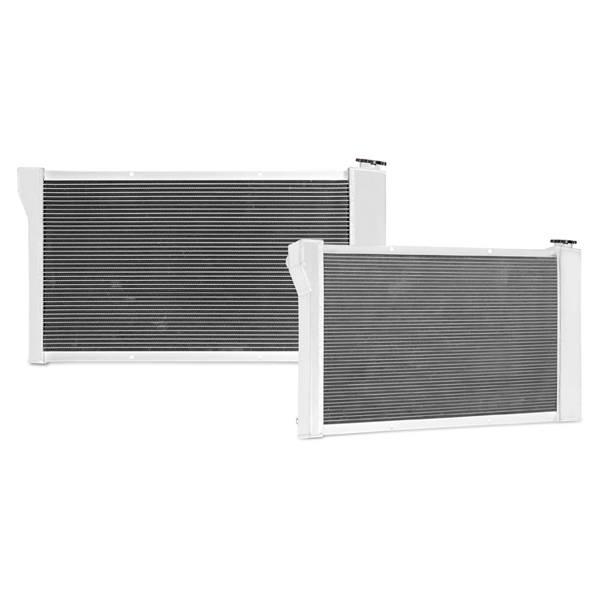

Mishimoto 67-72 GM C/K Truck X-Line Performance Aluminum Radiator

MMRAD-CK-67X
Limited Supply: only 1 remaining
Availability: Item usually ships within 24 hours
Was: $420.00
Sale: $381.95
Save: 9%
Save: $38.05
Qty:
Free Shipping!

Description

Chevrolet Chevelle X-Line Performance Aluminum Radiator 1965-1967

An ideal upgrade for the brittle stock radiator the Mishimoto 1967--1972 GM C/K Truck X-Line Performance Aluminum Radiator provides your truck with enhanced reliability and improved cooling efficiency. Whether you use your classic for daily driving or take it to the track don't overlook the importance of installing an upgraded classic truck radiator in your engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. This GM C/K truck radiator is manufactured using durable aircraft-quality aluminum end tanks precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This classic car radiator also includes a magnetic oil drain plug which effectively removes metal fragments circulating in the cooling system. As with all our products every GM C/K truck radiator includes the Mishimoto Lifetime Warranty ensuring superior product quality and craftsmanship.

All-aluminum construction provides greater heat and pressure tolerance better heat dissipation increased durability improved cooling efficiency and improved structural rigidity
3-row brazed aluminum core with TIG-welded end tanks
Increased coolant capacity and optimal heat dissipation
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
Billet aluminum fill neck
Includes magnetic drain plug to capture metallic debris and fragments in your cooling system
Mishimoto Lifetime Warranty

ADDITIONAL INFORMATION

Install Difficulty: N/A
SellingPoint01: All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
SellingPoint02: 3-row brazed aluminum core with TIG-welded end tanks
SellingPoint03: Increased coolant capacity and optimal heat dissipation
SellingPoint04: Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
SellingPoint05: Billet aluminum fill neck
SellingPoint06: Includes magnetic drain plug to capture metallic debris and fragments in your cooling system
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1967-1972 GM C/K Pickup 250 ci (4.1L) L6, 283ci (4.6L) V8, 292ci (4.8L) L6, 307ci (5.0L) V8, 327ci (5.4L) V8, 350ci (5.7L) V8, 396ci (6.5L) V8, 402ci (6.6L) V8--1969-1972 Chevy Blazer/GMC Jimmy 250ci (4.1L) L6, 292 (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V81967-1971 GM G Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8--1968-1979 GM P Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8, 402ci (6.6L) V8
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 16.1
TechSpec Core Length (in): 28.3
TechSpec Core Thickness (in): 2.5
TechSpec DPI: 369
TechSpec Drain Plug Thread Size: 1/4-18 NPT
TechSpec Engine Codes: 250ci (4.1L) L6--292ci (4.8L) L6--283ci (4.6L) V8--307ci (5.0L) V8--327ci (5.4L) V8--350ci (5.7L) V8--402ci (6.6L) V8
TechSpec Fluid Capacity (gal): 4.87
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.75
TechSpec Overall Height (in): 34.1
TechSpec Overall Length (in): 19.3
TechSpec Overall Width (ins): 6.5
TechSpec Rows: 3

FITMENT NOTES

1967-1972 Chevrolet C10 Suburban
1967-1972 Chevrolet C20 Suburban
1967-1972 Chevrolet G20 Van
1967-1972 Chevrolet K10 Suburban
1967-1972 Chevrolet K20 Suburban
1969-1972 Chevrolet Blazer
1975-1979 Chevrolet P10
1975-1979 Chevrolet P20
1975-1979 Chevrolet P30

Compatible Vehicles

Details

Shipping Information

  • Item Requires Shipping
  • 24.0 lbs.
  • W8.0000” x H36.0000” x L22.0000”
  • Free Shipping!
