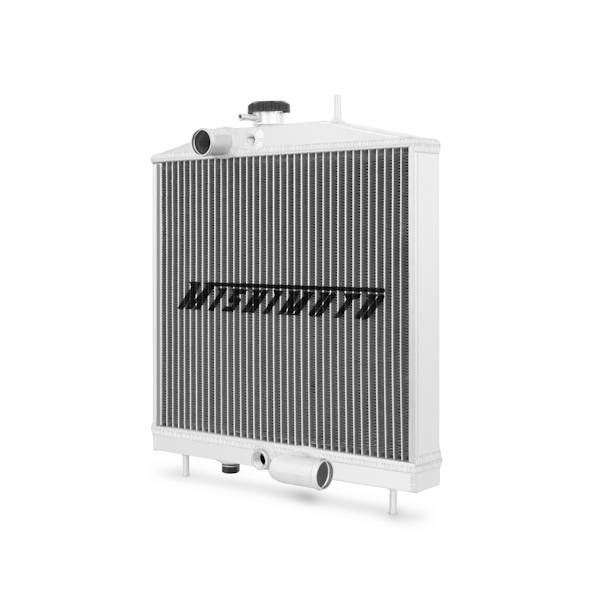

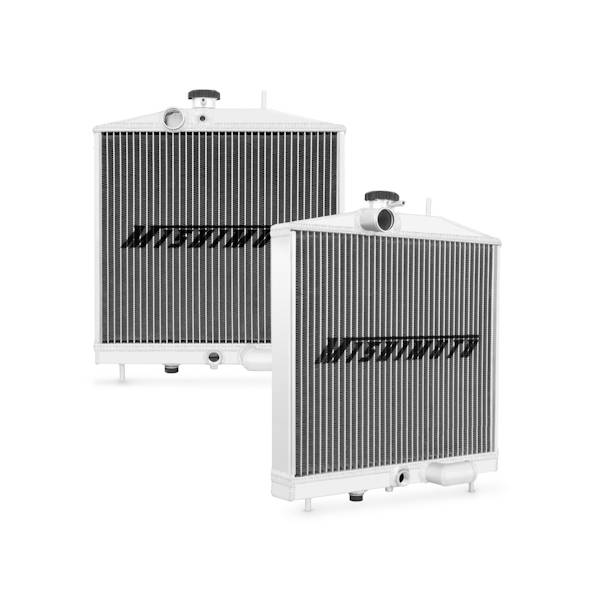

Mishimoto 96-00 Honda Civic K-Series Swap Aluminum Radiator

Honda Civic K-Series Swap Aluminum Radiator 1996-2000

Mishimoto is proud to release a brand new radiator for EK chassis Civics with K-Series engine swaps.Our half size radiator is designed specifically for your swapped vehicle with high performance driving in mind.This radiator is a direct drop in unit that does not require any trimming drilling or mount alterations.The Mishimoto radiator will simplify a cooling solution for your K-swap and includes ports for the fan switch and coolant temperature sensor. All Mishimoto radiators include a high pressure 1.3 bar Mishimoto radiator cap and a lifetime warranty.

Designed specifically for the 1996-2000 Honda Civic EK chassis with K-series engine swap
Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Provides a bolt-in cooling solution simplifying the engine swap process
Full aluminum construction with durable TIG-welded end tanks
Features a two-row 1.57-in thick efficient brazed aluminum core
Substantial fluid capacity and optimal heat dissipation
Provides efficient heat exchange for naturally aspirated and forced induction vehicles
Includes threaded fan switch port to function with stock sensor
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
Includes Magnetic Drain

ADDITIONAL INFORMATION

Install Difficulty: 3
SellingPoint01: Designed specifically for the 1996-2000 Honda Civic EK chassis with K-series engine swap
SellingPoint02: Provides a bolt-in cooling solution, simplifying the engine swap process
SellingPoint03: Full aluminum construction with durable, TIG-welded end tanks
SellingPoint04: Features a two-row, 1.57-in thick, efficient brazed aluminum core
SellingPoint05: Substantial fluid capacity and optimal heat dissipation
SellingPoint06: Provides efficient heat exchange for naturally aspirated and forced induction vehicles
SellingPoint07: Includes threaded fan switch port to function with stock sensor
SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint09: Includes Magnetic Drain
SellingPoint10: Plug to capture any metallic debris/fragments in your cooling system
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1996-2000 Honda Civic EK
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 12.82
TechSpec Core Length (in): 14.96
TechSpec Core Thickness (in): 1.57
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: K20
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 15.12
TechSpec Overall Length (in): 17.99
TechSpec Overall Width (ins): 4.02
TechSpec Rows: 2

FITMENT NOTES

1996-2000 Honda Civic
