Mishimoto 11-17 BMW N20/N26 Baffled Oil Catch Can Kit - Black

BMW N20/N26 Baffled Oil Catch Can Kit 2011-2017

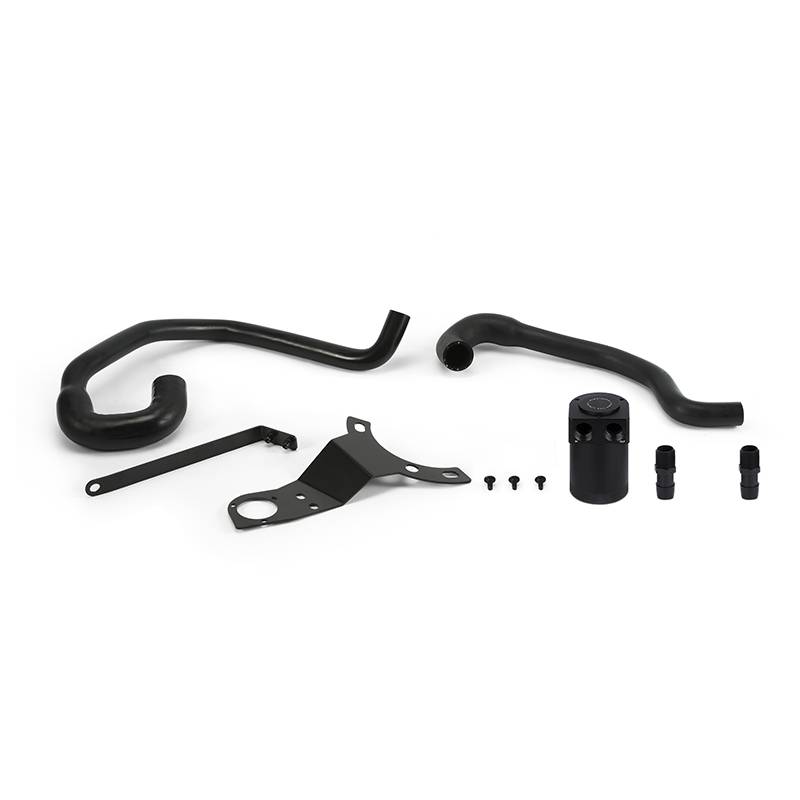

The Mishimoto BMW N20/N26 Baffled Oil Catch Can is designed and engineered to reduce carbon buildup a common issue with the direct fuel injection N20 and N26 engines. The Mishimoto BMW N20/N26 catch can kit uses the proven engineering from the Mishimoto 2-Port Compact Baffled Oil Catch Can with a bronze filter and internal baffled to better separate the oil from the crankcase vapors. The engineers at Mishimoto designed a CNC-machined lid which features large inlet/outlets in order to match the inner dimension of the CCV hose. This baffled oil catch can will defend your intercooler intake system and VANOS system from oil-blowby and help maintain proper octane levels to reduce potential detonation. The kit comes with two direct-fit hoses which require no modification to the engine cover and one direct fit mounting bracket that not only is extremely easy to install but also mounts the can in a serviceable location! Two CNC-machined aluminum 3/4in barb fittings connect the hoses to the can. Like all of our products this baffled catch can kit comes with the Mishimoto Lifetime Warranty! Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First our catch cans are not heated. This means that all of the blow-by is able to condense in the can including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans you won't want that draining back into your oil either.

Direct fit for the N20/N26 equipped BMW 2012-2017 2/3/4-series
Helps reduce carbon buildup on intake valves
Patent pending billet 6061 aluminum can sealed with Viton O-rings
Catch can has a 3 oz. capacity for longer servicing intervals
Mishimoto Lifetime Warranty

ADDITIONAL INFORMATION

Color: Black
Finish: Anodized
Install Difficulty: 3
Installation Difficulty: 3
Material: 6061 Aluminum
Prop 65 (C, R or CR): CR
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 Yes/No: Yes
SellingPoint01: Single 2-Port Compact Baffled Oil Catch Can with application-specific lid mounts in line with the CCV system to separate oil particles using 50 micron bronze filter
SellingPoint02: Application-specific bracket mounts the can in a serviceable location
SellingPoint03: Direct fit hoses allow for installation with no modification
SellingPoint04: Application-specific lid designed so fitting size matches CCV line size
SellingPoint05: Billet 6061 aluminum sealed can
SellingPoint06: Defends intercooler, intake system, and VANOS system from oil blow-by
SellingPoint07: Helps maintain proper octane levels to reduce potential detonation
SellingPoint08: Filters and can are fully serviceable
SellingPoint09: Internal air diverter turbulates air longer to improve oil separation
SellingPoint10: Patent No. US D966,372 S
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Catch Can Diameter (in): N/A
TechSpec Chassis Codes: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: N/A
TechSpec Height (in): N/A
TechSpec Includes: N/A
TechSpec Inlet: N/A
TechSpec Installation Notes: N/A
TechSpec Material: N/A
TechSpec Note: N/A
TechSpec Outlet: N/A
Title: Mishimoto BMW N20/N26 Baffled Oil Catch Can Kit, 2011-2017

FITMENT NOTES

2012-2016 BMW 328i
2012-2016 BMW 328i xDrive
2013-2015 BMW 320i
2013-2015 BMW 320i xDrive
2014-2016 BMW 228i
2014-2016 BMW 328i GT xDrive
2014-2016 BMW 428i
2014-2016 BMW 428i xDrive
2015-2016 BMW 228i xDrive
2015-2016 BMW 428i Gran Coupe
2015-2016 BMW 428i xDrive Gran Coupe
