Mishimoto 2015 Subaru WRX Top-Mount Intercooler Kit - Powder Coated Black & Wrinkle Red Pipes

Subaru WRX Performance Top Mount Intercooler and Charge-Pipe Kit 2015-2021

Are you looking for a way to reduce high intake temperatures on your stock or modified 2015-2021 Subaru WRX? The solution is the Mishimoto direct-fit 2015-2021 Subaru WRX Race top-mount intercooler kit engineered specifically for your highly modified 2015-2021 Subaru WRX. The stock 2015-2021 Subaru WRX intercooler is prone to heat soak during repeated wide open throttle pulls and during track use. Mishimoto engineers spent months designing the 2015-2021 Subaru WRX parts and testing this top-mount intercooler to ensure optimum performance on your highly modified WRX. This intercooler utilizes durable cast aluminum end tanks TIG-welded to a highly efficient dense bar-and-plate core. The Mishimoto 2015-2021 Subaru WRX intercooler has a 4? thick core and a total volume of 625 cubic inches making it one of the largest top-mount intercoolers you can buy.; Thanks to this volume and a very dense offset fin pitch we are able to optimize heat transfer and support your vehicle from stock up to 500 whp. This WRX intercooler endured rigorous testing showing a 35?F temperature drop as well as a 15 whp and 8 wtq bolt-on power increase for our test vehicle equipped with a Mishimoto 2015-2021 Subaru WRX downpipe and stage 2 EcuTek tune. Installation is simple requires no modification to any parts in the engine bay and can be completed in under 1 hour. Included with this top-mount intercooler is Mishimoto's innovative 2015-2021 Subaru WRX charge-pipe utilizing a one-piece construction without the need for several couplers and clamps. An application-specific air splitter is included with the top-mount intercooler to help divert the maximum amount of air into your Mishimoto 2015-2021 Subaru WRX top-mount intercooler. The WRX top-mount intercooler kit also includes a new charge-pipe to intercooler hose an intercooler to throttle body hose and a new bypass valve hoses. These 2015-2021 Subaru WRX parts negate the need to gather supplies for installation and they ensure years of reliable servi

Direct fit for the 2015-2021 Subaru WRX
Comes with all necessary hardware clamps and brackets for an easy installation
Pre-marked area for NPT sensor
Cooler available in durable powder-coated Sleek Silver or Stealth Black finish
Mishimoto Lifetime Warranty
Provides 35 F temperature drop compared to stock intercooler on a stage 2 tune
Proven +15 whp and +8 wtq bolt-on power increase on a stage 2 tune
100% aluminum construction with durable cast end tanks TIG-welded to a highly efficient bar-and-plate core
TIG-welded to a highly efficient bar-and-plate core
Intercooler core designed for maximum cooling efficiency and minimal pressure drop
Includes larger air duct designed to provide optimal airflow to the Mishimoto intercooler core
Includes the Mishimoto intercooler charge-pipe for maximum airflow and power capability
Includes new BPV hoses hot side coupler and silicone throttle body hose

ADDITIONAL INFORMATION

CARB EO Number: D-759
Install Difficulty: 3
OptionLabel: Black Intercooler, Red Pipe
SellingPoint01: Direct fit for the 2015-2021 Subaru WRX
SellingPoint02: Provides 35 F temperature drop compared to stock intercooler on a stage 2 tune
SellingPoint03: Proven 15 whp and 8 wtq bolt-on power increase on a stage 2 tune
SellingPoint04: 100-percent aluminum construction with durable cast end tanks TIG-welded to a highly efficient bar-and-plate core
SellingPoint05: TIG-welded to a highly efficient bar-and-plate core
SellingPoint06: Intercooler core designed for maximum cooling efficiency and minimal pressure drop
SellingPoint07: Includes larger air duct designed to provide optimal airflow to the Mishimoto intercooler core
SellingPoint08: Includes the Mishimoto intercooler charge-pipe for maximum airflow and power capability
SellingPoint09: Includes new BPV hoses, hot side coupler, and silicone throttle body hose
SellingPoint10: Comes with all necessary hardware, clamps, and brackets for an easy installation
SellingPoint11: Pre-marked area for NPT sensor
SellingPoint12: Cooler available in durable powder-coated Sleek Silver or Stealth Black finish
SellingPoint13: Mishimoto Lifetime Warranty
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2015-2021 WRX--2014-2018 Forester XT
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: VA
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): 4
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: FA20DIT

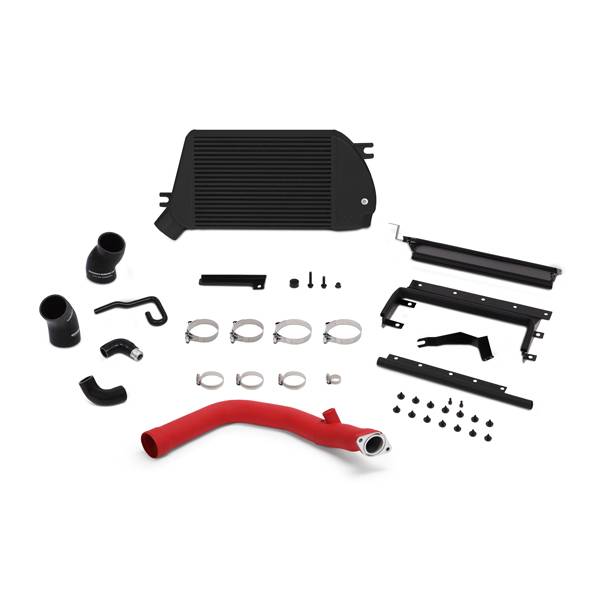

TechSpec Includes: (1) Bar-and-Plate Intercooler--(1) Optional Charge-Pipe--(1) Intercooler Mounting Bracket--(1) Air Diverter with Attached Rubber Gaskets--(1) Charge-Pipe to Intercooler Hose--(1) Intercooler to Throttle Body Hose--(3) Bypass Valve Hoses--(2) 3-in T-bolt Clamp--(2) 3.5-in T-bolt Clamp--(4) Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.5
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
TechSpec Maximum Recommended Boost Pressure (PSI): 35
TechSpec Maximum Recommended Horsepower: 450
TechSpec Note: This kit is rated for 300-450 whp with maximum limits of approximately 500 whp, or 35 PSI of turbo boost. Exceeding that horsepower or pressure limit may require a larger front-mount intercooler.----Tuning is not necessary after installing our top-mount intercooler and charge-pipe, but you will see optimal performance if tuning is performed after the intercooler is installed.----The top-mount intercooler will not fit with the stock engine cover due to its larger size.
TechSpec Outlet (in): 3
TechSpec Overall Height (in): 10
TechSpec Overall Length (in): 24
TechSpec Overall Width (in): 5
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 24.5

FITMENT NOTES

2014-2018 Subaru Forester
2015-2021 Subaru WRX
