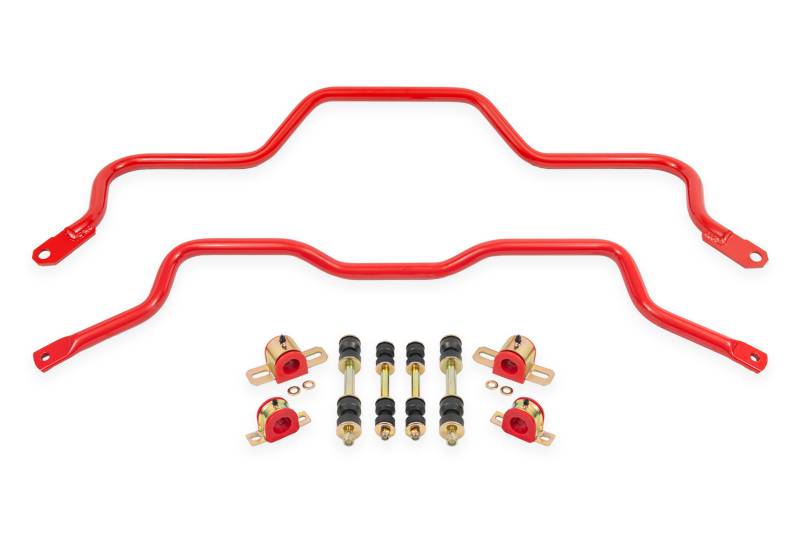

BMR 93-02 F-Body Front & Rear Sway Bar Kit w/ Bushings - Red

BMR Suspension designed the SB026 sway bar kit for street performance, autocross, and road race applications.

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspension?s SB026 front and rear sway bar kit was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 35mm (front) and 25mm (rear) DOM tubing, the SB026 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The sway bar mounts to the car using polyurethane bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The steel sway bar mounting brackets are reinforced to minimize deflection.

Fits 1993-2002 GM F-body
Designed for street performance, autocross, and road race applications
Dramatically reduces body roll
129% increase (front), 149% increase (rear) in sway bar rate
Cold formed to better resist torsional fatigue
Manufactured from 35mm (front), and 25mm (rear) heavy-wall DOM tubing for increased strength
88-durometer, greasable polyurethane bushings
Zinc-plated inner sleeves
Durable powdercoat finish
3-4 hour installation time
Proudly designed in the U.S.A.
Proudly made in the U.S.A.

ADDITIONAL INFORMATION

BMR 93-02 F-Body Front & Rear Sway Bar Kit w/ Bushings - Red

Front Sway Bar Adjustable: Fixed
Front Sway Bar Diameter (in): 1.375 inches
Front Sway Bar Diameter (mm): 35.0 mm
Front Sway Bar Type: Hollow
Mounting Hardware Included: Yes
Position: Front and rear
Quantity: Sold as a kit
Rear Sway Bar Adjustable: Fixed
Rear Sway Bar Diameter (in): 1.00 inches
Rear Sway Bar Diameter (mm): 25.0 mm
Rear Sway Bar Type: Hollow
Sway Bar Finish: Red powdercoated
Sway Bar Material: Steel
Title: BMR Suspension SB026R Sway Bar Kit With Bushings, Front (SB001) And Rear (SB003)

FITMENT NOTES

1993-2002 Chevrolet Camaro
1993-2002 Pontiac Firebird
